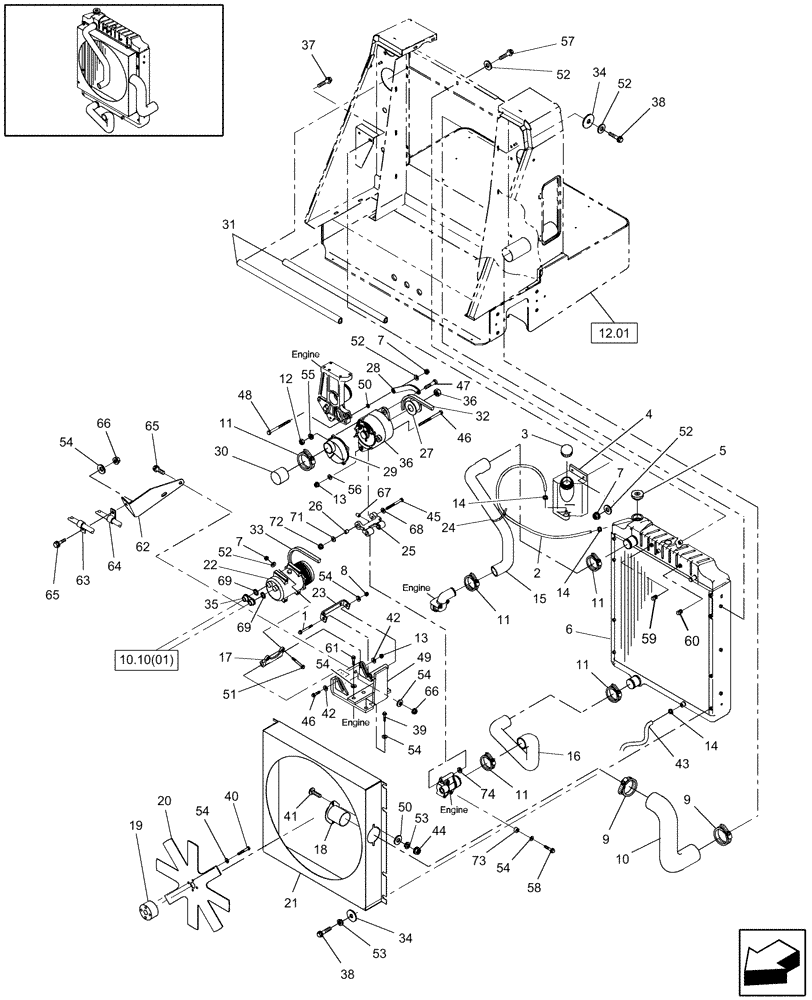

Запчасти Case IH WDX1202 (02.04[3]) - RADIATOR (02) - ENGINE EQUIPMENT

1

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

2

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

1шт.

3

86507190

CAP

1шт.

4

86509554

TANK

1шт.

5

3957211

RADIATOR CAP

1шт.

6

87352258

RADIATOR

1шт.

7

43362

NUT,M8 x 1.25, Cl 10

8шт.

8

88902

NUT,3/8"-16

1шт.

9

82012731

HOSE CLAMP,77mm - 95mm, Worm Gear

2шт.

10

86623881

FLEXIBLE HOSE,76.20 mm ID x 353.20 mm, SAE J20R4 Class D1

1шт.

11

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

5шт.

12

86509265

NUT,M5, Cl 10

4шт.

13

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

14

82039341

CLAMP,12mm - 22mm

3шт.

15

87031035

RADIATOR HOSE

Upper

1шт.

Prior To 11/15/06

1шт.

15

87585679

HOSE

Hose, Radiator, Upper

1шт.

From 11/15/06

1шт.

16

86638989

RADIATOR HOSE,50.80 mm ID, 55.00 mm ID x 386.6,280.5,194.8 mm, SAE 20R4 CLASS D1

Lower

1шт.

17

87054244

MOUNTING PARTS

1шт.

18

86599338

TUBE

1шт.

19

87031374

SPACER

Fan

1шт.

20

87416399

FAN

1шт.

21

87031368

SHROUD ASSY.

Fan

1шт.

22

87037134

COMPRESSOR

A/C

1шт.

Prior To 11/15/06

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1202 (3/05-8/07), Reman for New PN 87037134

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

22

87363860

AIRCOND. COMPRESSOR

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1202 (3/05-8/07), Reman for New PN 87363860

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

From 11/15/06

1шт.

22

87028237

OIL

Oil, Compressor

1шт.

From 11/15/06

1шт.

22

87058852

CLUTCH

1шт.

Services 87037134

1шт.

22

87058853

AIRCOND. COMPRESSOR

Less Clutch

1шт.

Services 87037134

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1202 (3/05-8/07), Reman for New PN 87058853

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

23

87031430

CHANNEL

1шт.

24

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

25

87750383

MOUNT

Bracket

1шт.

26

87752605

SPACER

1шт.

27

86976071

PULLEY,66mm OD

Alternator

1шт.

28

86974891

BRACKET

1шт.

29

86976072

COVER

1шт.

30

86976068

COVER

Screen, Alternator

1шт.

31

87023973

SEAL

D-Strip, Neoprene, 5 Ft.

1шт.

Cut to fit

1шт.

32

86974844

V-BELT,1700.00 mm L, 8 Ribs

Poly

1шт.

33

87031438

V-BELT,14.24 mm W x 1015.00 mm L, 4 Ribs

Poly

1шт.

Prior To 11/15/06

1шт.

33

87545997

V-BELT,14.24 mm W, 4 Ribs

1шт.

From 11/15/06

1шт.

34

9846522

WASHER

M8, Fender

14шт.

35

87017228

MANIFOLD

1шт.

Prior To 11/15/06

1шт.

36

9833744

ALTERNATOR

135 Amp; Refer To Component Breakdown, Fig. 02.01[03]

1шт.

37

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

38

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

39

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

40

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

4шт.

41

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

42

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

43

86520362

FLEXIBLE HOSE,0.38" ID x 60.00", SAE 30R7

Cut to Fit

1шт.

44

9823743

FLANGE NUT,Flg, 5/16"-18

2шт.

45

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

1шт.

46

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

47

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

48

86512172

BOLT,Hex Flg, 5/16" - 18 x 2"

1шт.

49

87031434

BRACKET

1шт.

50

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

51

280444

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

4шт.

52

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

53

80681

LOCK WASHER,5/16"

10шт.

54

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

55

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

56

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

57

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

58

120074

BOLT,Hex, M10 x 90, 8.8

1шт.

59

80775

DRAIN PLUG,1/4" - 18 NPT

Pipe, Square Hd., 1/4" NPT

1шт.

Early Production Only

1шт.

60

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1шт.

Early Production Only

1шт.

61

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

62

87350846

ANGLE

1шт.

63

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Prior To 11/15/06

1шт.

63

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

From 11/15/06

1шт.

64

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

1шт.

65

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

66

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.

67

143541

SPACER

1шт.

Used W/Bracket 87341447

1шт.

68

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

68

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

69

87368248

O-RING,21.8mm ID x 2.4mm Width

2шт.

70

34187

WASHER

1шт.

From 11/15/06

1шт.

71

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

72

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

Prior To 11/15/06

1шт.

72

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

From 11/15/06

1шт.

73

143541

SPACER

1шт.

74

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
