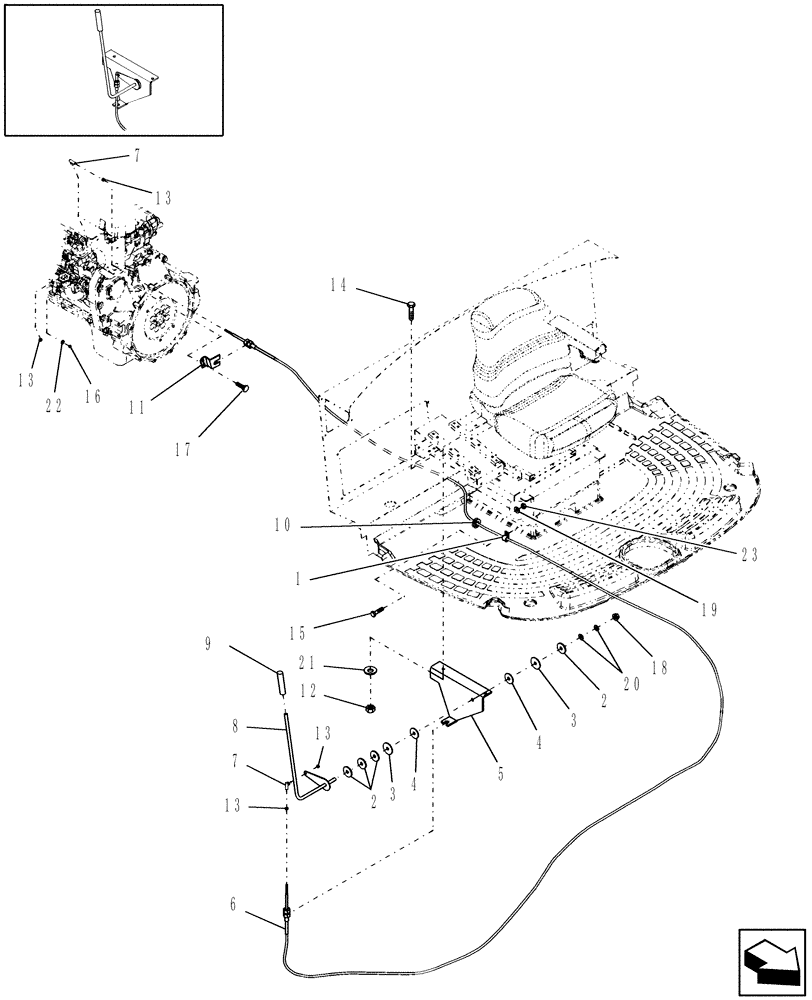

Запчасти Case IH WDX1202 (10.15) - THROTTLE CONTROL (10) - OPERATORS PLATFORM/CAB

1

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

1шт.

2

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

3

87017225

WASHER

Nylon, 1/2" x 2-1/4"

2шт.

4

87017224

WASHER

Nylon, 1/2" x 2"

2шт.

5

87017223

SUPPORT

1шт.

6

87017222

CABLE ASSY.,2971.8mm L

1шт.

7

103557

BALL JOINT

2шт.

8

87017229

LEVER ASSY.

1шт.

9

9842393

HANDLE GRIP

1шт.

10

86500924

GROMMET

1шт.

11

87017350

BRACKET

1шт.

12

825-1410

NUT,M10, Cl 8

2шт.

13

425-114

NUT,1/4"-28, G5

4шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

16

425-105

NUT,5/16"-18, G5

2шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

18

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

825-1406

NUT,M6, Cl 8

1шт.
