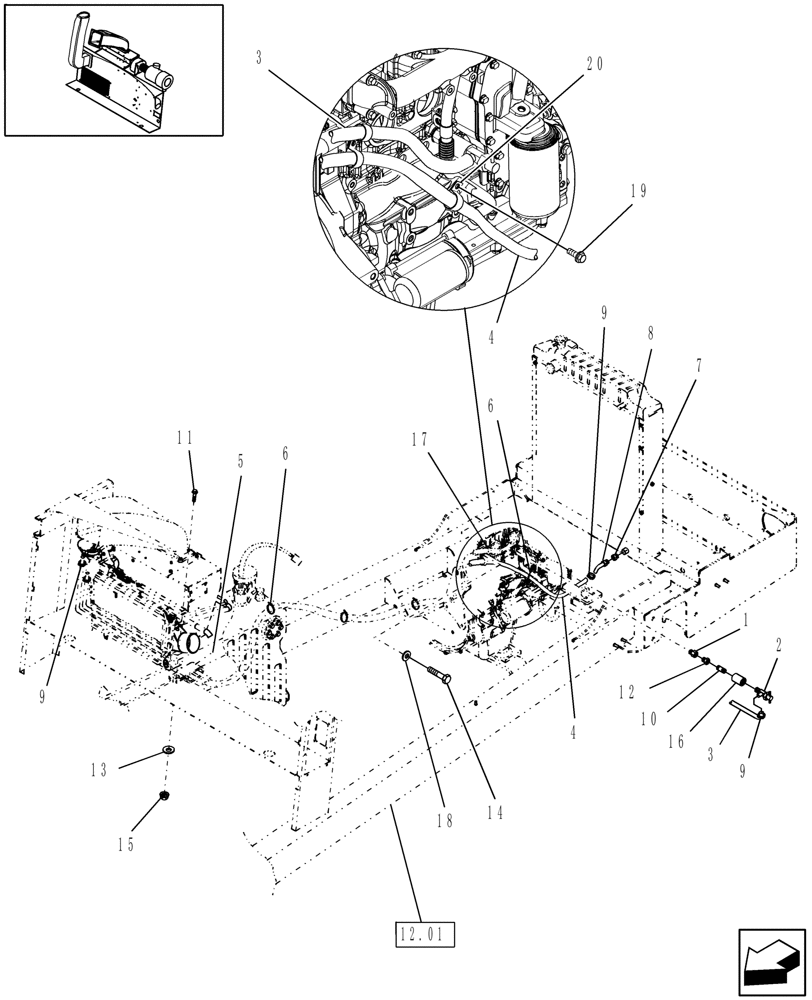

Запчасти Case IH WDX1202 (10.11[1]) - HEATER LINES (10) - OPERATORS PLATFORM/CAB

1

87012296

HYD CONNECTOR

1шт.

2

83961305

VALVE

1шт.

3

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply, 15.24 M Roll; 3.4 M Required

1шт.

Cut to fit

1шт.

4

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Return, 15.24 M Roll; 3.5 M Required

1шт.

Cut to fit

1шт.

5

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

6

249730

SECURING STRAP,8" L

6шт.

7

247636

ADAPTER

1шт.

8

134311

HYD CONNECTOR

1шт.

9

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

10

88093

NIPPLE

1шт.

11

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

12

87572

BUSHING

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

16

88982

COUPLING

1шт.

17

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

19

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

20

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
