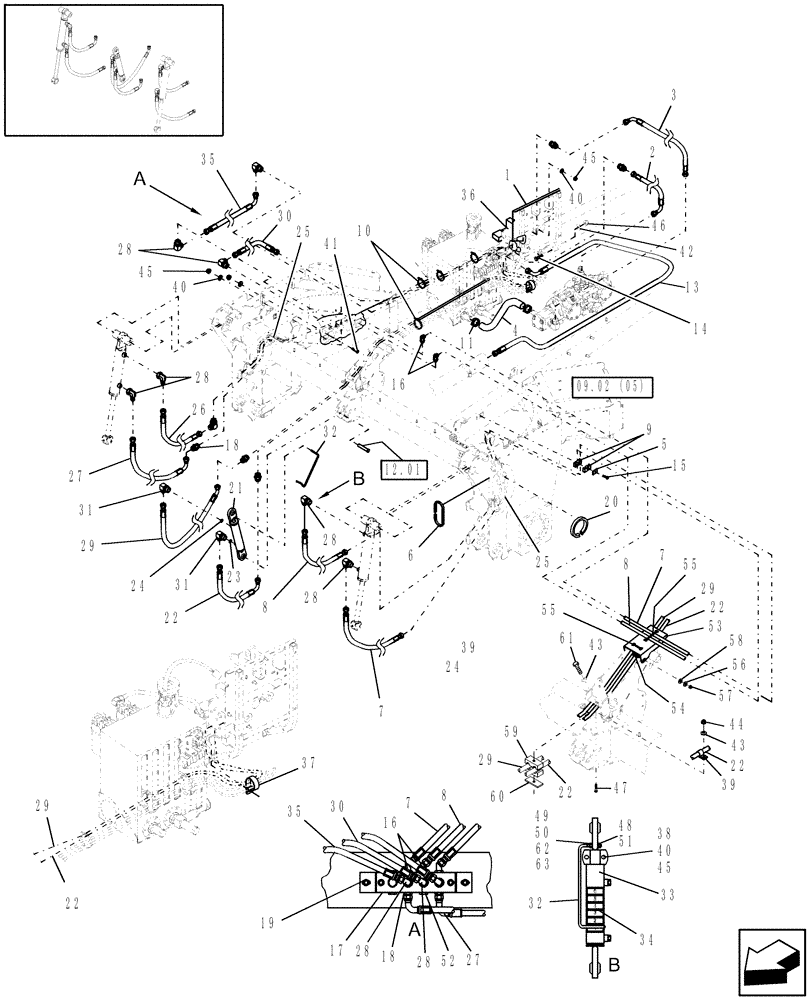

Справочник запчастей Case IH WDX1202 (09.02[2]) - HEADER LIFT HYDRAULICS (09) - IMPLEMENT LIFT со схемами

1

86729333

SUPPORT ASSY.

1шт.

2

86513649

FLEXIBLE HOSE,15.88mm ID x 774.7mm L

1шт.

3

87033603

HOSE ASSY.

1шт.

4

87573354

HOSE

Hose

1шт.

5

87053042

PLATE

2шт.

6

86516805

SOFT TRIM,31-3/4" L

L = 31-3/4"

2шт.

Cut to fit

1шт.

7

86979915

HOSE,12.70 mm ID x 3378.20 mm, SAE 100R16

1шт.

8

87033628

HOSE,0.50" ID x 144.50", SAE 100R6

1шт.

9

86563609

CLAMP

1шт.

10

86566989

CABLE TIE,208mm L

CABLE STRAP

12шт.

11

87301358

HOSE CLAMP,1.00/1.875 HD Worm

Clamp

2шт.

12

Reference Not Used

1шт.

13

87017787

HOSE ASSY.

1шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

Prior To PIN

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

From PIN

1шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

16

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: O-Ring

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

87011596

MANIFOLD

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

87011598

PLATE

1шт.

20

617215

MOLDING

72", Cut To Fit

2шт.

21

87024108

HYDRAULIC CYLINDER

Refer To Component Breakdown, Fig. 07.12

1шт.

21

87593870R

REMAN-HYD CYLINDER

WDX1202 CASE IH SELF PROPELLED WINDROWER TRACTOR (3/05-8/07), Reman for New PN 87024108

1шт.

21

87593870C

CORE-HYD CYLINDER

Return Number

1шт.

22

87017790

HOSE ASSY.

1шт.

23

261066

ORIFICE,9/16" - 18, 0.813" Orifice

1шт.

24

87029579

ORIFICE

1шт.

25

87046143

SLEEVE

4шт.

26

87041665

HOSE,0.50" ID x 121.00", SAE 100R6

1шт.

27

87041666

HOSE ASSY.

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

29

87017791

HOSE ASSY.,9.53mm ID x 2667mm L

1шт.

30

87041664

HOSE,0.50" ID x 61.00", SAE 100R6

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

32

87031926

ROD

1шт.

Threaded; Secured W/Nuts

1шт.

Early Production Only

1шт.

32

87591631

ROD

Rod

1шт.

Plate On End; Secured W/Bolts

1шт.

33

87031052

STOP

2шт.

34

87020604

DECAL

Indicator, 6-5-4-3-2-1

1шт.

35

87041669

HOSE ASSY.

1шт.

Non-Draper Option

1шт.

35

87518211

HOSE ASSY.

1шт.

Draper Option

1шт.

36

0C

ORDER COMPONENTS

Manifold, Deluxe; Refer Fig. 09.03 [01]

1шт.

37

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

38

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

39

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3/4" Tube

2шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

41

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

42

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

43

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

44

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

45

425-286

FLANGE NUT,Flg, 3/8"-16, G5

9шт.

46

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

47

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

48

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

1) Used W/87031926, (2) Used W/87341580

1шт.

49

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

Used W/87031926

1шт.

50

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

Used W/87341580

1шт.

Prior to Y6B41xxxx (12/2006)

1шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Used W/87341580

1шт.

52

214389

PLUG,3/4" - 16 ORB

1шт.

53

87044884

SUPPORT

1шт.

54

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

55

529070

CABLE TIE,368.3mm L

CABLE STRAP

9шт.

56

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

57

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

58

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

59

87000150

CLAMP,15.869mm ID

1шт.
