Запчасти Case IH WDX1202 (07.07) - REVERSING HEADER CONTROL VALVE (07) - HYDRAULIC SYSTEM

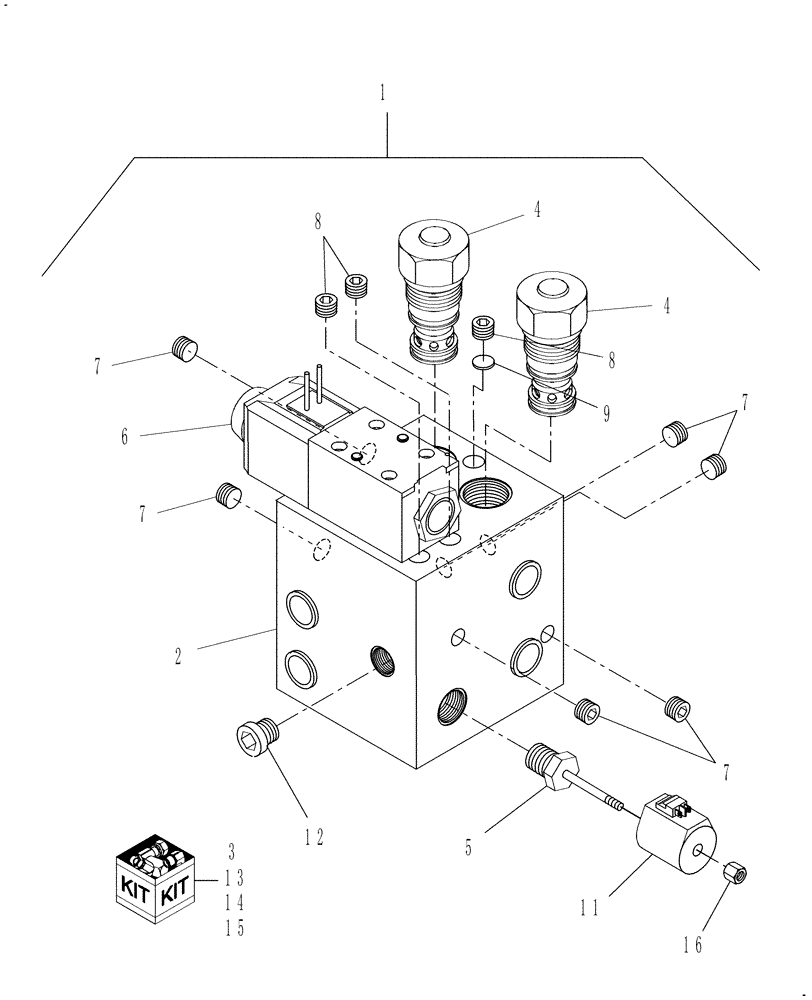

Схема запчастей Case IH WDX1202 - (07.07) - REVERSING HEADER CONTROL VALVE (07) - HYDRAULIC SYSTEM
13
9
5
12
16
8
4
7
4
7
3
6
11
2
8
7
15
7
14
1

Артикул

Название

Примечание

Количество

1

87373659

CONTROL VALVE

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold

1шт.

3

87025780

SEAL KIT

Coil; Services Ref. 5

1шт.

4

87026148

VALVE PRESSURE RELIE

2шт.

5

87372919

VALVE PRESSURE RELIE

Includes Ref. 16

1шт.

6

87013679

CONTROL VALVE

See Also: Ref. 13 & 14; Includes: Coil & C-Top

1шт.

6

86575234

NUT

Coil

1шт.

6

87026108

COIL ASSY.

C-Top

1шт.

7

87037029

PLUG

Zero-Leak -2, 5/16"-24

6шт.

8

87037031

PLUG

Zero-Leak -6, 9/16"-18

3шт.

9

87025778

PLUG

Orifice

1шт.

10

NSS

NOT SOLD SEPARAT

Threaded Stud

2шт.

Not Shown

1шт.

11

87352779

SOLENOID

1шт.

12

87038568

STOP PLUG

Zero-Leak -12, 1-1/16"-12

1шт.

13

86514808

SEAL KIT

Services Ref. 6, Control Valve

1шт.

14

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit, Services Ref. 6, Control Valve

1шт.

15

87026589

SEAL KIT

Seal; Services Ref. 5

1шт.

16

86516836

NUT

1шт.

Выбрано товаров: 19
