Запчасти Case IH WDX1202 (07.01[1]) - HYDRAULIC RESERVOIR, P.I.N. Y7B665755 (WDX1202) & AFTER (07) - HYDRAULIC SYSTEM

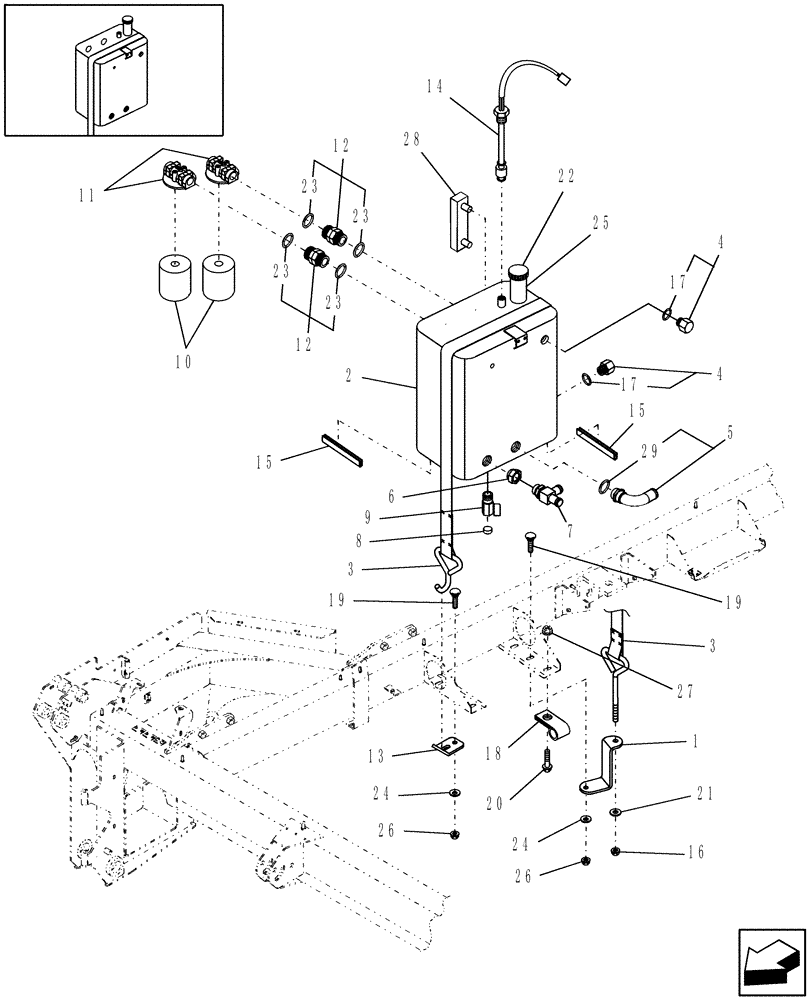

Схема запчастей Case IH WDX1202 - (07.01[1]) - HYDRAULIC RESERVOIR, P.I.N. Y7B665755 (WDX1202) & AFTER (07) - HYDRAULIC SYSTEM
6
14
19
12
7
3
17
15
12
23
16
24
13
27
21
5
15
23
25
18
28
11
20
9
2
29
24
23
4
26
1
22
23
10
8
19
4
3
26
17

Артикул

Название

Примечание

Количество

1

87618405

BRACKET

1шт.

2

87618163

OIL RESERVOIR

1шт.

3

87614313

STRAP

1шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

5

598706

ELBOW

1шт.

6

87572270

ADAPTER

Includes: Ref. 30

1шт.

7

235067A1

TEE

1шт.

8

236622

PLUG,3/8" - 18 NPT

1шт.

9

86599520

RESTRICTOR VALVE

1шт.

10

86632018

HYDRAULIC OIL FILTER

2шт.

11

86514933

HOUSING

2шт.

12

86900019

PIPE FITTING

Includes: (2) Ref. 23

2шт.

13

87618403

ANGLE

1шт.

14

86550810

SWITCH

1шт.

15

291186

PROTECTION STRIP,9.9mm W

1шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

17

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

18

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

19

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

20

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

22

87325304

CAP

1шт.

23

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

87435908

SCREEN

1шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

27

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

28

87540119

GAUGE

Sight

1шт.

29

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Выбрано товаров: 30
