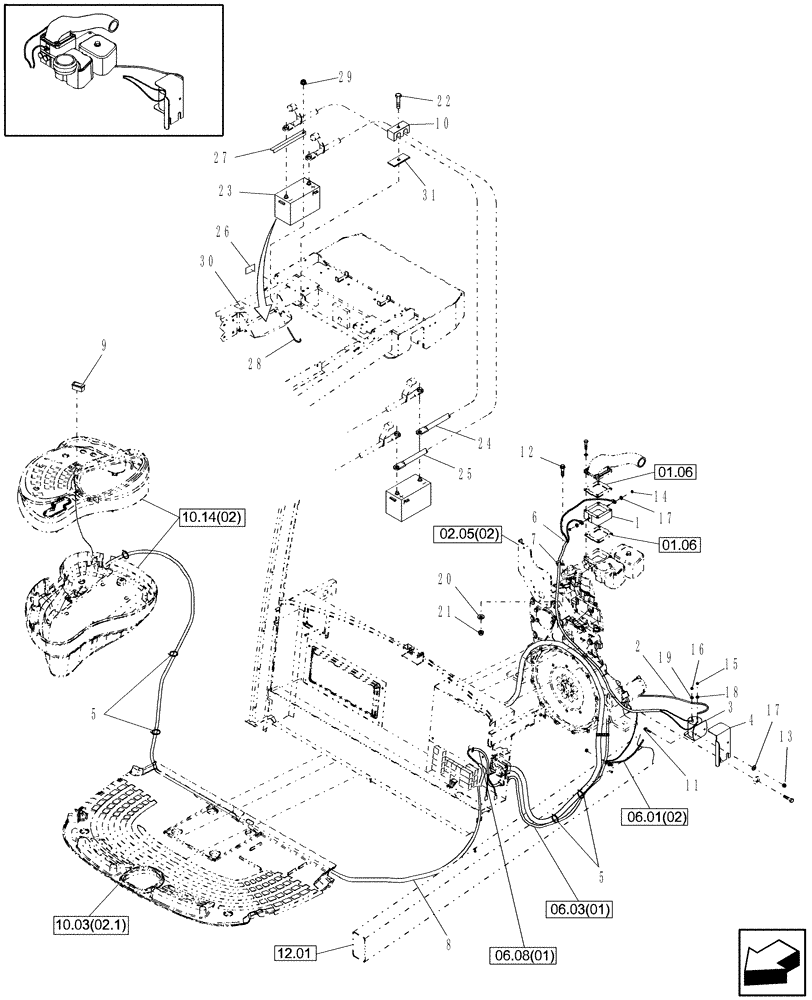

Запчасти Case IH WDX1202 (06.13[2]) - COLD START (06) - ELECTRICAL SYSTEMS

1

82017872

HEATER

1шт.

2

87042839

ELECTRIC CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

87043023

BRACKET

1шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

15шт.

6

87039571

HARNESS

Wire, PH-F

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87041200

HARNESS

Wire, PH-C

1шт.

9

86631307

SWITCH

Cold Start

1шт.

10

86643219

CLAMP,Tube, 3/4"

3/4" Tube

1шт.

11

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

12

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

13

425-284

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

14

832-46406

NUT,M6 x 1, Cl 8

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

225-14210

NUT,#10-32

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

492-11010

LOCK WASHER,#10

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

22

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

25

86533716

ELECTRIC CABLE

Battery, POSITIVE

1шт.

26

87054970

DECAL

DANGER, POISON

1шт.

27

794967

SUPPORT

Battery Strap

1шт.

28

798180

BOLT

2шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

76776

DECAL

Battery Terminal; English

1шт.

30

682668

DECAL

Battery Terminal; French

1шт.

30

86600682

DECAL

Battery Terminal; Spanish

1шт.
