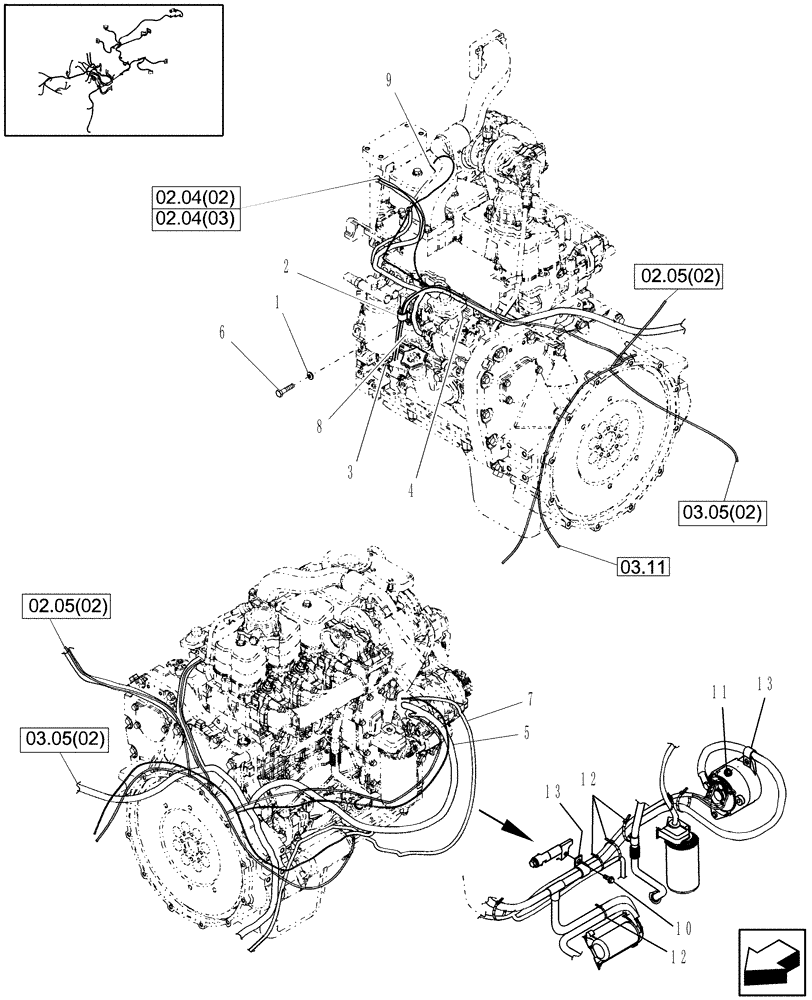

Запчасти Case IH WDX1202 (06.04[2]) - ENGINE ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

2

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

2852735

PRESSURE SWITCH,Oil Pressure

Engine Oil Pressure

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid, FI Pump

1шт.

5

87038496

HARNESS

Main Frame

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

87039586

HARNESS

Battery

1шт.

8

2852087

SENSOR

KSB

1шт.

9

2852157

SENSOR

1шт.

10

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

11

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

13

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

2шт.
