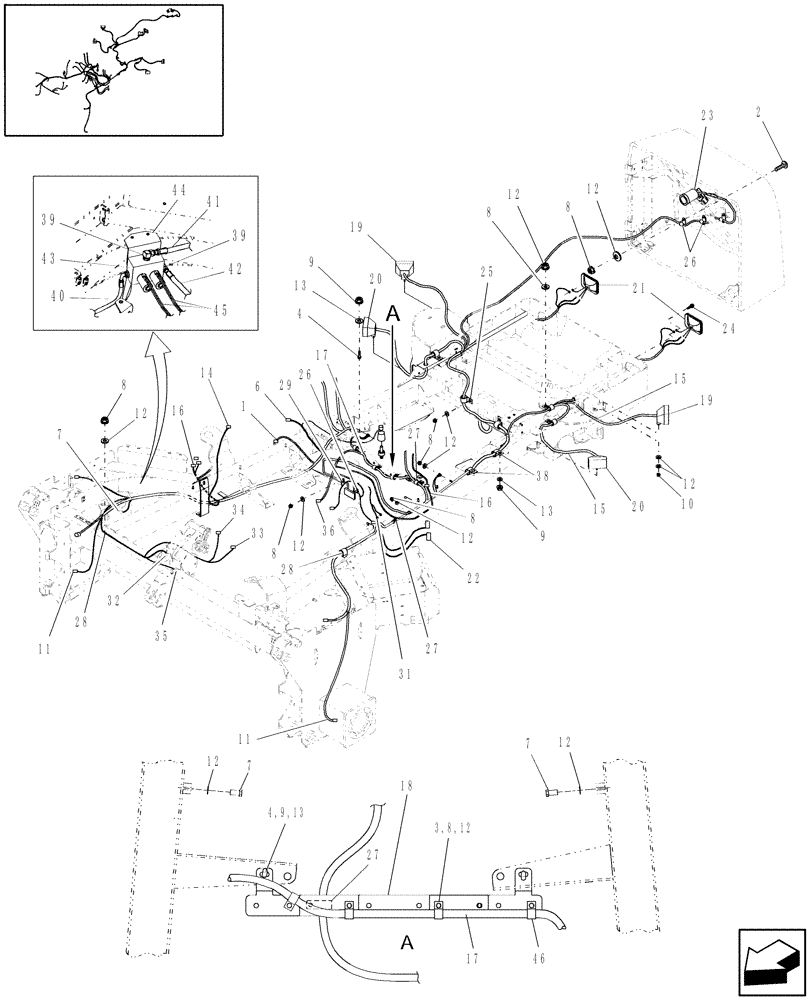

Запчасти Case IH WDX1202 (06.03[3]) - REAR FRAME ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

86550810

SWITCH

1шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

7шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Shown, Use One Every 12", Or Only as Needed

56шт.

6

86837739

SOLENOID VALVE

Header, Forward/Reverse

1шт.

7

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

17шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

11

9825943

SENSOR

Ground Speed

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

14

87000228

SWITCH, A/C LOW PRES

1шт.

15

86500924

GROMMET

5шт.

16

9849562

PRESSURE SWITCH

ATC High

1шт.

774735

DIODE,6A

1шт.

17

87039577

HARNESS

Main Frame

1шт.

Non-Draper Option

1шт.

Prior To 12/06

1шт.

17

87575162

WIRE HARNESS

Harness, Main Frame

1шт.

Non-Draper Option

1шт.

From 12/06

1шт.

17

87346284

WIRE HARNESS

Main Frame

1шт.

Draper Option

1шт.

See Also, Ref. 45

1шт.

Prior To 12/06

1шт.

17

87575163

WIRE HARNESS

Harness, Main Frame

1шт.

Draper Option

1шт.

See Also, Ref. 45

1шт.

From 12/06

1шт.

18

87030412

SUPPORT

1шт.

19

86705728

LAMP

Flood, 50w. 12v

2шт.

19

87026085

BULB

2шт.

20

86705726

LAMP

Flood, 35w, 12v

2шт.

20

86533429

BULB,Halogen, 12V, 35W

2шт.

21

86631651

TAIL LAMP

2шт.

22

86562581

SWITCH

Rocker, Fuel Service Light

1шт.

23

87541053

WIPER MOTOR

Motor, Wiper

1шт.

23

87488680

ELECTRIC MOTOR

Also See Fig. 08.06(2), Start Year: 01-JUN-09

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Also See Fig. 08.06(2), Shaft OD 12mm

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

Component of Rotary Screen Motor Kit 84209230

1шт.

24

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4" x 5/8"

2шт.

25

239859

CLAMP

3/4" x 5/16" Bolt

2шт.

26

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

27

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

28

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

29

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP Not Shown

6шт.

31

85999229

FLOAT

1шт.

32

87035168

POTENTIOMETER,4.5 VDC-5.5 VDC

Dual Hall Effect

1шт.

33

NS

NOT SERVICED

Propulsion Reverse Solenoid, See Fig. 07.05 [04.1]

1шт.

34

NS

NOT SERVICED

Propulsion Forward Solenoid, See Fig. 07.05 [04.1]

1шт.

35

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Windrow Shield

1шт.

36

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Pintle Arm Sensor

1шт.

37

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

38

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

Vinyl Coated

2шт.

39

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

Draper Option

1шт.

40

87041666

HOSE ASSY.

1шт.

Draper Option

1шт.

41

87518211

HOSE ASSY.

1шт.

Draper Option

1шт.

42

86979915

HOSE,12.70 mm ID x 3378.20 mm, SAE 100R16

1шт.

Draper Option

1шт.

43

87545543

FLOW DIVIDER

Valve

1шт.

Draper Option

1шт.

44

87517567

ANGLE

1шт.

Draper Option

1шт.

45

87528542

WIRE HARNESS

Harness

1шт.

Part Of Dealer Installed Draper Kit. Factory Installed Option Uses Ref. 17 Instead

1шт.

46

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.
