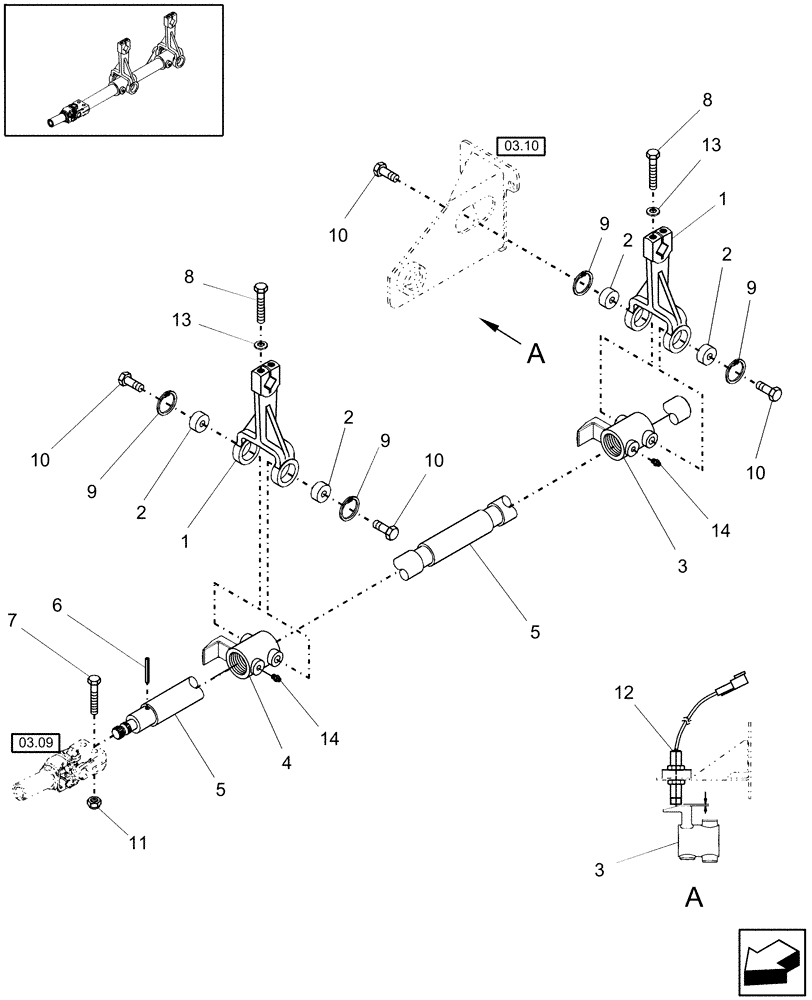

Запчасти Case IH WDX1202 (03.11[2]) - PINTLE ARM, FROM 12/06 (03) - TRANSMISSION

1

87031406

ARM ASSY.

2шт.

2

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

4шт.

3

87574508

NUT,1-1/2" - 4

Nut, Steering, RH

1шт.

4

87581510

NUT

Nut, Steering, LH

1шт.

5

86618316

SHAFT

1шт.

6

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

1шт.

7

280589

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

8

280425

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

9

301646

CIRCLIP

4шт.

10

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

4шт.

11

88902

NUT,3/8"-16

2шт.

12

87363211

SENSOR

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

87414

LUBE NIPPLE,1/4" - 28

2шт.
