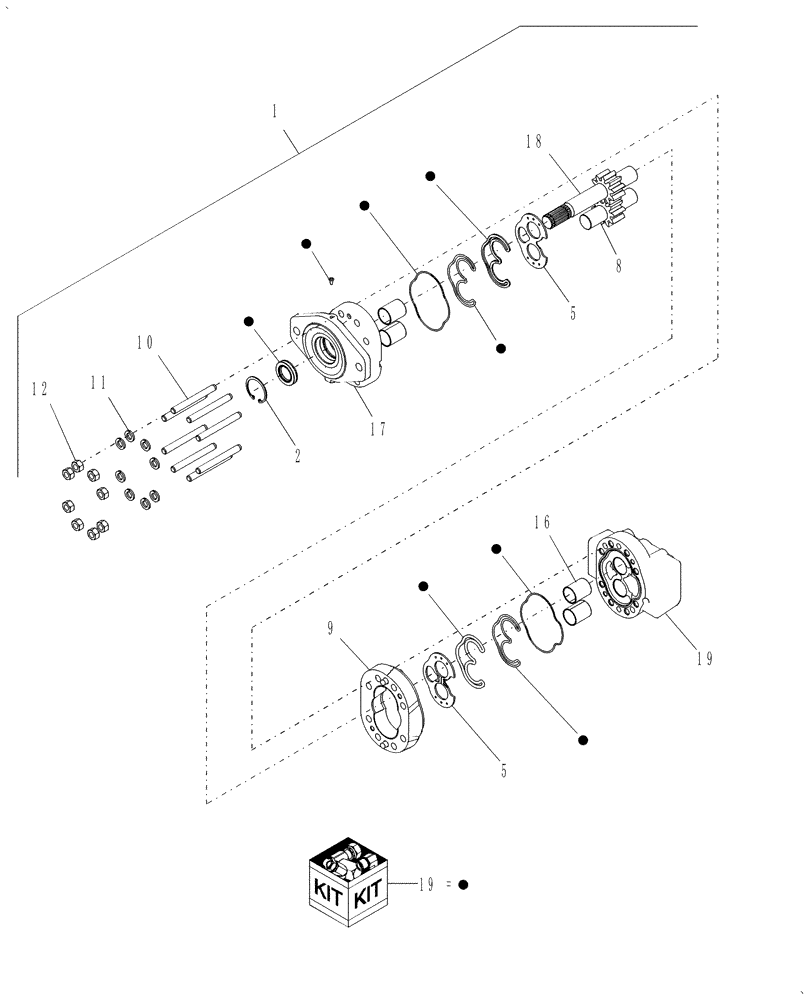

Запчасти Case IH WDX1202 (03.06[02]) - GEAR PUMP, HYDRAULIC HEADER DRIVE, 87588019 (03) - TRANSMISSION

1

87588019

PUMP

Gear

1шт.

1

87588019R

REMAN-HYD PUMP

Gear

1шт.

1

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

66967

SNAP RING,1.75", Int, #175

1шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

4

NSS

NOT SOLD SEPARAT

Seal Retainer

2шт.

5

NSS

NOT SOLD SEPARAT

Wear Plate

2шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Driven

1шт.

9

NSS

NOT SOLD SEPARAT

Center Section

1шт.

10

87620369

STUD

8шт.

11

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

8шт.

12

84951

NUT,7/16"-14, G2

8шт.

13

NSS

NOT SOLD SEPARAT

Plug, Breather

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Shaft, Inner

1шт.

15

NSS

NOT SOLD SEPARAT

Rear Cover

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

4шт.

17

NSS

NOT SOLD SEPARAT

Front Cover

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, Drive

1шт.

19

87618180

SEAL KIT

1шт.
