(03.06[01]) - GEAR PUMP, HYDRAULIC HEADER DRIVE, 87574774

Запчасти Case IH WDX1202 (03.06[01]) - GEAR PUMP, HYDRAULIC HEADER DRIVE, 87574774 (03) - TRANSMISSION

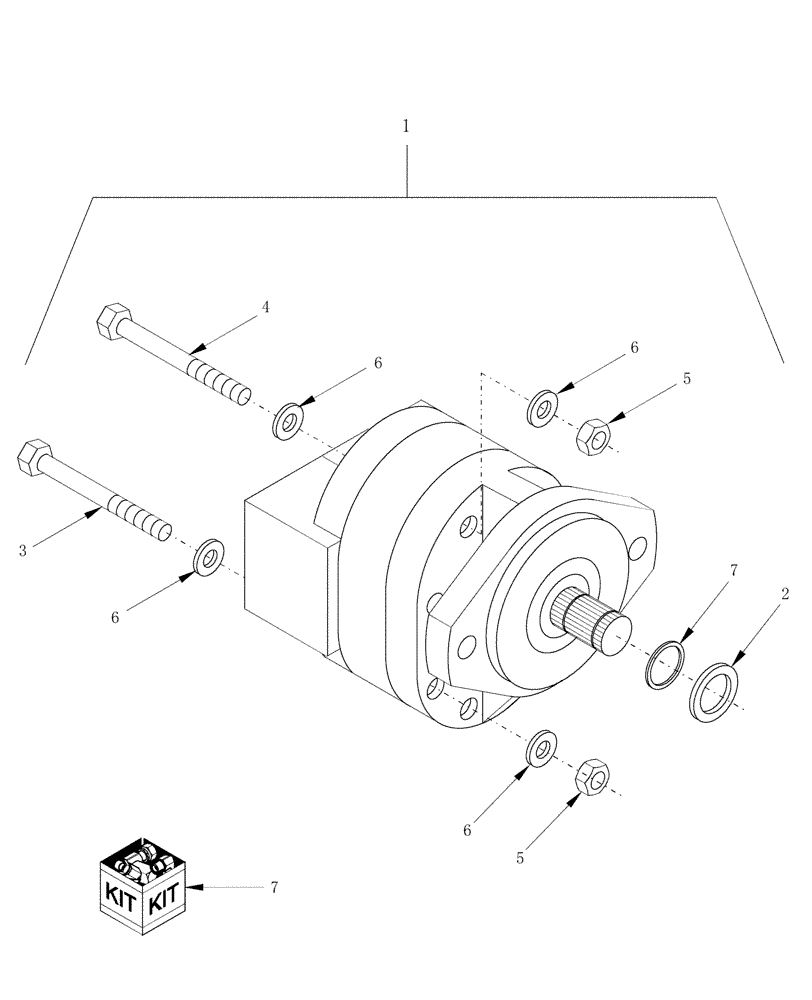

Схема запчастей Case IH WDX1202 - (03.06[01]) - GEAR PUMP, HYDRAULIC HEADER DRIVE, 87574774 (03) - TRANSMISSION
4
2
6
5
5
1
3
7
6
7
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87574774

PUMP

Pump, Hydraulic, Includes: Ref. 2 - 6

1шт.

When updating to the Haldex Pump, 87588019, Use Header Drive Pump Suction Kit 87574359

1шт.

87588019R

REMAN-HYD PUMP

WDX1002S,WDX1202 ,WDX1202S All (3/05-8/07) Reman for New P/N 87574774

1шт.

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

100-21150

SNAP RING,1.50", Int, #150

1шт.

3

86520697

BOLT,Hex, 7/16" - 20 x 3 3/4", Gr 8

4шт.

4

86050014

BOLT,Hex, 7/16" - 20 x 3", Gr 8

4шт.

5

429-117

NUT,7/16"-20, G8

12шт.

6

9790555

WASHER,11.79mm ID x 19.43mm OD x 3.07mm Thk

Hardened, 7/16"

12шт.

7

86529048

SEAL KIT

1шт.
