Запчасти Case IH WDX1202 (03.05[01.3]) - TANDEM PUMP, REAR HALF (03) - TRANSMISSION

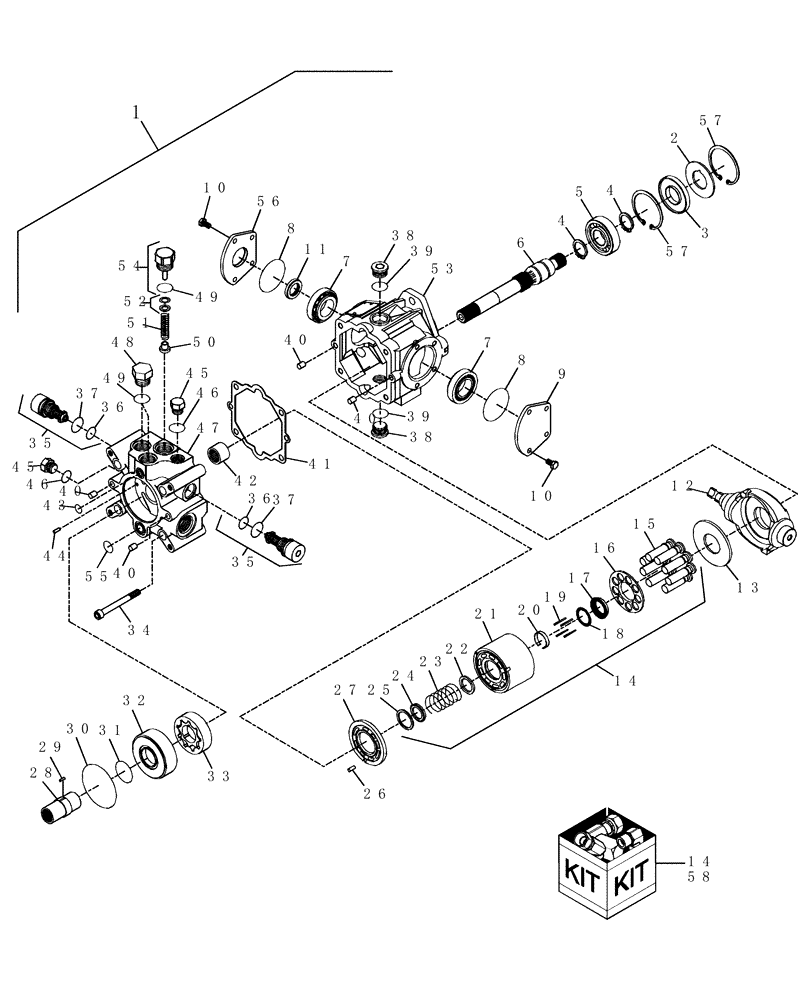

Схема запчастей Case IH WDX1202 - (03.05[01.3]) - TANDEM PUMP, REAR HALF (03) - TRANSMISSION
28
49
16
22
2
36
4
12
58
14
13
3
10
37
14
18
8
40
52
57
5
35
20
41
51
40
53
46
46
49
7
4
43
6
54
25
56
19
38
1
39
24
30
29
15
31
47
36
32
33
23
27
17
34
48
26
45
57
42
35
10
40
21
7
44
45
37
55
8
38
9
40
39
50
11

Артикул

Название

Примечание

Количество

1

87038912

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D

1шт.

Also includes fig. 03.05[01.2]

1шт.

WDX1902 & WDX2302 Only

1шт.

1

84257942

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D, Start Year: 01-JAN-11

1шт.

WDX1902 & WDX2302 Only

1шт.

1

84257942R

REMAN-HYD PUMP

WDX1902, WDX2302, Does Not Include Gear Pump

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87038911

HYDRAULIC PUMP

Tandem

1шт.

Also includes fig. 03.05[01.2]

1шт.

WDX1002S, WDX1202S, & WDX1202 Only

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

WDX1002S, WDX1202S, WDX1202 Start Yr.(01/01/2011), Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

84257940

HYDRAULIC PUMP

Tandem, Start Year: 01-JAN-11

1шт.

WDX1002S, WDX1202S, & WDX1202 Only

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

WDX1002S, WDX1202S, WDX1202. Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

86537277

WASHER

1шт.

3

86502227

SEAL,32.99mm ID x 72.31mm OD x 9.53mm Thk

Lip

1шт.

4

100-11137

SNAP RING,#137, Ext

2шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Ball

1шт.

6

86537268

SHAFT

1шт.

6

84223667

SHAFT

1шт.

Replaces 86537268 and Can Be Used in Older Pumps, Improved.

1шт.

7

241590A1

BEARING ASSY

2шт.

8

86539927

O-RING,2.612" ID x 2.81" OD x 0.099"

2.612" ID x .099" Thk

2шт.

9

86502299

COVER

Trunnion

1шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

11

87012457

SEAL,23.7mm ID x 38.27mm OD x 6.4mm Thk

Lip

1шт.

12

87012455

SWASH PLATE

Variable

1шт.

13

86502277

THRUST PLATE

1шт.

14

87012454

HYD PUMP REPAIR KIT

Block, Cylinder, Includes: Ref. 15 - 25

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

1шт.

16

86539899

RETAINER

Slipper

1шт.

17

86539900

GUIDE

Retaining, Slipper

1шт.

18

86539901

THRUST WASHER

1шт.

19

86539902

PIN,2.38mm OD x 29.46mm L

Slipper

4шт.

20

NSS

NOT SOLD SEPARAT

Retainer, Hold Down

1шт.

21

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

Washer

1шт.

23

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Washer

1шт.

25

D38748

SNAP RING,#162, 1.701, Int, Spiral

1шт.

26

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

27

87054549

FLOAT VALVE

Plate, CW

1шт.

28

86502291

COUPLING,22T

Tandem

1шт.

29

86502288

PIN,3.181mm OD x 9.53mm L

1шт.

30

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

31

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

32

86502290

SPACER

Geroter

1шт.

33

86502289

ROTOR

Geroter

1шт.

34

NSS

NOT SOLD SEPARAT

Screw, Cap, HSH, M10 x 1.5 x 90

4шт.

35

87056730

SEAL KIT

SCR, Includes: Ref. 36 & 37 (4350694)

2шт.

Used w/pump 87038912

1шт.

35

86539666

KIT

Valve, SCR, Includes: Ref. 36 & 37

2шт.

Used w/pump 87038911

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

37

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

38

163410

PLUG,1-1/16" - 12 ORB

Includes: Ref. 39

3шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

40

87012464

SPECIAL PIN,9.499mm OD x 12.7mm OAL

Dowel, Knurled

4шт.

41

86502278

GASKET

End Cap

1шт.

42

F62094

NEEDLE BEARING

Needle

1шт.

43

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

44

37-138

DOWEL,3/16" x 1/2"

1шт.

45

76349

PLUG,9/16" - 18 ORB

Includes: Ref. 46

2шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

47

86502293

CAP

End

1шт.

48

86512512

PLUG,7/8" - 14 ORB

Includes: Ref. 49

2шт.

49

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

50

86505723

POPPET

1шт.

51

86505721

SPRING

Compression

1шт.

52

86537393

KIT

Shims

1шт.

53

86537275

HOUSING

1шт.

54

86537387

PLUG

Charge Relief, Includes: Ref. 49

1шт.

55

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

56

87012456

COVER

Trunnion

1шт.

57

100-21281

SNAP RING,2.812", Int, #281

2шт.

58

86594279

HYD PUMP REPAIR KIT

Overhaul, Seal

1шт.

For Complete Listing of Kit, see Fig. 03.05(5)

1шт.

Выбрано товаров: 79
