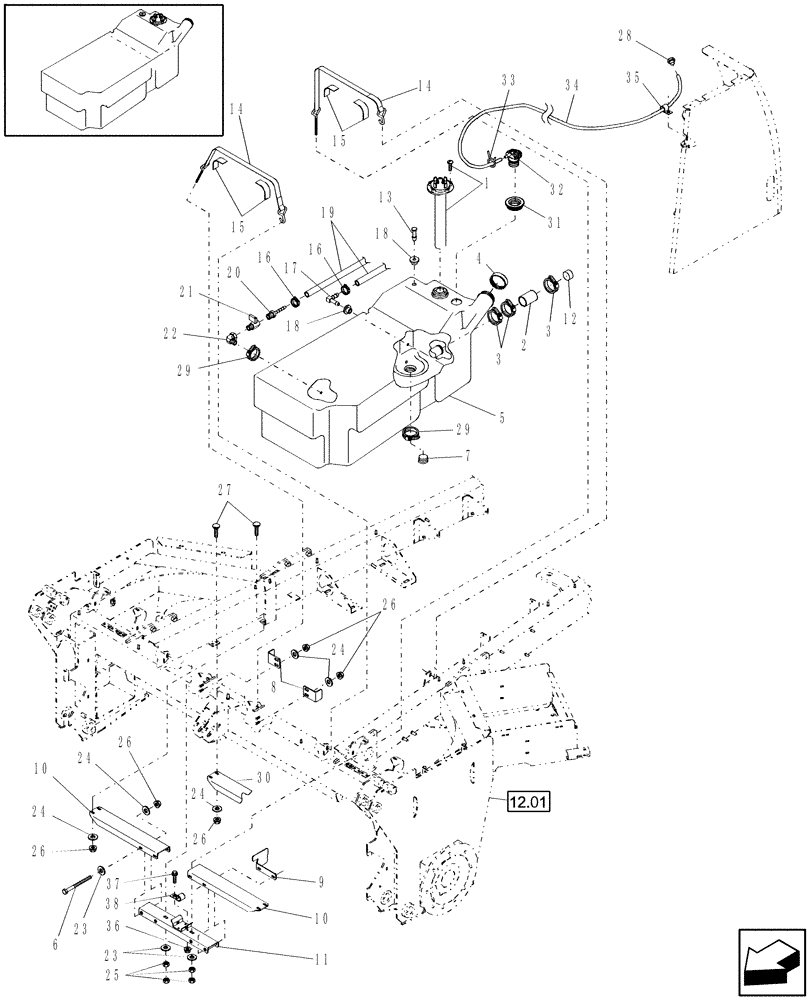

Запчасти Case IH WDX1002S (02.06[1]) - FUEL TANK (02) - ENGINE EQUIPMENT

1

85999229

FLOAT

Includes: Cap Screws (5) & Gasket (1)

1шт.

1

E602142S72

SCREW

Cap, HH, CL 8.8, M5-.8 x 8

5шт.

1

D5NN9276B

GASKET

1шт.

Not Shown

1шт.

2

87020320

FLEXIBLE HOSE,50.80 mm ID x 70.00 mm, SAE 30R6

1шт.

3

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

3шт.

4

86558080

FILLER CAP

1шт.

5

86623320

FUEL TANK

1шт.

6

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

7

236622

PLUG,3/8" - 18 NPT

1шт.

8

87020457

ANGLE

1шт.

9

87020456

ANGLE

1шт.

10

86974330

CHANNEL

2шт.

11

86974331

CHANNEL

1шт.

12

87020321

TUBE SPACER

1шт.

13

87029673

PLUG

1шт.

14

86974529

STRAP

2шт.

15

275053

SEALING STRIP

10-1/4'; (1.3' Required)

1шт.

16

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

17

87019211

ELBOW

1шт.

18

86537556

BUSHING

2шт.

19

86561591

FLEXIBLE HOSE

96" Long, Cut To Length

1шт.

20

86625229

FITTING,3/8" Hose X 3/8" NPTF Beaded

1шт.

21

86599520

RESTRICTOR VALVE

1шт.

22

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

23

495-21044

WASHER,3/8"

6шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

25

9628503

NUT,3/8"-16, G5

4шт.

26

425-286

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

27

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

28

854071

BREATHER

1шт.

29

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

30

87052503

CHANNEL

1шт.

31

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

1шт.

32

86999948

SAFETY VALVE

1шт.

33

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

34

87280926

FUEL HOSE

1шт.

35

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

37

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

38

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.
