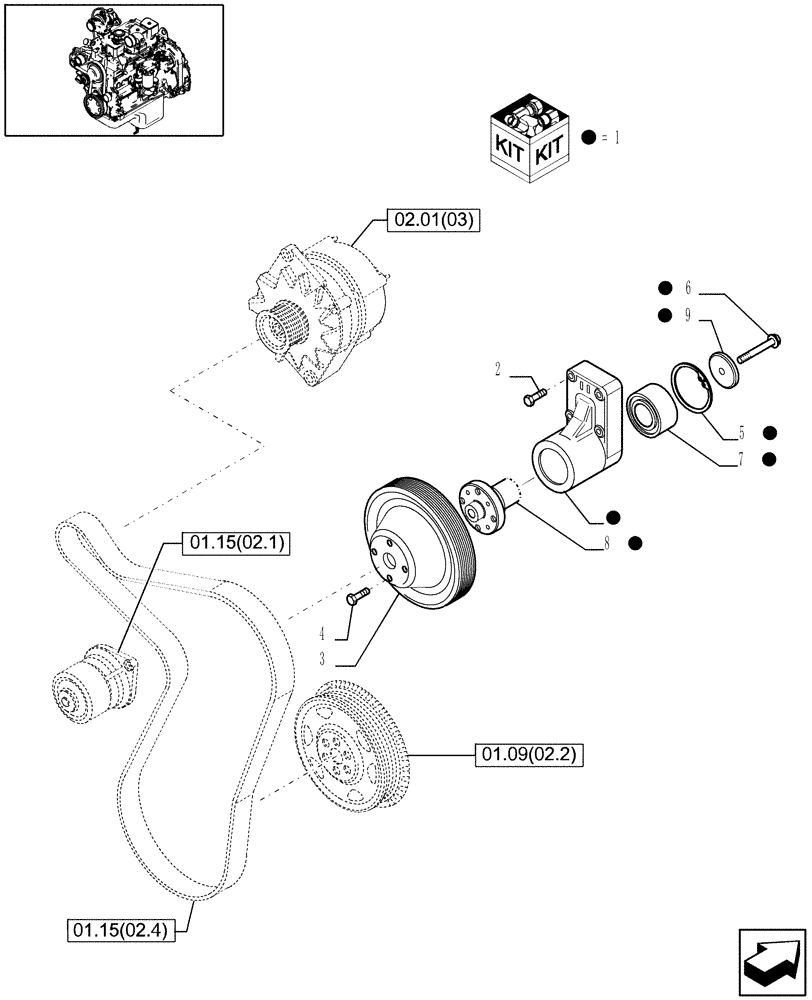

Запчасти Case IH WDX1002S (01.15[02.5]) - FAN DRIVE (01) - ENGINE

1

2852250

SUPPORT

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

3

2852252

PULLEY

1шт.

4

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

5

4890698

SNAP RING,M64, Int

1шт.

6

4893228

BOLT,Flng, M10 x 1.5 x 70mm, Cl 10.9

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.
