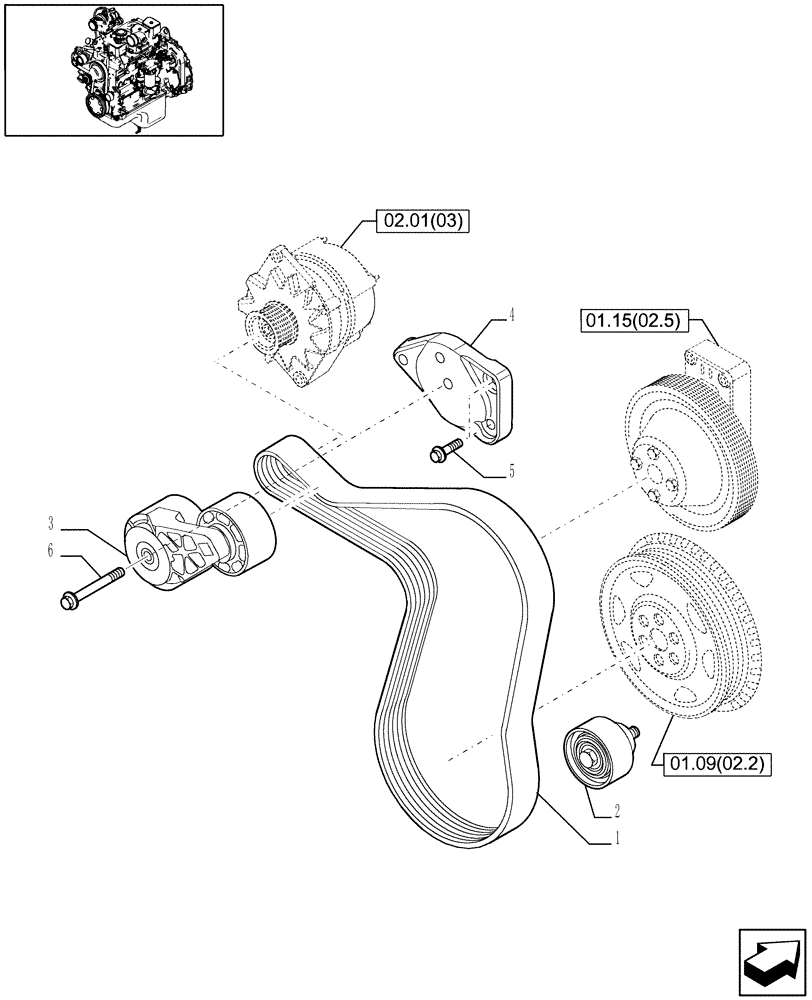

Запчасти Case IH WDX1002S (01.15[02.4]) - WATER PUMP - CONTROL (01) - ENGINE

1

86974844

V-BELT,1700.00 mm L, 8 Ribs

1шт.

2

2852245

PULLEY,65mm OD

1шт.

3

2852161

BELT TENSIONER

(Pulley Width = 33mm)

1шт.

Prior To 11/15/06

1шт.

3

87053620

TENSIONER

(Pulley Width = 39mm)

1шт.

From 11/15/06

1шт.

4

2852246

BELT TENSIONER

1шт.

Prior To 11/15/06

1шт.

4

87564426

SUPPORT

1шт.

From 11/15/06

1шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

2шт.

Prior To 11/15/06

1шт.

5

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

From 11/15/06

1шт.

6

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

Prior To 11/15/06

1шт.

6

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

From 11/15/06

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Used W/9804260

2шт.

Not Shown

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Used W/120071

1шт.

Not Shown

1шт.
