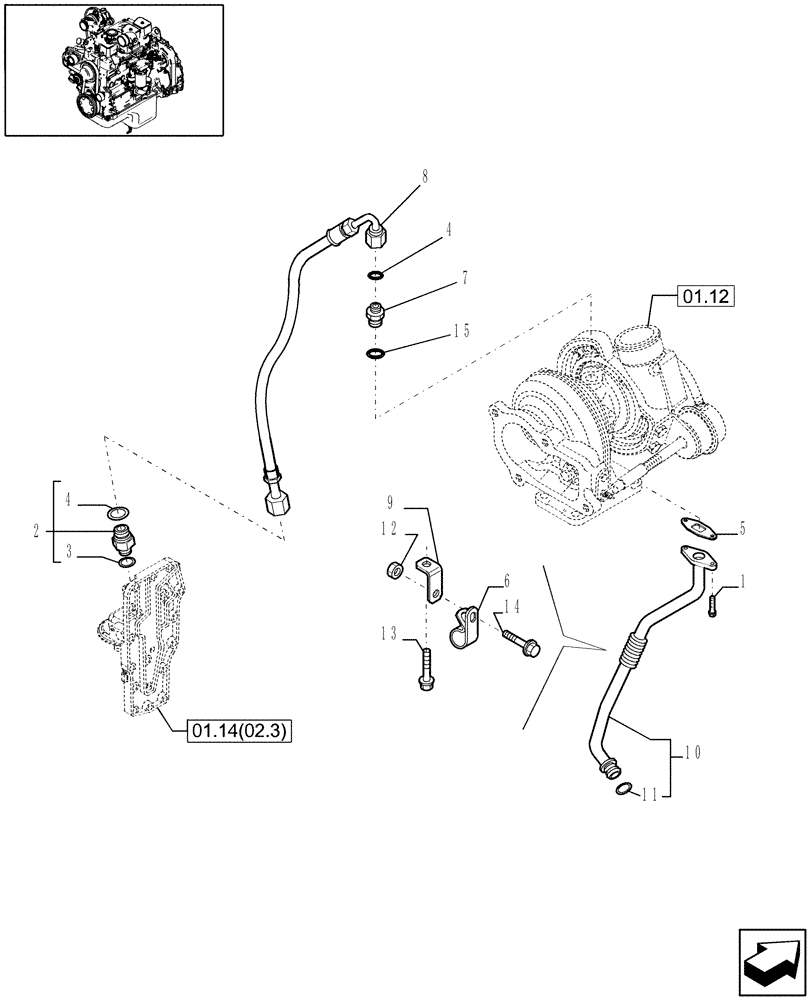

Запчасти Case IH WDX1002S (01.14[02.2]) - PIPING - ENGINE OIL (01) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

8

2852679

HYDRAULIC HOSE

1шт.

9

2852390

BRACKET

1шт.

10

2853625

PIPE

1шт.

11

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

1шт.

12

2852197

FLANGE NUT,M6 x 1

1шт.

13

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

M8 x 1.25 x 16

1шт.

14

2852101

FLANGE BOLT,Hex, M6 x 16mm

1шт.

15

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.
