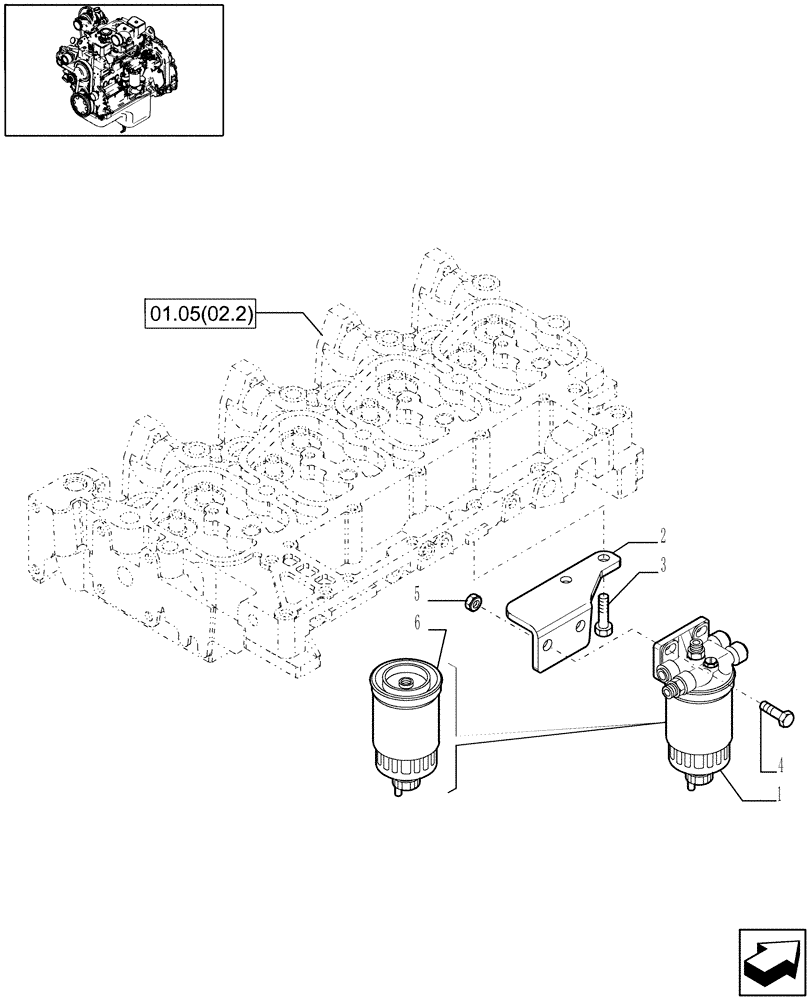

Запчасти Case IH WDX1002S (01.11[02.6]) - FUEL FILTER (01) - ENGINE

1

2852373

FILTER ASSY

1шт.

2

2852099

SUPPORT

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

5

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

2шт.

6

87553155

FUEL FILTER

M8 Drain port

1шт.

6

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

M10 Drain port

1шт.

7

87533314

FUEL FILTER

Optional, Auxillary, Not Illustrated

1шт.

See Service Bulletin Attached

1шт.
