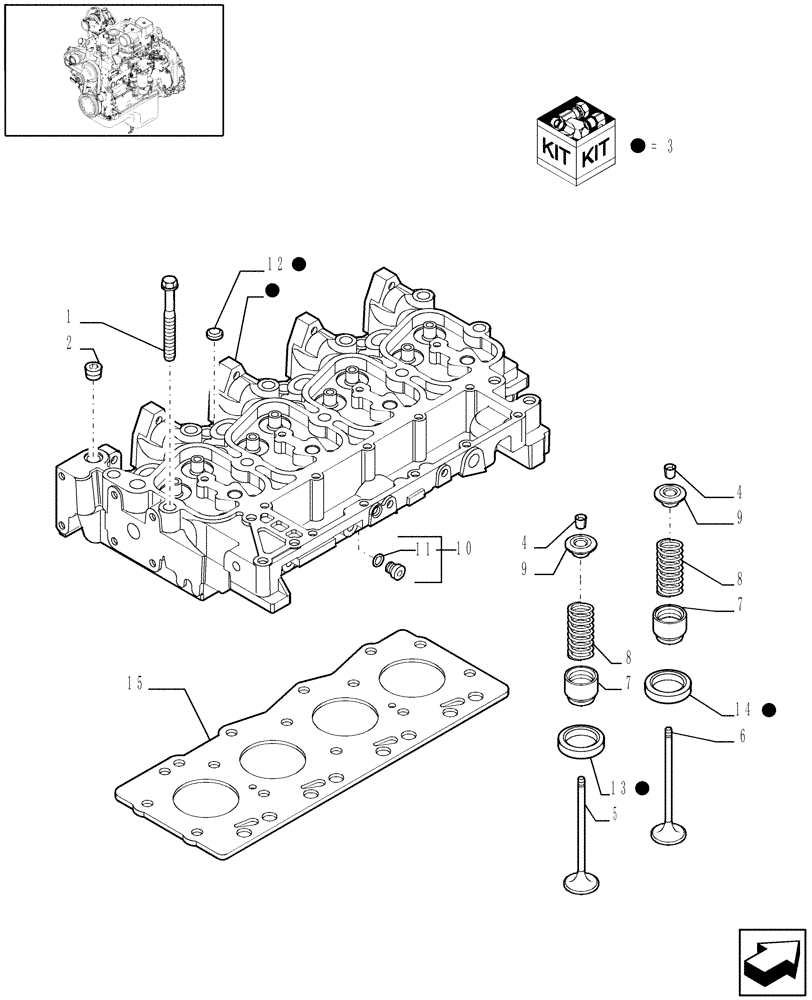

Запчасти Case IH WDX1002S (01.05[02.2]) - CYLINDER HEAD (01) - ENGINE

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

Cap, Captive Washer, M12 x 1.75 x 130

4шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

Cap, Captive Washer, M12 x 1.75 x 143

10шт.

2

4895078

PIPE PLUG,1/2"-14

5шт.

3

4895791

CYLINDER HEAD

1шт.

WDX1202, WDX1202S

1шт.

3

4895790

CYLINDER HEAD

1шт.

WDX1002S

1шт.

4

4895183

COLLET

16шт.

5

4899632

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

WDX1202, WDX1202S

1шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

WDX1002S

1шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

4895347

SEAL

8шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

8шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

8шт.

10

4899009

PLUG,M10 x1

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Intake, Standard

4шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Exhaust, Standard

4шт.

15

2830919

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

15

2830920

CYLINDER HEAD GASKET,1.15mm Thk

1шт.
