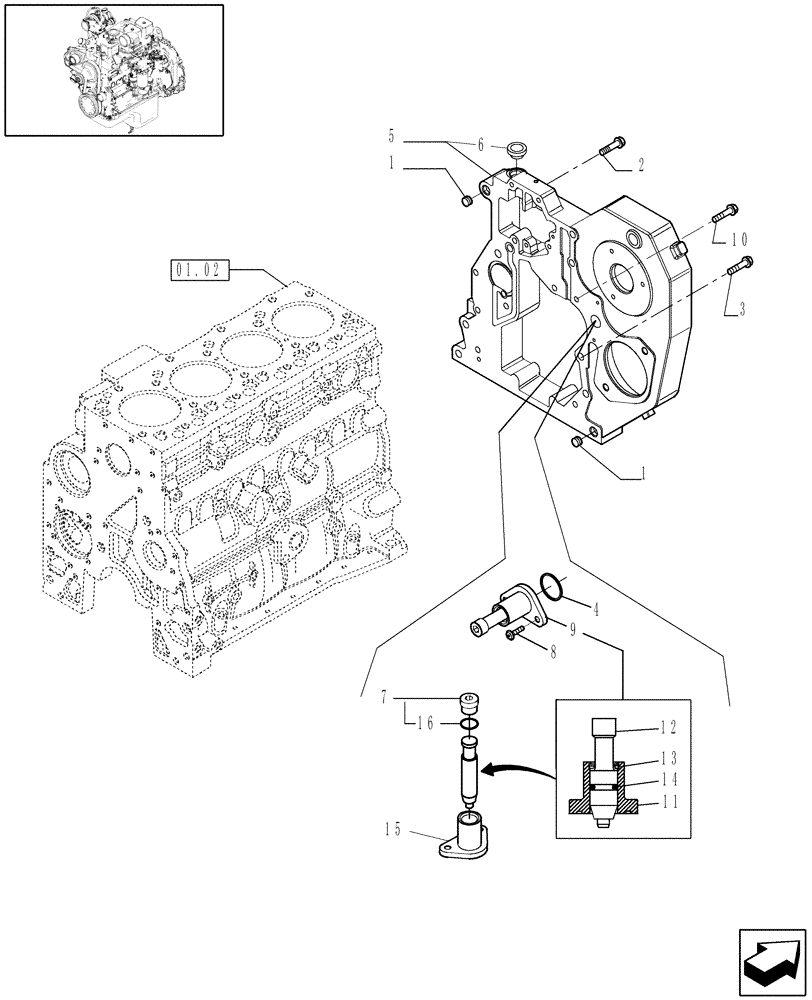

Запчасти Case IH WDX1002S (01.04[02.1]) - CRANKCASE COVERS, REAR (01) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

4

2852519

O-RING,M21.95 ID x 1.78 Thk

1шт.

5

2852320

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Threaded Insert

1шт.

7

2855289

HEX SOCKET PLUG

1шт.

8

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

9

2852515

PIN

Timing, Includes: Ref. 11 - 14

1шт.

10

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

11

2852518

HOUSING

1шт.

12

2852516

PIN

1шт.

13

2852759

CIRCLIP

Retaining

1шт.

14

2852517

O-RING

1шт.

15

2855288

HOUSING

Timing Pin

1шт.

16

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.
