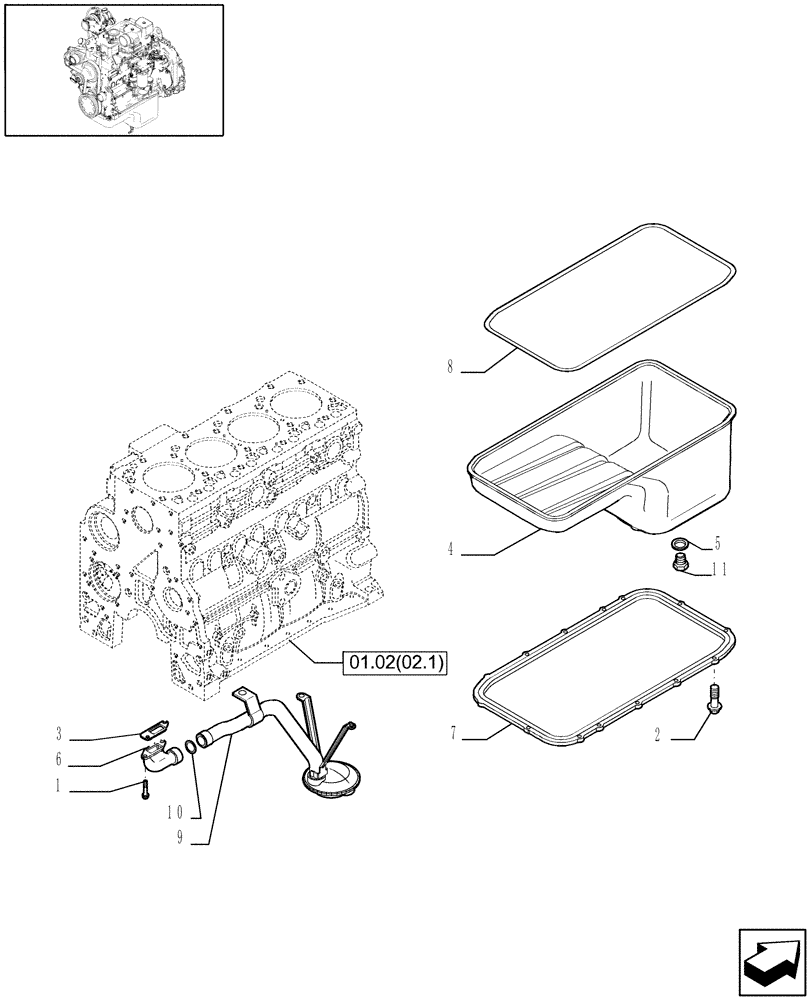

Запчасти Case IH WDX1002S (01.03[2]) - ENGINE OIL SUMP (01) - ENGINE

1

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

M8 x 20

2шт.

2

2852295

SCREW,Hex, M8 x 1.25 x 40mm

14шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852205

ENGINE OIL PAN

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

6

2852238

ELBOW

1шт.

7

4897876

SPACER

1шт.

8

4897877

OIL PAN GASKET SET

1шт.

9

2853397

SUCTION PIPE

1шт.

10

2852237

SEALING RING

1шт.

11

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.
