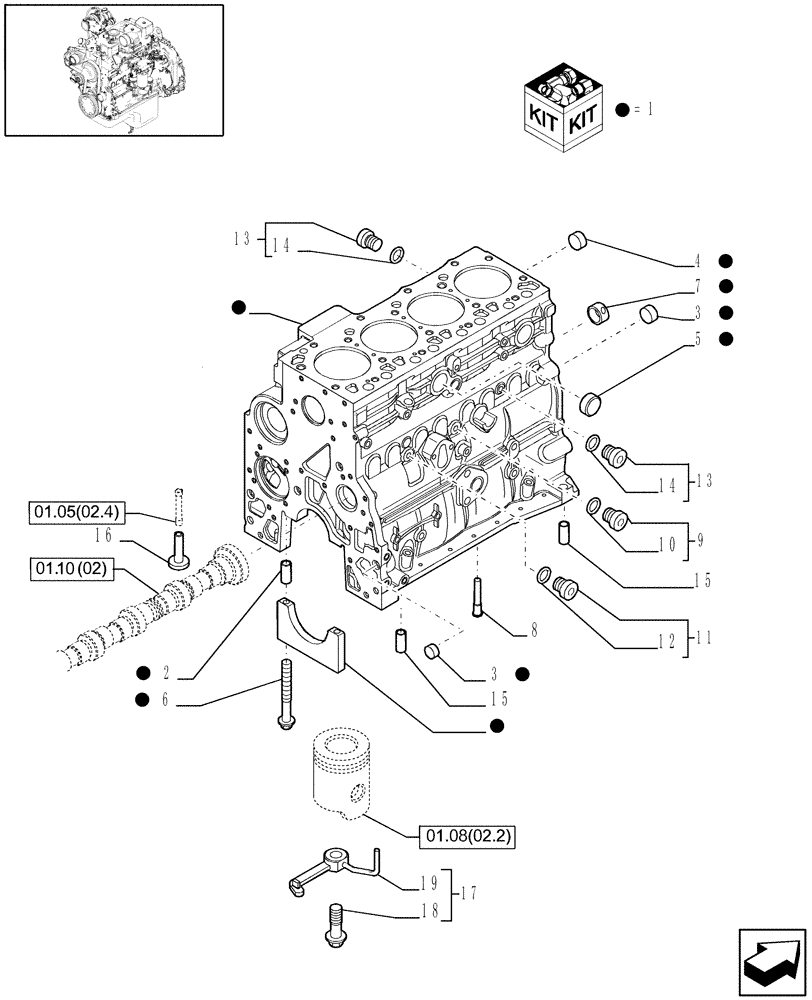

Запчасти Case IH WDX1002S (01.02[02.1]) - CRANKCASE (01) - ENGINE

1

2830081

CYLINDER BLOCK,4 Cylinders

- ASSY

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

5шт.

8

4896153

PLUG

1шт.

9

4895605

HEX SOCKET PLUG,M14 x 1.5

- Assy

1шт.

10

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

11

4899009

PLUG,M10 x1

1шт.

12

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

13

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy

2шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.

15

4895049

DOWEL,M16.05 x 10

2шт.

16

J931623

TAPPET

8шт.

17

2852202

NOZZLE, PISTON COOLI

- Assy

4шт.

18

4894218

SCREW,Special, M8 x 20

1шт.

19

2852203

NOZZLE, PISTON COOLI

1шт.
