Запчасти Case IH WDX1002S (18.26) - WEIGHT CARRIER KIT, SUSPENDED AXLE (00) - GENERAL

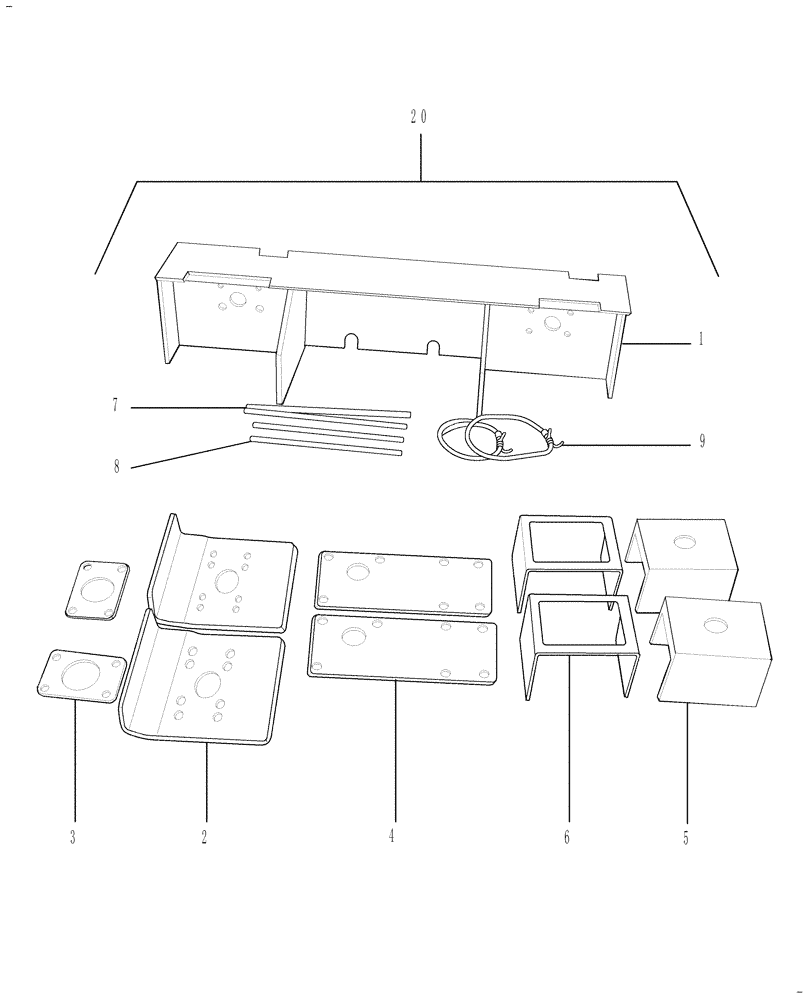

Схема запчастей Case IH WDX1002S - (18.26) - WEIGHT CARRIER KIT, SUSPENDED AXLE (00) - GENERAL
8
2
5
1
20
6
7
3
4
9

Артикул

Название

Примечание

Количество

1

87584204

BRACKET

1шт.

2

87584209

REINFORCEMENT

2шт.

3

87593500

FILLER

2шт.

4

87603984

FILLER

2шт.

5

87603983

BRACKET

2шт.

6

87603985

COVER

2шт.

7

87581892

ROD

2шт.

8

87584735

ROD

2шт.

9

87602467

WIRE HARNESS

Tail Light Extension

2шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

Not Shown - Refer to Installation Instructions.

1шт.

11

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

4шт.

Not Shown - Refer to Installation Instructions.

1шт.

12

86624020

FLANGE NUT,Flg, 1/4"-20.G5

16шт.

Not Shown - Refer to Installation Instructions.

1шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

Not Shown - Refer to Installation Instructions.

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

Not Shown - Refer to Installation Instructions.

1шт.

15

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

16шт.

Not Shown - Refer to Installation Instructions.

1шт.

16

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

Not Shown - Refer to Installation Instructions.

1шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

18шт.

Not Shown - Refer to Installation Instructions.

1шт.

18

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

14шт.

Not Shown - Refer to Installation Instructions.

1шт.

19

86000109

COTTER PIN

4шт.

Not Shown - Refer to Installation Instructions.

1шт.

20

87628971

KIT

Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

21

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

Not Shown - Refer to Installation Instructions.

1шт.

Выбрано товаров: 33
