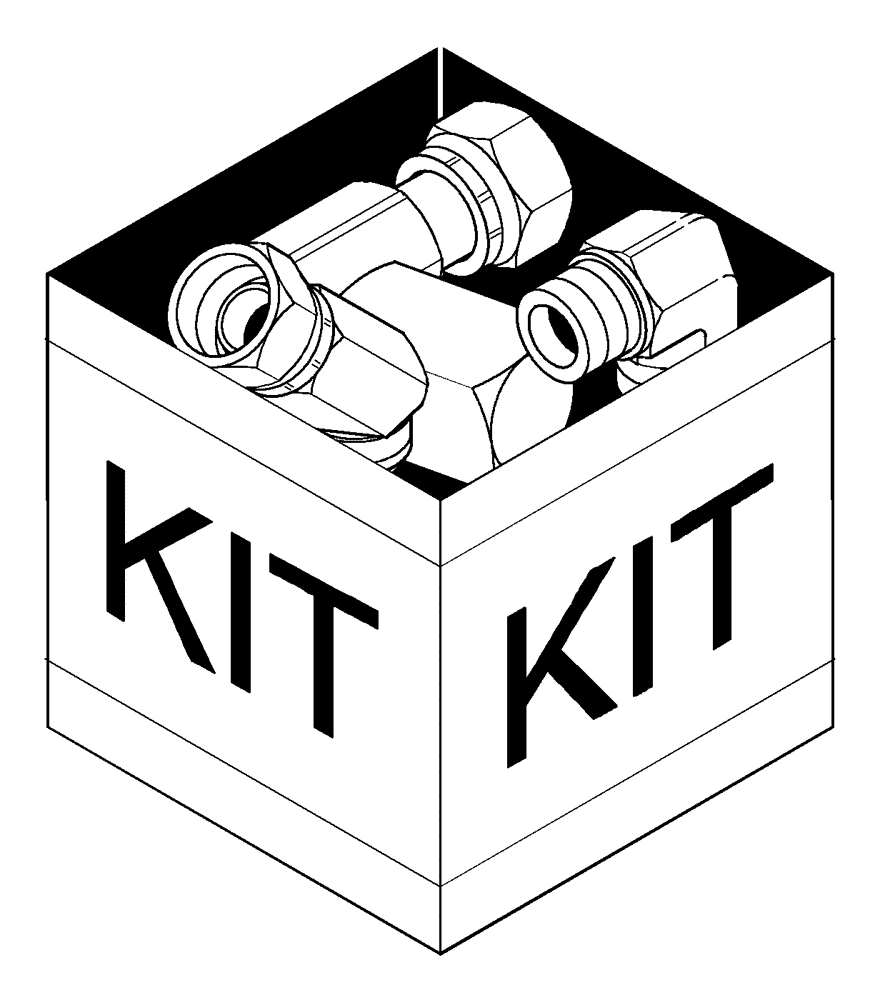

Запчасти Case IH WDX1002S (18.24) - DELUXE LIGHTING KIT Attachments

1

87045144

DIA KIT, HARVESTER

Deluxe Lighting; Includes: Ref.s 2 Thru 10

1шт.

2

86562581

SWITCH

1шт.

3

86705725

LAMP,Halogen, 12V, 50W, Clear

Flood, 50W 12V

2шт.

4

86705726

LAMP

Flood, 35W 12V

2шт.

5

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

7

86500924

GROMMET

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

10

87013873

ANGLE

2шт.
