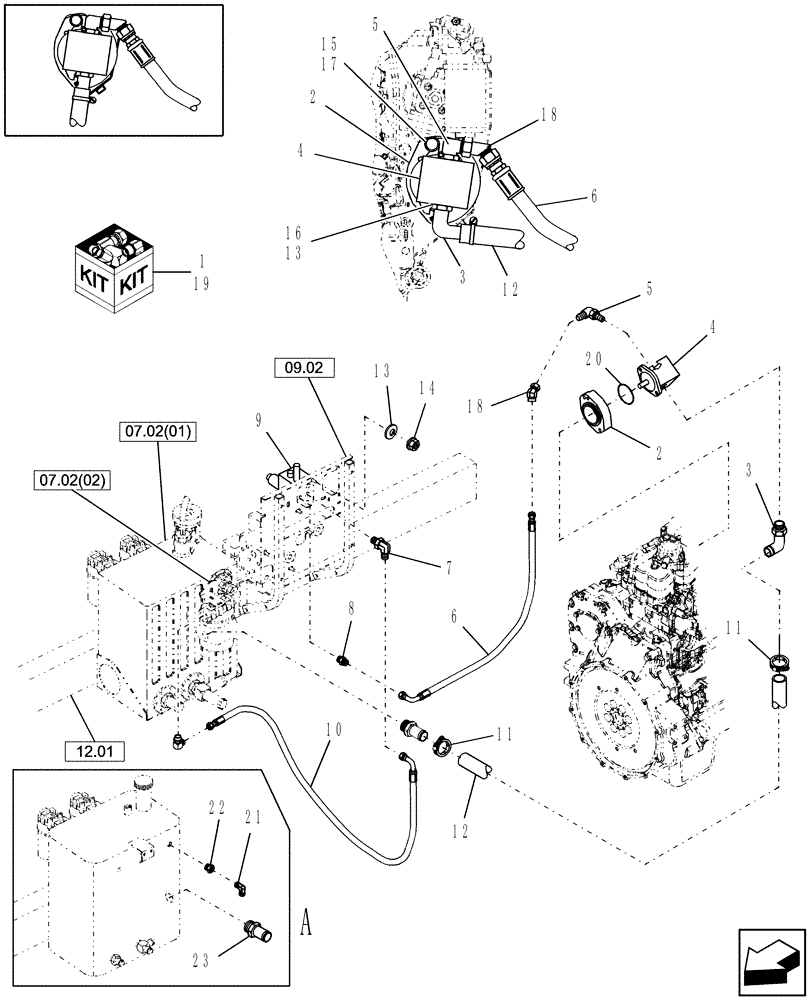

Запчасти Case IH WDX1002S (18.17) - AUXILIARY ENGINE-MOUNTED HYDRAULIC DRIVE KIT Attachments

1

717207016

DIA KIT, HARVESTER

Engine-Mounted Hydraulic Drive; Includes: Ref. 2 - 18

1шт.

Prior To TY07

1шт.

1

87536098

DIA KIT, HARVESTER

Engine-Mounted Hydraulic Drive; Includes: Ref. 2 - 18 & 20 - 23

1шт.

From TY07

1шт.

2

87428636

KIT

Kit

1шт.

3

858997

ELBOW

Includes: O-Ring

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

87050689

HYDRAULIC PUMP,22.8 CC

Gear, 22cc; See Also: Ref. 19

1шт.

5

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Includes: O-Ring

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87032603

HOSE ASSY.

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

86977332

HYDRAULIC VALVE

Auxiliary; Refer To Component Breakdown, Fig. 07.10[01.3]

1шт.

10

87043285

HOSE ASSY.

1шт.

11

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

12

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

15

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

16

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

18

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

19

87340205

SEAL KIT

Services Ref. 4

1шт.

20

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

21

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

86550731

REDUCER

1шт.

23

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.
