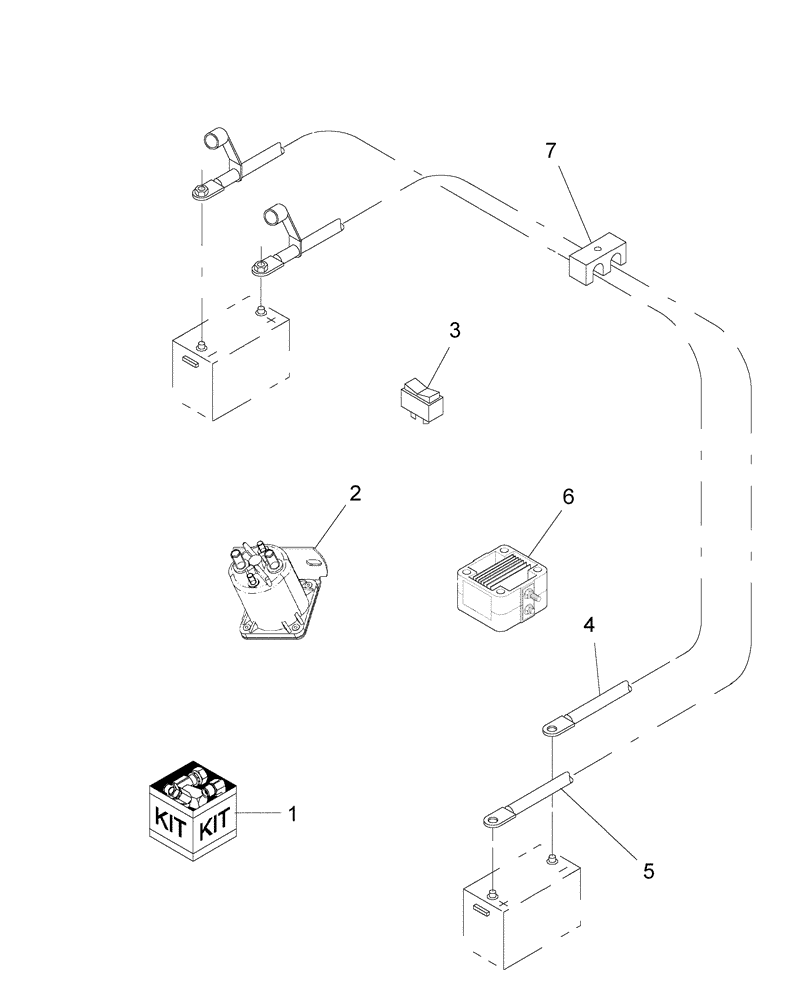

Запчасти Case IH WDX1002S (18.14[2]) - COLD START KIT Attachments

1

715320056

DIA KIT, HARVESTER

Cold Start, Four Cylinder; Includes: Ref. 2 - 31

1шт.

2

87406968

SOLENOID SWITCH

1шт.

3

86631307

SWITCH

Cold Start

1шт.

4

86533717

ELECTRIC CABLE

Negative

1шт.

5

86533716

ELECTRIC CABLE

Positive

1шт.

6

82017872

HEATER

Grid

1шт.

7

86643219

CLAMP,Tube, 3/4"

1шт.

8

87043023

BRACKET

1шт.

9

87042839

ELECTRIC CABLE

Battery, Positive

1шт.

10

87039571

HARNESS

Wire, PH-F

1шт.

11

87039570

HARNESS

Wire, PH-C E4

1шт.

12

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

425-284

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

15шт.

15

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

16

231-4144

NUT,1/4"-20, GB

1шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

19

225-14210

NUT,#10-32

2шт.

20

76776

DECAL

Battery Terminal

1шт.

21

87041200

HARNESS

Wire, PH-C

1шт.

22

492-11010

LOCK WASHER,#10

2шт.

23

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

26

832-46406

NUT,M6 x 1, Cl 8

2шт.

27

794967

SUPPORT

1шт.

28

798180

BOLT

2шт.

29

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

30

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

31

425-106

NUT,3/8"-16, Cl 5

4шт.
