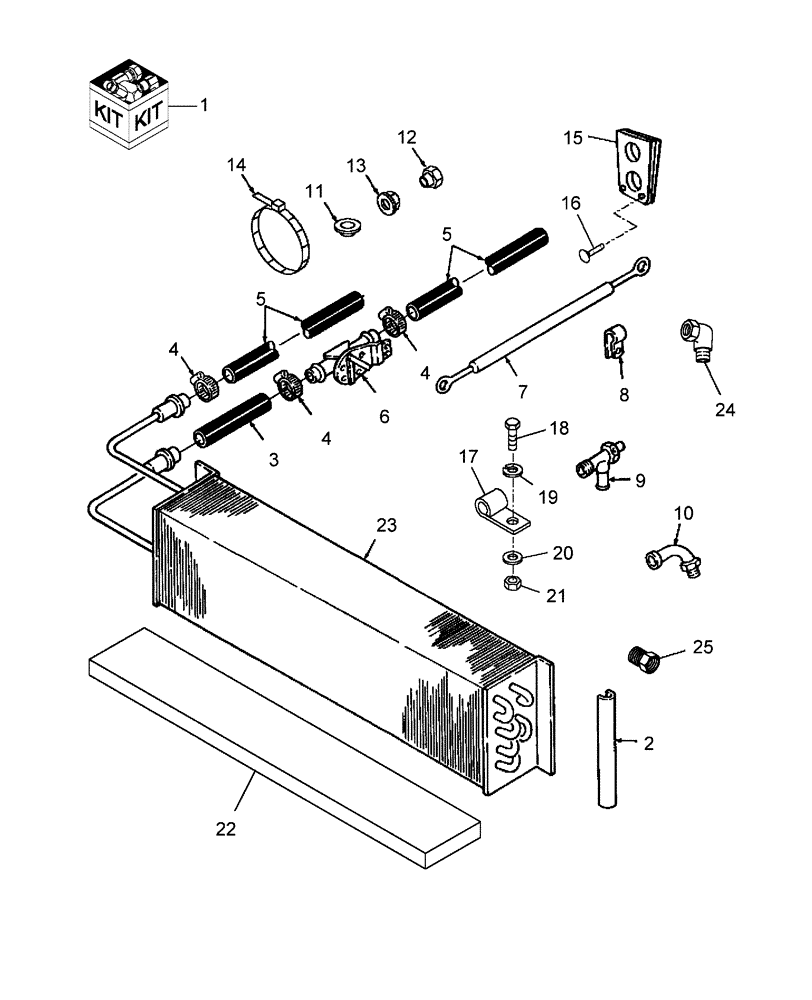

Запчасти Case IH WDX1002S (18.13) - CAB HEATER KIT Attachments

1

715322076

DIA KIT, HARVESTER

Cab Heater; Includes: Ref.s 2 Thru 14, & 22 Thru 26

1шт.

2

617216

SEALING STRIP

1шт.

Cut to fit

1шт.

3

631239

HOSE,0.62" ID x 4.00", SAE 20R3 Class D2

1шт.

4

9706921

HOSE CLAMP,12.7mm - 35mm

Hose, 1/2" to 1-3/8"

6шт.

5

PL

PROCURE LOCALLY

Hose, Heater

1шт.

6

632773

HYDRAULIC VALVE

Heater

1шт.

7

631594

CABLE

1шт.

8

134859

CLAMP,1/8" ID

.12 x 5/16" Bolt

1шт.

9

83961305

VALVE

1шт.

10

134311

HYD CONNECTOR

1шт.

11

682379

PUSH-ON NUT

Push, 1/4"

1шт.

12

247636

ADAPTER

1шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

14

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

15

632273

GROMMET

1шт.

16

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

2шт.

17

620019

CLAMP

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

492-11025

LOCK WASHER,1/4"

1шт.

20

495-11028

WASHER,1/4", SAE

1шт.

21

425-104

NUT,1/4"-20, Cl 5

1шт.

22

681009

FOAM INSULATION

1шт.

23

632772

HEATER

Heater

1шт.

24

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

25

87572

BUSHING

Hex, 1/2" x 3/8"

1шт.

26

87012296

HYD CONNECTOR

M18 x 1.5 to 1/2"-14 NPTF

1шт.

Not Shown

1шт.
