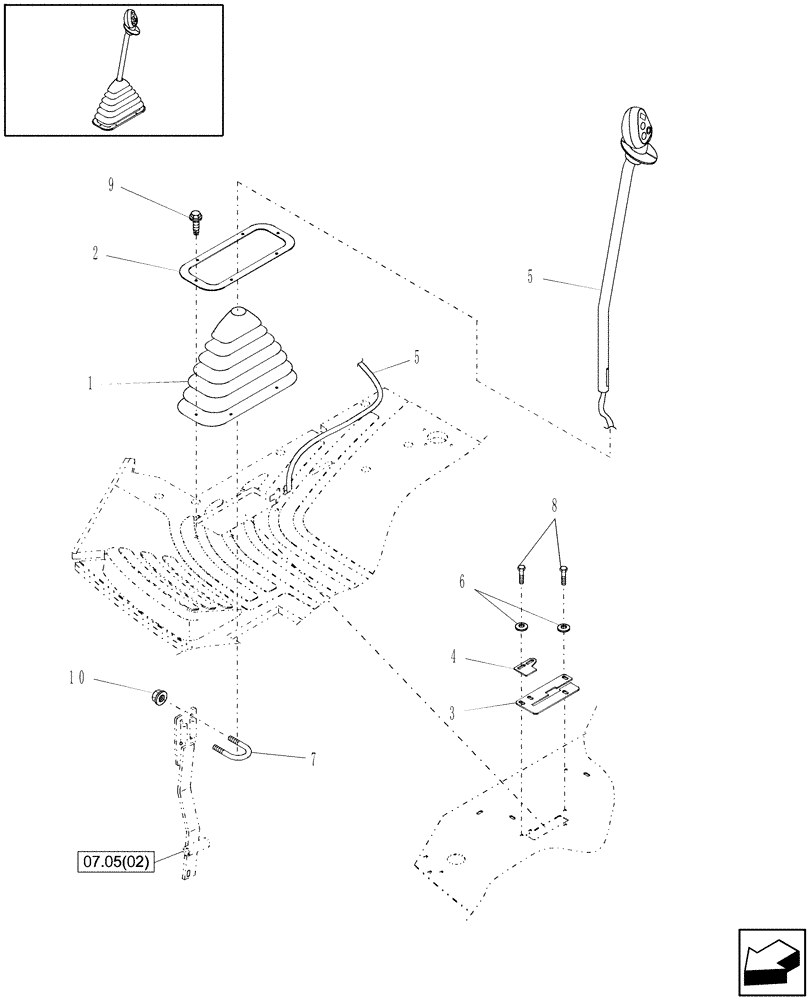

Запчасти Case IH WDX1002S (10.16[02.1]) - ECONOMY MULTI-FUNCTION HANDLE (MFH) (10) - OPERATORS PLATFORM/CAB

1

86621402

BOOT

1шт.

2

86627539

BASE PLATE

1шт.

3

87040716

PLATE

1шт.

4

87021317

PLATE

Stop

1шт.

5

0C

ORDER COMPONENTS

Lever, MFH; Refer To Fig. 10.16[02.2]

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

86628699

U-BOLT

5/16" x 1-1/8" x 2"

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

86627785

SELF-TAP SCREW

6шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.
