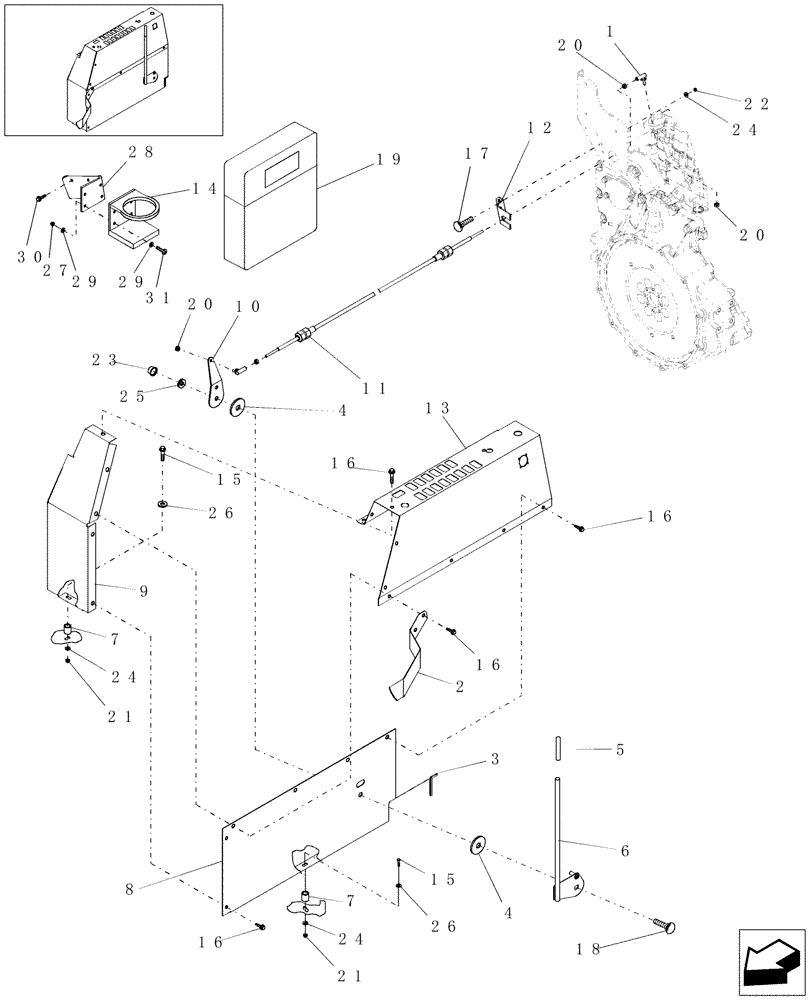

Запчасти Case IH WDX1002S (10.14[3]) - CONSOLE, RH (10) - OPERATORS PLATFORM/CAB

1

103557

BALL JOINT

2шт.

2

86581834

BRACKET

1шт.

3

291186

PROTECTION STRIP,9.9mm W

L = 12"

1шт.

Cut to fit

1шт.

4

144134

DISC

2шт.

5

9842393

HANDLE GRIP

1шт.

6

87040489

LEVER ASSY.

1шт.

7

86620629

SPACER

4шт.

8

87039981

PANEL ASSY.

1шт.

9

87039983

PANEL ASSY.

1шт.

10

87040492

ARM

1шт.

11

87041372

CABLE ASSY.

1шт.

12

87017350

BRACKET

1шт.

13

87039980

TOP

Console

1шт.

14

86620959

HOLDER

Cup

1шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

16

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

9шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

18

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

19

86595866

BOX

Plastic, Manual

1шт.

20

425-114

NUT,1/4"-28, G5

4шт.

21

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

22

425-105

NUT,5/16"-18, G5

2шт.

23

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

26

495-21038

WASHER,5/16"

4шт.

27

825-1404

NUT,M4, Cl 8

4шт.

28

86624233

BRACKET

1шт.

29

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

8шт.

30

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

3шт.

31

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

4шт.
