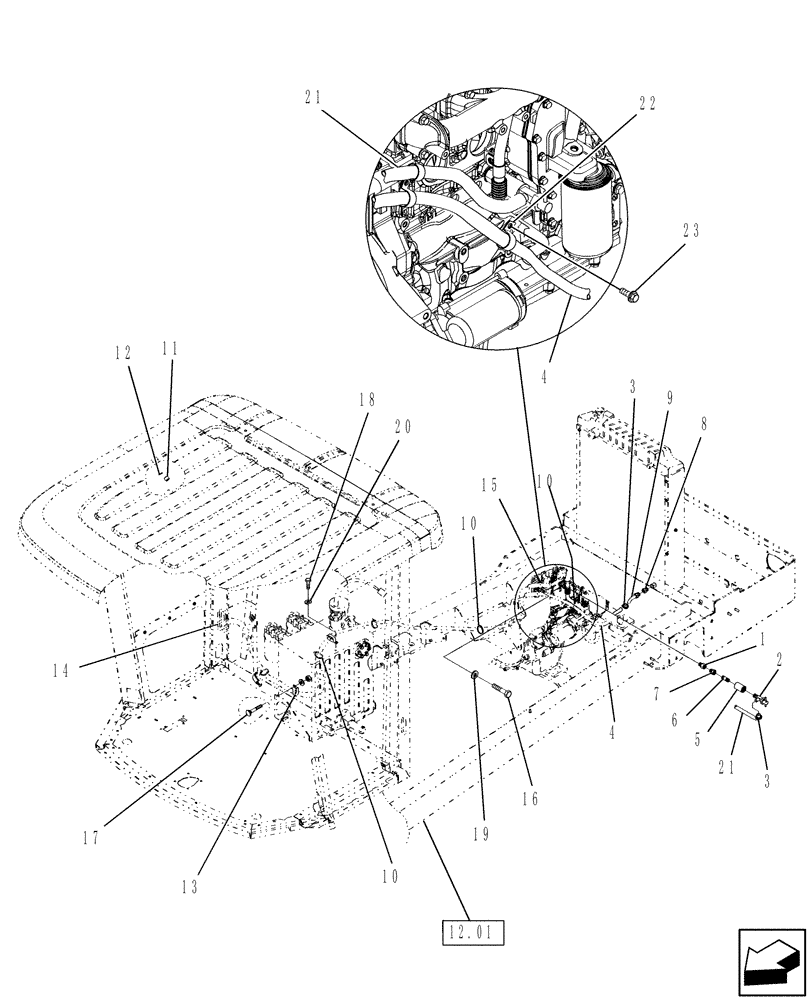

Запчасти Case IH WDX1002S (10.11[3]) - HEATER LINES (10) - OPERATORS PLATFORM/CAB

1

87012296

HYD CONNECTOR

1шт.

2

83961305

VALVE

1шт.

3

9706921

HOSE CLAMP,12.7mm - 35mm

6шт.

4

87349480

HEATER HOSE,15.88 mm ID x 12500.0 mm, SAE 20R3

1шт.

20' Needed; cut to fit

1шт.

5

88982

COUPLING

1шт.

6

88093

NIPPLE

1шт.

7

87572

BUSHING

1шт.

8

247636

ADAPTER

1шт.

9

134311

HYD CONNECTOR

1шт.

10

249730

SECURING STRAP,8" L

1шт.

11

274481

KNOB

1шт.

12

280236

COTTER PIN,1/16" x 1/2"

1шт.

13

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

616182

GROMMET

1шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

17

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

18

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

21

87349480

HEATER HOSE,15.88 mm ID x 12500.0 mm, SAE 20R3

1шт.

18' Needed; cut to fit

1шт.

22

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

23

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.
