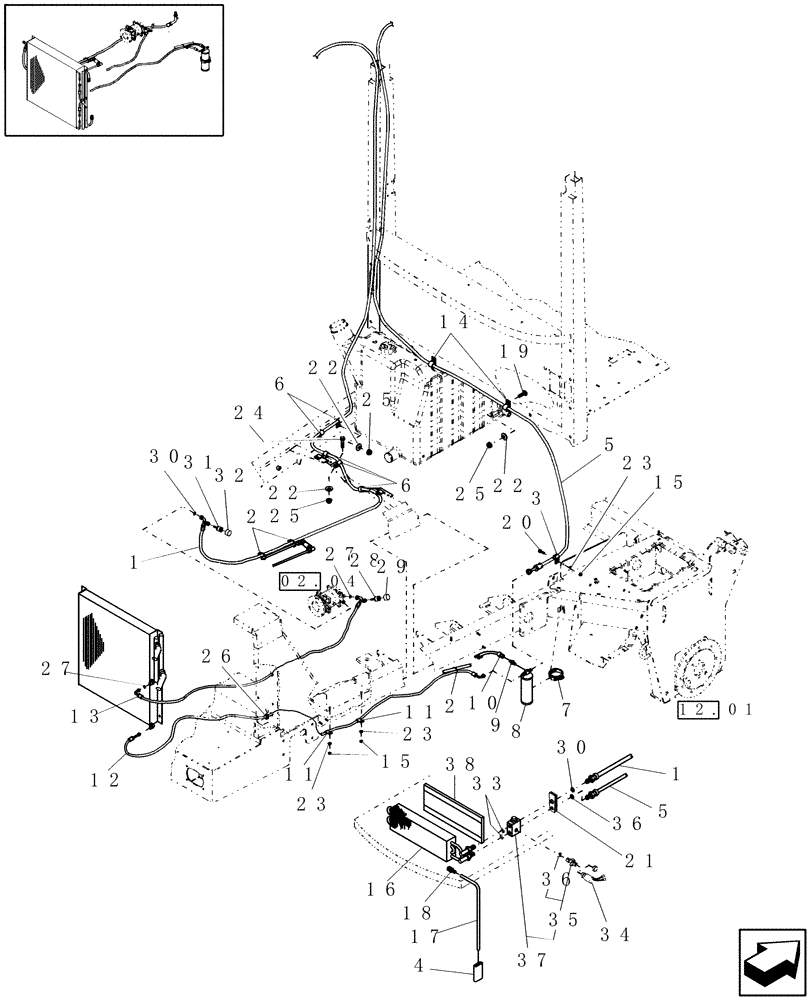

Запчасти Case IH WDX1002S (10.10[2]) - AIR CONDITIONING LINE (10) - OPERATORS PLATFORM/CAB

1

9827062

FLEXIBLE HOSE

Includes: Ref.s 30 (2), 31, & 32

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

3

76403

CLAMP

1шт.

4

635136

CHECK VALVE

1шт.

5

87042794

HOSE ASSY.

Includes: O-Ring

1шт.

5

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

6

515-23254

CLAMP,1", Insul, 3/8" Bolt

5шт.

7

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

1шт.

8

9827053

RECEIVER-DRYER

1шт.

9

9827057

HYD CONNECTOR

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

10

9849562

PRESSURE SWITCH

1шт.

11

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

12

86604134

HOSE ASSY.

1шт.

13

87050065

HOSE ASSY.

Includes: Ref. 27 (2), 28, & 29

1шт.

14

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

15

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

16

627257

EVAPORATOR

Evaporator

1шт.

17

632767

HOSE

Drain, L = 85"

1шт.

Cut to fit

1шт.

18

859062

HYD CONNECTOR

1шт.

19

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

20

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

21

632272

GROMMET

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

24

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

25

425-285

FLANGE NUT,Flg, 5/16"-18, G5

8шт.

26

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

1шт.

27

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

2шт.

28

86511147

CONTROL VALVE

VALVE, CHARGE HIGH SIDE

1шт.

29

86511148

CAP

1шт.

30

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(.551" ID x .070" Thk)

2шт.

31

86511146

VALVE,Shrader

Valve

1шт.

32

86511149

CAP

1шт.

33

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

2шт.

34

274566

SWITCH, A/C LOW PRES

1шт.

35

9827057

HYD CONNECTOR

Includes: O-Ring (1), Ref. 36

1шт.

36

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

2шт.

37

9827056

HYDRAULIC VALVE

Includes: Valve, Ref. 35

1шт.

38

773618

FOAM INSULATION

1шт.
