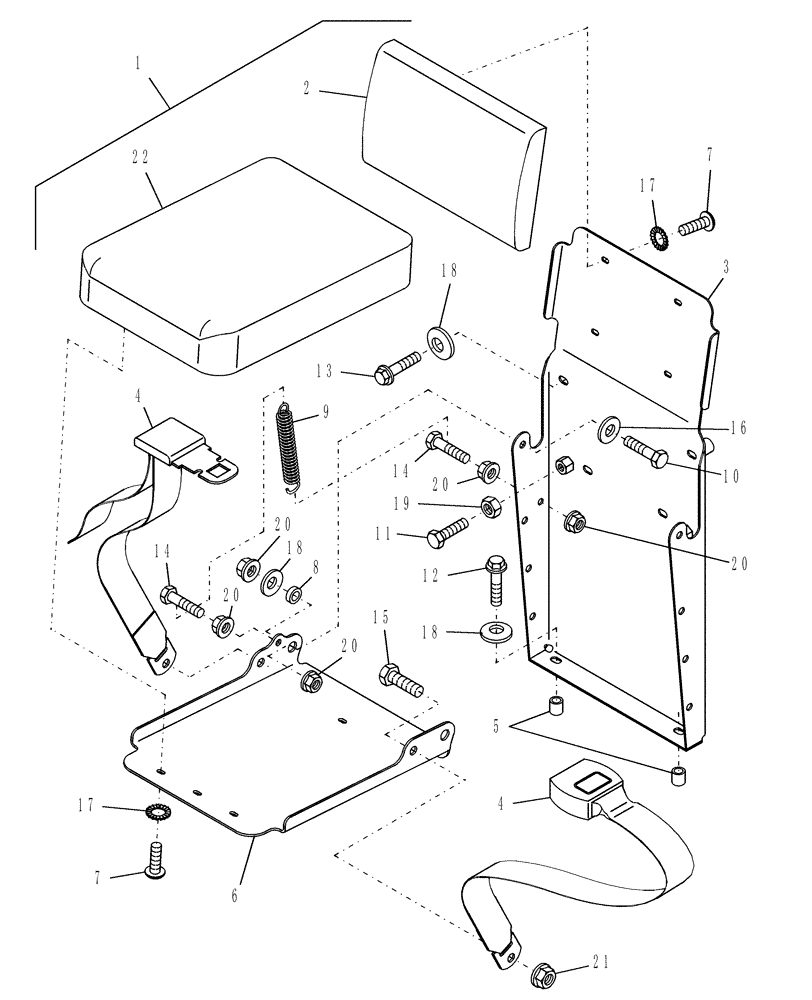

Запчасти Case IH WDX1002S (10.07[04]) - INSTRUCTORS SEAT KIT (10) - OPERATORS PLATFORM/CAB

1

716908016

DIA KIT, HARVESTER

Includes: Ref.s 2 Thru 22

1шт.

2

86621083

CUSHION, SEAT

1шт.

3

86622404

SEAT SUPPORT

Back

1шт.

4

86530940

SAFETY BELT ,48.00 mm W

1шт.

5

86620629

SPACER

2шт.

6

86620625

SEAT SUPPORT

1шт.

7

80590099

SCREW,Truss, 1/4" - 20 x 3/4"

Truss Hd, 1/4"-20 x 3/4"

8шт.

8

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

9

86620630

SPRING

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

13

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

16

495-21044

WASHER,3/8"

2шт.

17

493-41026

LOCK WASHER,Ext Tooth, 1/4"

8шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

22

86621084

CUSHION

Back

1шт.

23

86625129

PLUG,Dome, 1" Hole, Nylon

Floor

2шт.

Used in "Less Instructor Seat" Option

1шт.

Not Shown

1шт.

24

606463

PLUG,Dome, 1.093" hole, Nylon

Back Panel

4шт.

Used in "Less Instructor Seat" Option

1шт.

Not Shown

1шт.

25

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

Used in "Less Instructor Seat" Option

1шт.

Not Shown

1шт.
