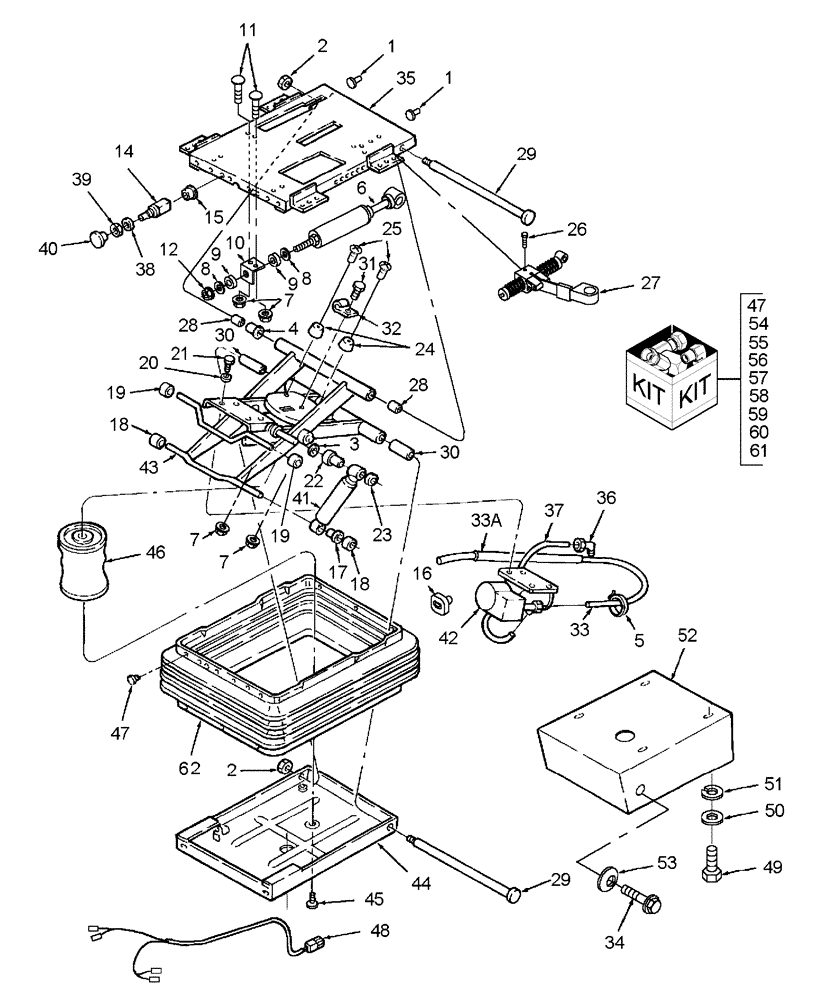

Запчасти Case IH WDX1002S (10.07[02.2]) - SEAT, AIR SUSPENSION, LOWER (10) - OPERATORS PLATFORM/CAB

86618599

SEAT ASSY.

Complete

1шт.

86555664

SUSPENSION

Air

1шт.

Includes: Ref.s 1 thru 33A & 35 thru 48

1шт.

1

86508390

BUMPER

Rubber, Horiz.

2шт.

2

232-4146

NUT,3/8"-16, GC

1шт.

3

86508384

SPACER

Shock

1шт.

4

9845757

DRIVE BUSHING

Shock

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

6

NSS

NOT SOLD SEPARAT

Shock Absorber, Part of F/Aft Shock Abs. Kit Ref. 54

1шт.

7

280129

NUT,1/4"-20

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

9

9845774

RUBBER WASHER

2шт.

10

86508385

BRACKET

Shock Mounting

1шт.

11

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

12

280736

NUT,5/16"-18, GC

1шт.

13

NSS

NOT SOLD SEPARAT

Serial Decal

1шт.

14

86556263

CONTROL VALVE

Air

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, 1/4" Tube to NPT, Part of Air Line Fit Kit Ref. 57

1шт.

16

276467

BUMPER

1шт.

17

86000902

BUSHING

Shock

1шт.

18

NSS

NOT SOLD SEPARAT

Roller, Part of Roller & Bearing Kit Ref. 55

2шт.

19

NSS

NOT SOLD SEPARAT

Roller Assy., Delrin, Part of Roller & Bearing Kit Ref. 55

2шт.

20

495-31022

WASHER,#10

2шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

22

276469

NYLON BEARING,0.504" ID x 0.628" OD x 0.562"

Shock Sleeve, Upper Bearing

1шт.

23

276801

PUSH-ON NUT

Push, 1/2"

1шт.

24

86508389

BUMPER

2шт.

25

280241

SCREW,Sl Fil Hd, 1/4" - 20 x 7/8"

2шт.

26

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

27

86000906

LATCH

1шт.

28

NSS

NOT SOLD SEPARAT

Roller, Delrin, Narrow, Part of Roller & Bearing Kit Ref. 55

2шт.

29

9845764

SHAFT

1шт.

30

276481

TUBE

Tube

2шт.

31

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

32

134579

WIRE CLAMP,J

1шт.

33

NSS

NOT SOLD SEPARAT

Nylon Tube, 1/4 x 26-1/2", Part of Air Line & Fit Kit Ref. 57

1шт.

33a

NSS

NOT SOLD SEPARAT

Flex Tube

1шт.

34

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

35

9845767

HOUSING

Upper

1шт.

36

NSS

NOT SOLD SEPARAT

Male EL 1/4 Tube to 1/8 NPT Connector, Included in Kit Ref. 57 and Kit Ref. 60

1шт.

37

NSS

NOT SOLD SEPARAT

Nylon Tube, 1/4" x 11-5/8", Part of Air Line & Fit Kit Ref. 57

1шт.

38

88502

LOCK WASHER

Int T, Heavy, 5/8"

1шт.

39

425-1110

NUT,5/8"-18, G5

1шт.

40

NSS

NOT SOLD SEPARAT

Air Valve Knob W/ Set Screw, Part of Ref. #14, Air Valve

1шт.

41

NSS

NOT SOLD SEPARAT

Shock Absorber, Part of Suspension Shock Abs. Kit Ref. 59

1шт.

42

NSS

NOT SOLD SEPARAT

Compressor, Part of Compressor & Wire Harness Kit Ref. 56

1шт.

43

86556262

ARM

1шт.

44

86556264

HOUSING

1шт.

45

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

46

9845760

SPRING

Air

1шт.

47

9845759

KIT

Boot Button Service; Includes 23 Clips

1шт.

48

NSS

NOT SOLD SEPARAT

Wire Harness, Part of Compressor & Wire Harness Kit Ref. 56

1шт.

49

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

50

495-21038

WASHER,5/16"

4шт.

51

492-11031

LOCK WASHER,5/16"

4шт.

52

86551533

SUPPORT

2шт.

53

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

54

86502152

KIT

Front & Aft Shock Absorber, Includes Ref. 4, 6, 7, 8, 9, 12 & 47

1шт.

55

86520889

ROLLER BEARING

Roller & Bearing, Includes Ref. 4,17,18,19, 22, 23, 28, 30 & 47

1шт.

56

9845753

KIT

Compressor & Wire Harness, Includes Ref. 5, 20, 33, 42, 48, Compressor Bracket, & 2ea Self Tapping Screws, 8 x 1-1/4"

1шт.

57

9845761

KIT

Air Line & Fit, Includes Ref. 5, 15, 32, 33, 36 &37

1шт.

58

9845758

KIT

Suspension Boot, Includes Ref. 47 & 62

1шт.

59

9845755

KIT

Suspension Shock Abs., Includes Ref. 17, 22, 23 & 41

1шт.

60

86520856

KIT

Seat Air Spring, Includes Ref. #36, 46 & 47

1шт.

61

86502158

KIT

Seat Isolator Spring, Includes Ref. 27

1шт.

62

NSS

NOT SOLD SEPARAT

Boot; Included in Suspension Boot Kit, Ref. 58

1шт.
