Запчасти Case IH WDX1002S (10.07[02.1]) - SEAT, AIR SUSPENSION, UPPER (10) - OPERATORS PLATFORM/CAB

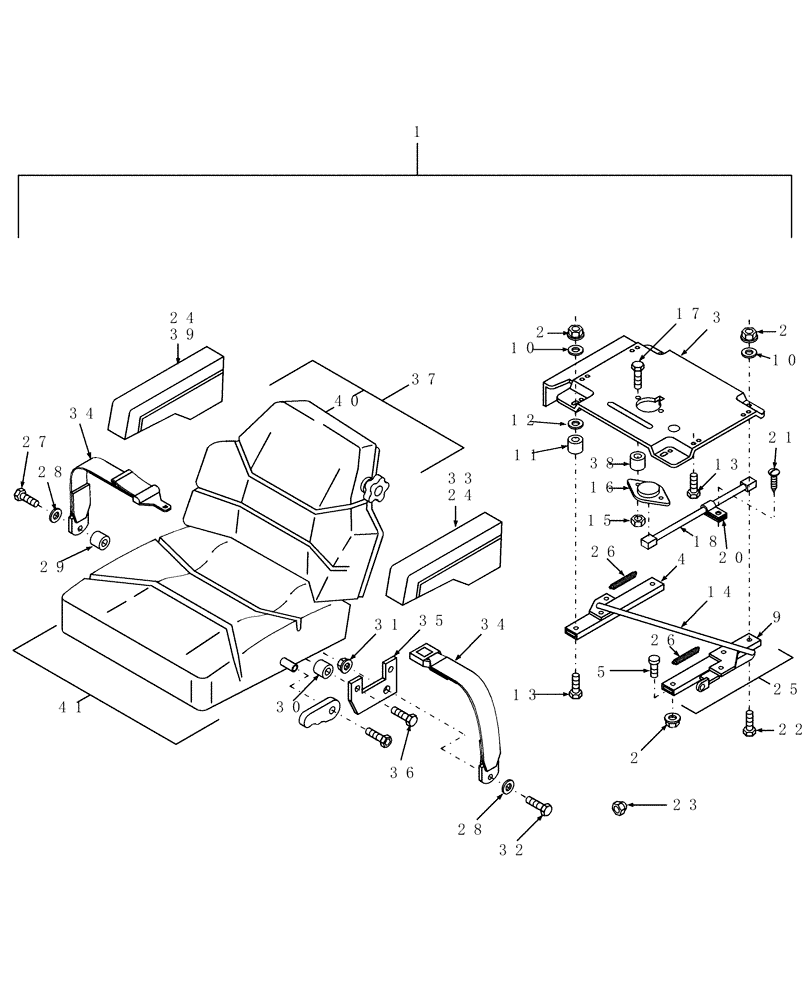

Схема запчастей Case IH WDX1002S - (10.07[02.1]) - SEAT, AIR SUSPENSION, UPPER (10) - OPERATORS PLATFORM/CAB
14
2
29
34
37
26
17
31
2
10
22
30
33
5
41
26
28
40
23
18
2
32
4
10
27
9
24
28
15
38
1
13
24
12
36
16
13
21
39
25
3
20
11
34
35

Артикул

Название

Примечание

Количество

1

86618599

SEAT ASSY.

Complete

1шт.

2

280736

NUT,5/16"-18, GC

8шт.

3

86556250

ADAPTER

1шт.

3

86641127

PLATE

Adapter

1шт.

4

NSS

NOT SOLD SEPARAT

Locking Slide, Part of Ref. 25

1шт.

5

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

6

86555664

SUSPENSION

Air (Not Shown)

1шт.

See Fig. "Air Suspension, Lower"

1шт.

7

NSS

NOT SOLD SEPARAT

Boot, Air Suspension, Part of Kit 9845758, (Not Shown)

1шт.

See Fig. "Air Suspension, Lower"

1шт.

8

NSS

NOT SOLD SEPARAT

Clips, Part of Kit 9845758 (Not Shown)

22шт.

9

NSS

NOT SOLD SEPARAT

Locking Slide W/ Handle, Part of Ref. 25

1шт.

10

495-11034

WASHER,5/16", SAE

4шт.

11

143541

SPACER

2шт.

12

495-11047

WASHER,7/16", SAE

4шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

14

NSS

NOT SOLD SEPARAT

Slide Latch Wire, Part of Ref. 25

1шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.

16

86502159

KIT

Seat

1шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

9846601

WIRE HARNESS

Seat Switch

1шт.

19

NSS

NOT SOLD SEPARAT

Serial # Decal (Not Shown)

1шт.

20

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

21

88568

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

23

9845758

KIT

Push Nut

3шт.

24

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

1шт.

25

86640351

KIT

Locking Slides, Includes Ref. 4, 9, 14, & 26

1шт.

26

9845781

SPRING

Part of Ref. 25

2шт.

27

86512040

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

28

48917

WASHER

15/32" ID

2шт.

29

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

1шт.

30

696365

SPACER

2шт.

31

280980

NUT,7/16"-14, GC

1шт.

32

50217

BOLT

1шт.

33

1981818C1

ARMREST

LH, Includes: Ref. 24

1шт.

34

86530940

SAFETY BELT ,48.00 mm W

1шт.

35

86555665

BRACKET

1шт.

36

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

37

86639484

CUSHION

Backrest

1шт.

38

86508380

SPACER

Seat Presence Switch

2шт.

39

9846602

ARMREST

RH, Includes: Ref. 24

1шт.

40

86639817

BACKREST

Kit, Seat Cover

1шт.

41

86639483

CUSHION

Seat Pan

1шт.

Выбрано товаров: 44
