Запчасти Case IH WDX1002S (10.02[2]) - CAB ROOF (10) - OPERATORS PLATFORM/CAB

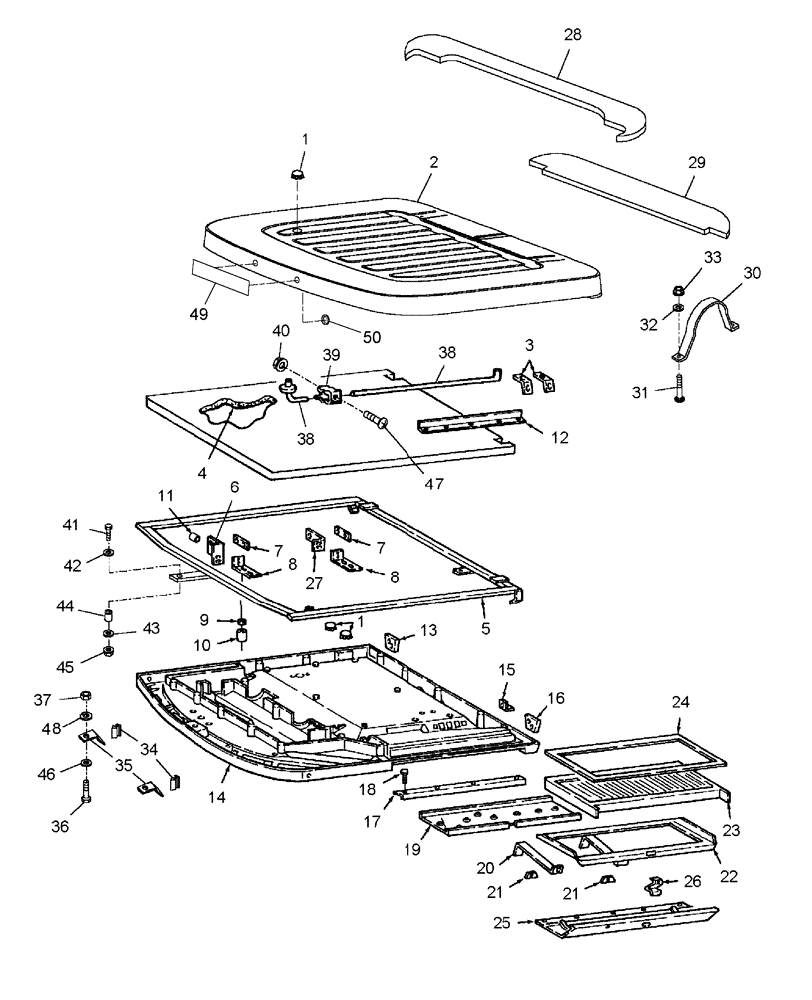

Схема запчастей Case IH WDX1002S - (10.02[2]) - CAB ROOF (10) - OPERATORS PLATFORM/CAB
38
47
1
43
20
10
48
7
4
24
38
27
19
35
9
7
46
33
31
29
44
34
37
30
26
42
17
21
40
49
16
8
1
45
39
36
8
6
32
13
21
41
50
25
23
3
2
28
14
22
5
12
15
11
18

Артикул

Название

Примечание

Количество

1

353-412

PLUG,Dome, 1.093" hole, Nylon

5шт.

2

86611719

ROOF

Cab

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

2

281008

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

17шт.

2

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

2

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

1шт.

2

495-21019

WASHER,#8

1шт.

2

717272

DRIVE BUSHING

1шт.

2

86523932

WASHER

Special

17шт.

2

495-21031

WASHER,1/4"

17шт.

2

495-21038

WASHER,5/16"

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

3

686146

ANGLE

1шт.

3

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

3

495-11028

WASHER,1/4", SAE

4шт.

4

86523002

FOAM INSULATION

1шт.

5

86521998

ROOF FRAME

1шт.

5

281008

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

14шт.

5

76028

WASHER,9/32" x 1" x .06" Thk

14шт.

5

86523932

WASHER

Rubber

14шт.

6

86640246

SUPPORT

Angle

1шт.

6

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

1шт.

6

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

6

495-11034

WASHER,5/16", SAE

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

6

280736

NUT,5/16"-18, GC

2шт.

7

639044

LINK BLOCK

2шт.

7

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

2шт.

7

495-11034

WASHER,5/16", SAE

1шт.

7

280736

NUT,5/16"-18, GC

2шт.

8

639037

LEVER

2шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

8

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

8

495-21044

WASHER,3/8"

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

10

632607

SPACER

Split

2шт.

11

25457

SPACER

6шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

11

493-81008

LOCK WASHER,Int Tooth, 5/16"

1шт.

11

495-21038

WASHER,5/16"

1шт.

11

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

11

425-105

NUT,5/16"-18, G5

1шт.

12

86640245

ANGLE

1шт.

12

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

5шт.

12

492-11010

LOCK WASHER,#10

5шт.

12

88826

LOCK NUT,#10-24, GA

5шт.

13

677601

GROMMET

1шт.

14

86574081

ROOF

1шт.

14

87254

SCREW,Slotted Truss Hd, 1/4" - 20 x 1 1/2"

3шт.

14

495-21031

WASHER,1/4"

3шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

14

174117

DECAL

Caution

1шт.

15

86640244

SUPPORT

Prop

1шт.

15

88946

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

1шт.

16

677602

GROMMET

1шт.

17

685116

ANGLE

1шт.

18

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

6шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

19

86640247

PAN

1шт.

20

86640248

SPRING

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

20

493-21026

LOCK WASHER,Int Tooth, 1/4"

2шт.

21

229-992

NUT

1/4"

2шт.

22

631225

TRAY

1шт.

23

627749

CAB FILTER

1шт.

24

632748

RUBBER SEAL

1шт.

25

631221

DOOR

1шт.

26

80763203

LATCH

1шт.

26

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

6шт.

26

492-11025

LOCK WASHER,1/4"

3шт.

26

229-992

NUT

1/4"

1шт.

27

639043

SUPPORT

Angle

1шт.

27

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

2шт.

27

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

27

495-11034

WASHER,5/16", SAE

2шт.

27

280736

NUT,5/16"-18, GC

2шт.

28

86526676

U-BRACKET

Ceiling

1шт.

29

87046132

FILLER

1шт.

30

86543267

BRACKET

1шт.

31

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

32

495-21038

WASHER,5/16"

2шт.

33

280736

NUT,5/16"-18, GC

2шт.

34

216328

BUMPER

1шт.

35

86626247

BRACKET

2шт.

36

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

425-105

NUT,5/16"-18, G5

2шт.

38

86523003

SUPPORT

1шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

39

86631407

SPRING CLIP

1шт.

40

280129

NUT,1/4"-20

1шт.

41

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

42

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

43

86523932

WASHER

Rubber, 1/2" ID x 1" OD

1шт.

44

174265

GROMMET

5/16" ID x 1" OD

2шт.

45

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

46

495-21038

WASHER,5/16"

4шт.

47

84467

SCREW,Slotted Truss Hd, 1/4" - 20 x 1/2"

2шт.

48

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.

49

186882A1

EMBLEM CASE/IH

1шт.

50

1536080C1

PUSH-ON NUT

Push, 1/4"

2шт.

Выбрано товаров: 105
