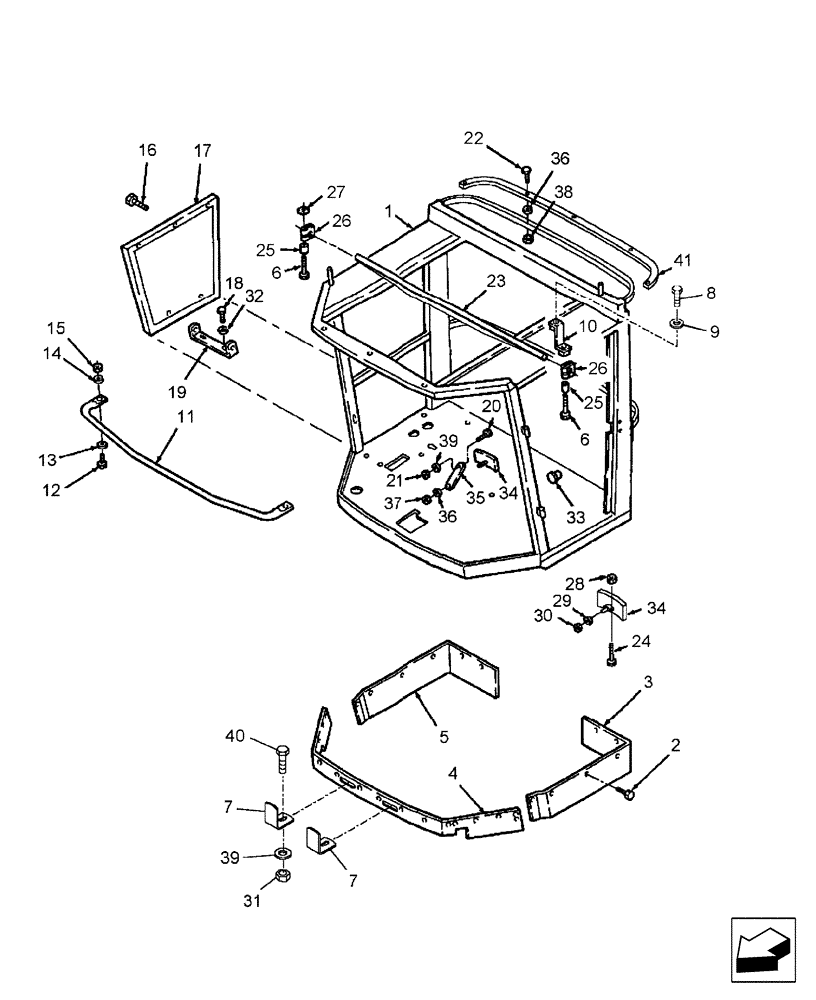

Запчасти Case IH WDX1002S (10.01[2]) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

87039964

FRAME ASSY

1шт.

1

281008

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

17шт.

1

86523932

WASHER

17шт.

1

495-21031

WASHER,1/4"

17шт.

2

86636801

SELF-TAP SCREW

WH, S#3 Pt, #10 x 1"

24шт.

3

87043047

SKIRT

LH

1шт.

4

87031810

SKIRT

Front

1шт.

5

87043049

SKIRT

RH

1шт.

6

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

7

86554435

BRACKET

2шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

10

86548366

BRACKET

1шт.

11

86624425

HANDRAIL

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

13

495-21044

WASHER,3/8"

8шт.

14

492-11038

LOCK WASHER,3/8"

5шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

3шт.

17

86534789

PANEL

Includes: Sealing Strip

1шт.

17

275053

SEALING STRIP

1/2" x 1" x 123" L

1шт.

18

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

695693

SUPPORT

2шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

15шт.

21

425-285

FLANGE NUT,Flg, 5/16"-18, G5

15шт.

22

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

5шт.

23

86640275

TUBE

Mirror

1шт.

24

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

25

64127

SPACER

Split Tube

2шт.

26

86640274

CLAMP

2шт.

27

80607

SQUARE NUT,Sq, 1/2"-13

1шт.

28

825-1404

NUT,M4, Cl 8

2шт.

29

492-11031

LOCK WASHER,5/16"

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

33

556794

PLUG

Door Hinge Pillar

1шт.

Not used W/Instructor Seat Installed

1шт.

34

86011713

REAR VIEW MIRROR

1шт.

35

9840315

BRACKET

Mirror Includes: Ref. 36 & 37

1шт.

36

492-11025

LOCK WASHER,1/4"

6шт.

37

425-114

NUT,1/4"-28, G5

1шт.

38

425-104

NUT,1/4"-20, Cl 5

5шт.

39

492-11031

LOCK WASHER,5/16"

6шт.

40

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

41

NSS

NOT SOLD SEPARAT

Support

1шт.

41

232-41412

LOCK NUT,3/4"-10, GC

4шт.
