Запчасти Case IH WDX1002S (09.10) - FLOW DIVIDER VALVE, DRAPER OPTION (09) - IMPLEMENT LIFT

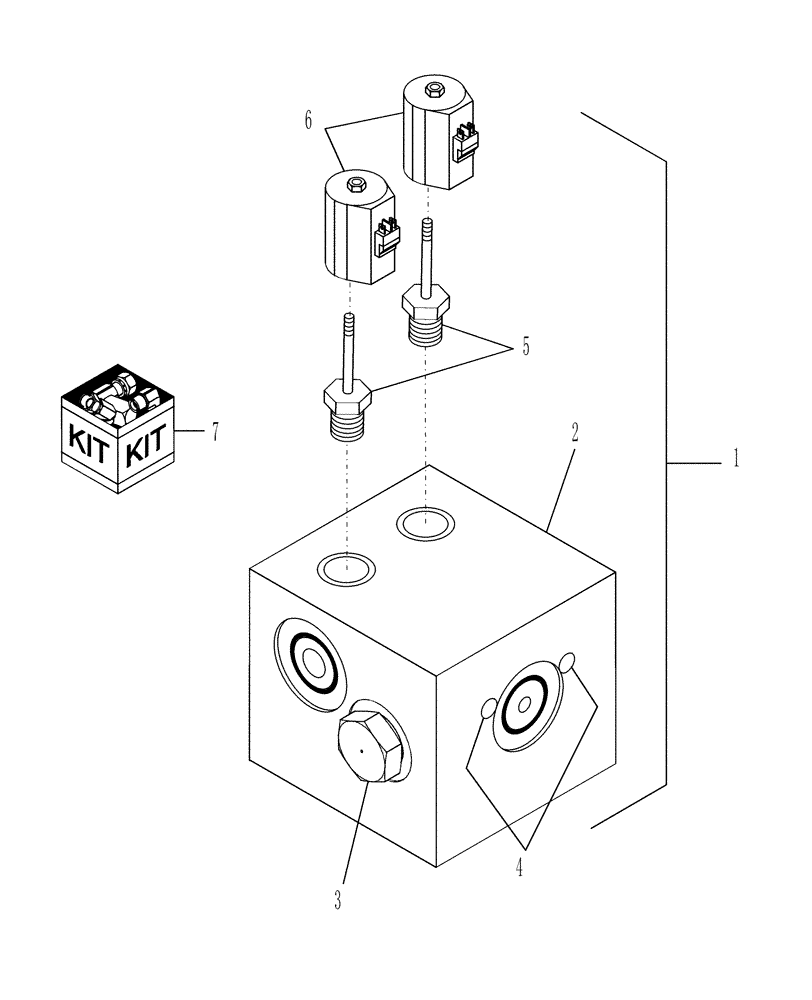

Схема запчастей Case IH WDX1002S - (09.10) - FLOW DIVIDER VALVE, DRAPER OPTION (09) - IMPLEMENT LIFT
5
4
3
2
7
1
6

Артикул

Название

Примечание

Количество

1

87398498

HYDRAULIC VALVE

Valve, Flow Divider; Includes: Ref.s 2 Thru 6, As Indicated

1шт.

WDX1902 & WDX2302

1шт.

1

87545543

FLOW DIVIDER

Valve, Flow Divider; Includes: Ref.s 2 Thru 6, As Indicated

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold

1шт.

3

87546650

FLOW DIVIDER

Valve

1шт.

WDX1902 & WDX2302

1шт.

3

87546649

FLOW DIVIDER

Valve

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

4

NSS

NOT SOLD SEPARAT

Plug

2шт.

5

87740293

SOLENOID VALVE

CartridgeSee Also: Ref. 7

2шт.

6

87352777

SOLENOID

Coil

2шт.

7

86978349

SEAL KIT

Services Ref. 5

1шт.

Выбрано товаров: 13
