Запчасти Case IH WDX1002S (09.05[02]) - MANIFOLD, MAIN, COMPONENTS (09) - IMPLEMENT LIFT

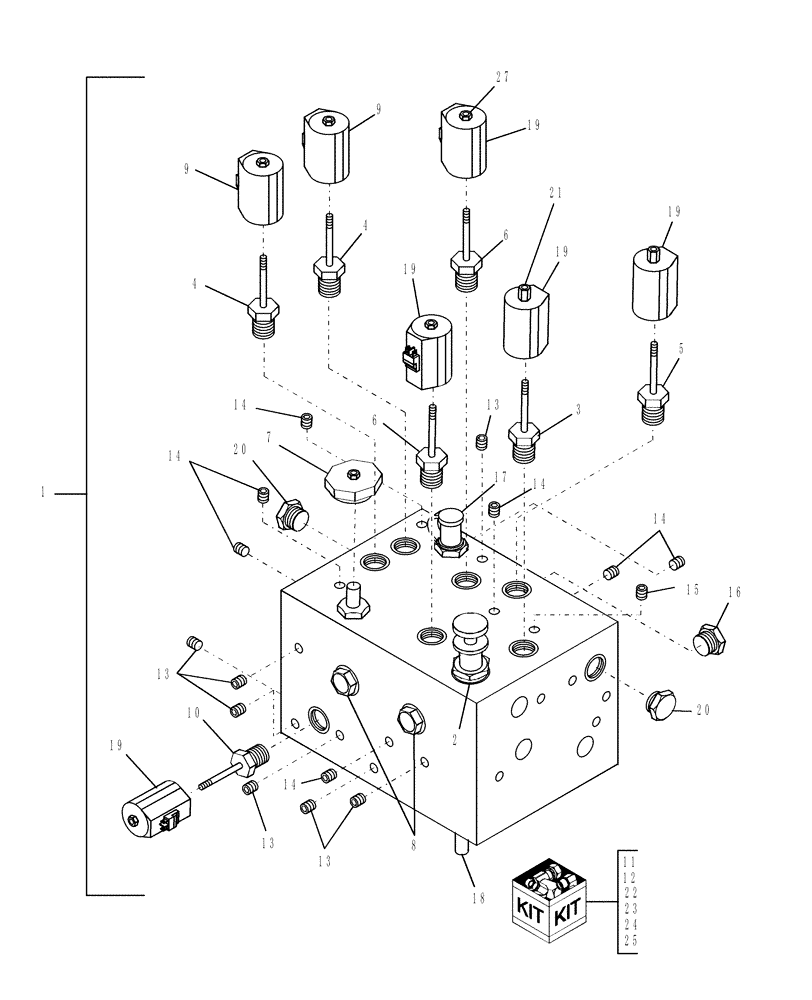

Схема запчастей Case IH WDX1002S - (09.05[02]) - MANIFOLD, MAIN, COMPONENTS (09) - IMPLEMENT LIFT
5
2
18
19
13
22
14
12
13
19
9
8
11
15
25
27
19
14
14
4
16
20
14
4
20
21
6
6
23
14
24
13
1
10
13
7
9
3
19
19
17

Артикул

Название

Примечание

Количество

1

87548449

CONTROL VALVE

Economy

1шт.

2

87030710

VALVE PRESSURE RELIE

1шт.

3

86509019

CONTROL VALVE

Parking Brake

1шт.

4

87740293

SOLENOID VALVE

2шт.

5

87023285

VALVE PRESSURE RELIE

See Also: Ref. 23

1шт.

6

87436627

VALVE

See Also: Ref. 22

2шт.

7

87023284

NEEDLE VALVE

1шт.

8

86547652

HYDRAULIC VALVE

See Also: Ref. 12

2шт.

9

87352777

SOLENOID

2шт.

10

87371977

VALVE PRESSURE RELIE

(SRV); See Also: Ref.s 11 & 26

1шт.

11

87026589

SEAL KIT

Services: Ref. 10

1шт.

12

86547660

SEAL KIT

Services: Ref. 8

1шт.

13

9625178

PLUG,9/16" - 18 ORB

7шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

7шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

16

214389

PLUG,3/4" - 16 ORB

1шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

17

87026252

ASSEMBLY

Includes: Dust Cap & O-Ring Which are not serviced separately

1шт.

18

NS

NOT SERVICED

Threaded Stud

3шт.

19

87352779

SOLENOID

5шт.

20

76349

PLUG,9/16" - 18 ORB

3шт.

Seal W/Loctite 243 & Loctite Primer 7649

1шт.

21

86516836

NUT

1/2"-20, 5/8" High

1шт.

22

86508168

SEAL KIT

Services: Ref. 6

1шт.

23

86509023

SEAL KIT

Services: Ref. 5

1шт.

24

86607646

SEAL KIT

Services: Ref. 2

1шт.

25

86978349

SEAL KIT

Services: Ref. 4 & 7

1шт.

26

87360183

KIT

Valve Wrench; Services: Ref. 10

1шт.

27

590907

NUT

1/2"-20, 11/64" High

1шт.

Выбрано товаров: 32
