Запчасти Case IH WDX1002S (18.02) - ADJUSTABLE WINDROW SHIELD KIT Attachments

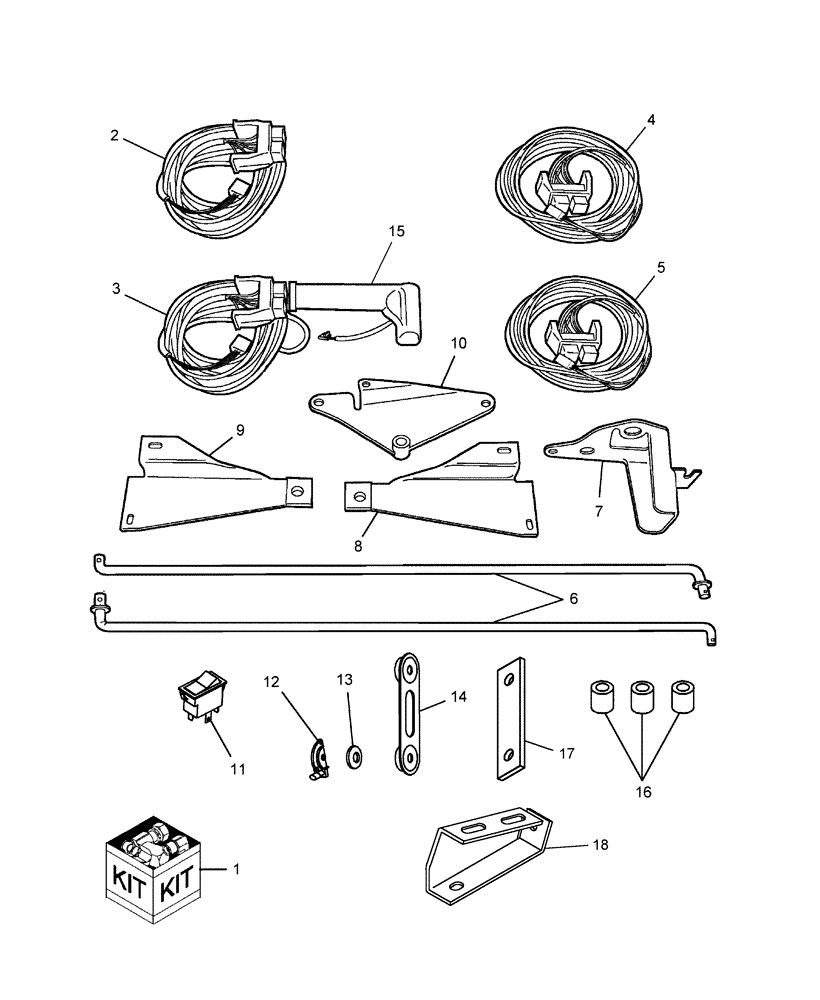

Схема запчастей Case IH WDX1002S - (18.02) - ADJUSTABLE WINDROW SHIELD KIT Attachments
10
11
1
4
3
13
17
14
18
8
15
5
12
7
2
16
6
9

Артикул

Название

Примечание

Количество

1

717131006

DIA KIT, HARVESTER

Adjustable Windrow Shield; Includes: Ref. 2 - 49

1шт.

2

87041191

HARNESS

Wire, WS-F D

1шт.

3

87041190

HARNESS

Wire, WS-C

1шт.

4

87039585

HARNESS

Wire, WS-F

1шт.

5

87039584

HARNESS

Wire, WS-C, E4

1шт.

6

87031550

ROD

2шт.

7

87031547

MOUNTING PARTS

1шт.

8

87031546

ANGLE

RH

1шт.

9

87031545

ANGLE

LH

1шт.

10

87031551

ARM ASSY.

1шт.

11

87023839

WINDSHIELD WIPER SWI

1шт.

12

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

13

87362420

MOUNT

1шт.

14

87031301

DRAG LINK

1шт.

15

87010516

ACTUATOR

1шт.

16

87024378

SPACER

3шт.

17

849495

RUBBER PAD

2шт.

18

87571594

STOP

Stop

2шт.

19

87358009

SEAL

4" x 7"

1шт.

19

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

(1-1/8")

1шт.

20

280-5458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

21

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

22

425-286

FLANGE NUT,Flg, 3/8"-16, G5

9шт.

23

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

24

87031873

SPACER

1шт.

25

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

26

100-3437

SNAP RING,#37, Ext

1шт.

27

492-11010

LOCK WASHER,#10

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

29

495-11053

WASHER,1/2", SAE

1шт.

30

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

31

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

32

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

33

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

34

249730

SECURING STRAP,8" L

10шт.

35

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

37

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

38

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

39

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

40

432-816

COTTER PIN,1/8" x 1"

2шт.

41

495-11066

WASHER,5/8", SAE

2шт.

42

495-21044

WASHER,3/8"

1шт.

43

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1-1/4" OD

2шт.

44

225-14210

NUT,#10-32

1шт.

45

86635011

BUSHING

1шт.

46

87020989

SPACER

1шт.

47

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, M4x10

2шт.

48

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

49

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

2шт.

50

87031553

SPACER

1шт.

51

86974816

SHAFT

1шт.

52

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

Used W/Stop, Ref. 18

1шт.

53

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

Used W/Stop, Ref. 18

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

8шт.

Used W/Stop, Ref. 18

1шт.

55

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

4шт.

56

86624020

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

57

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

Выбрано товаров: 61
