Запчасти Case IH WDX1002S (09.05[01.1]) - MANIFOLD, MAIN, CONNECTORS - NON-DRAPER READY (09) - IMPLEMENT LIFT

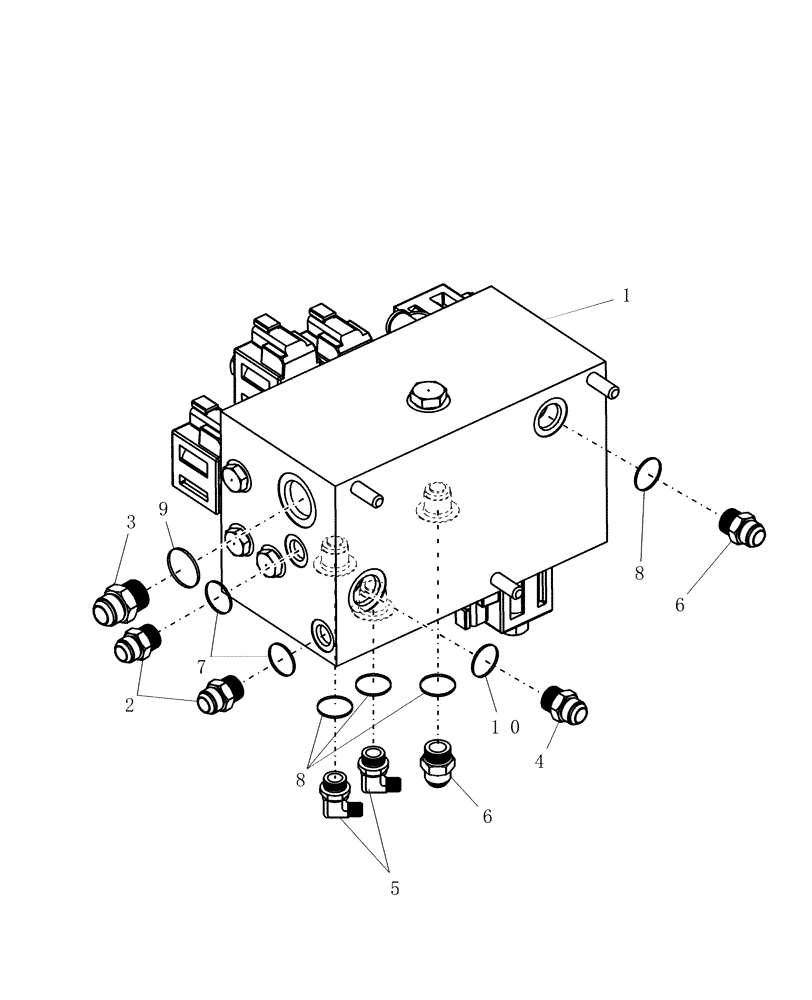

Схема запчастей Case IH WDX1002S - (09.05[01.1]) - MANIFOLD, MAIN, CONNECTORS - NON-DRAPER READY (09) - IMPLEMENT LIFT
10
6
9
3
2
8
6
4
1
5
8
7

Артикул

Название

Примечание

Количество

1

87548449

CONTROL VALVE

Economy; See Fig. 09.05[02]

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Includes: Ref. 7

2шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 9

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 10

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 8

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 8

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
