Запчасти Case IH WDX1002S (09.01[03.1]) - HYDRAULIC CYINDER, HEADER LIFT, NON-DRAPER OPTION (09) - IMPLEMENT LIFT

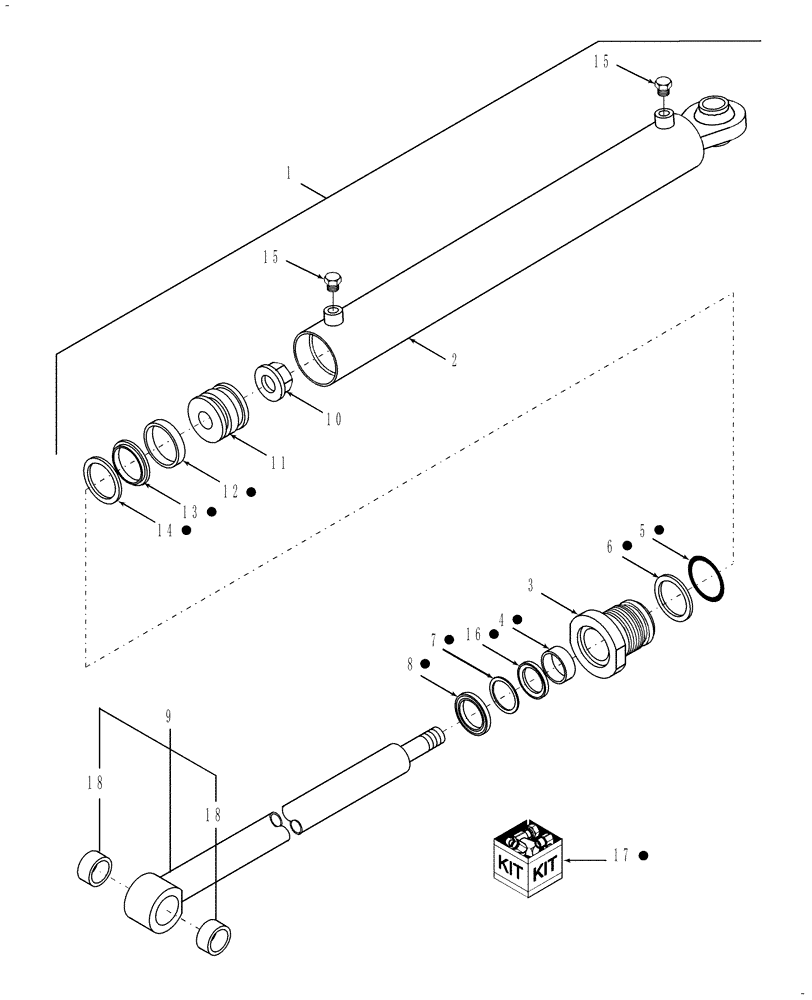

Схема запчастей Case IH WDX1002S - (09.01[03.1]) - HYDRAULIC CYINDER, HEADER LIFT, NON-DRAPER OPTION (09) - IMPLEMENT LIFT
5
16
1
18
3
17
14
11
8
12
18
9
13
15
7
10
6
2
15
4

Артикул

Название

Примечание

Количество

1

87547914

HYDRAULIC CYLINDER

Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder, Barrel; I.D. = 2-1/2"

1шт.

3

87033962

CYLINDER HEAD

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1.250" ID x .50" Thick

1шт.

5

238-5229

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

6

9603673

WASHER

2.397" ID x .040" Thk

1шт.

7

87042812

BACK-UP RING

1шт.

8

87042811

WIPER

Rod

1шт.

9

87547918

PISTON ROD/GLAND

Rod

1шт.

10

86027295

LOCK NUT

1шт.

11

87052241

PISTON

1шт.

12

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

2.004" ID x .50" Thk

1шт.

13

9614420

SEAL

1шт.

14

87042813

BACK-UP RING

1шт.

15

214389

PLUG,3/4" - 16 ORB

2шт.

16

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Rod

1шт.

17

87042809

SEAL KIT

1шт.

18

87033966

BUSHING

2шт.

Выбрано товаров: 18
