Запчасти Case IH WDX1002S (09.01[02]) - HEADER LIFT (09) - IMPLEMENT LIFT

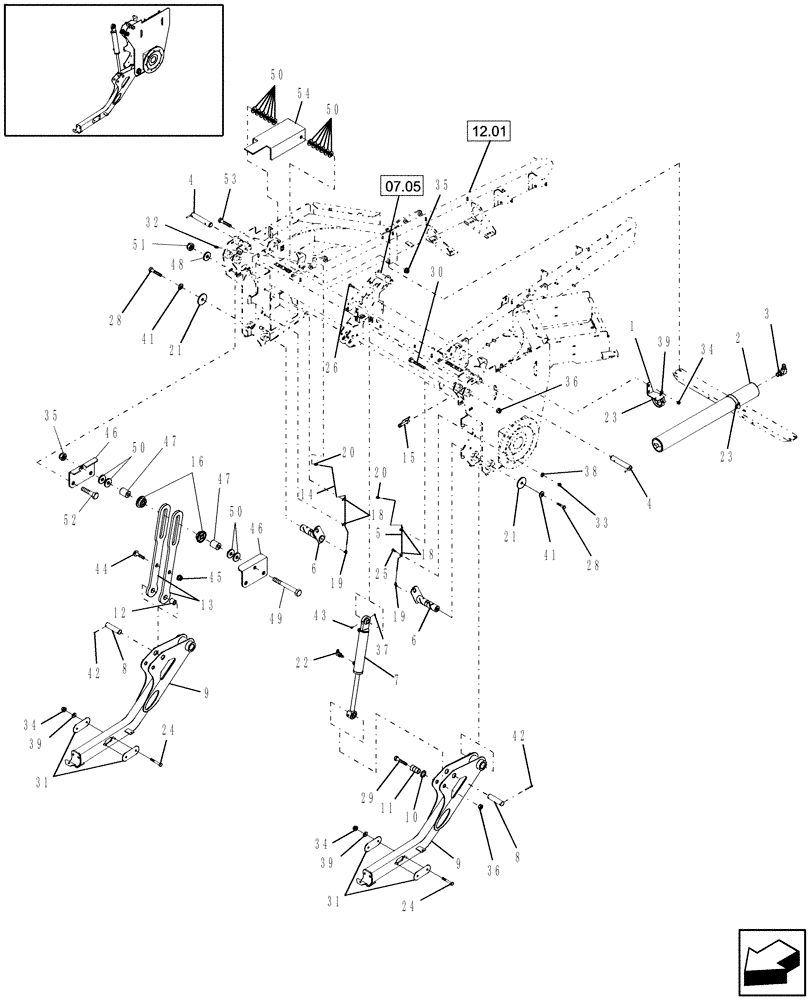

Схема запчастей Case IH WDX1002S - (09.01[02]) - HEADER LIFT (09) - IMPLEMENT LIFT
8
39
25
37
50
28
45
34
24
20
42
31
52
49
30
14
46
13
42
21
41
35
43
19
6
50
12
10
34
28
15
53
46
32
34
31
5
11
7
21
1
16
48
18
20
3
41
8
51
23
29
35
33
47
50
47
36
39
9
24
54
38
22
18
9
4
50
2
44
36
19
39
6
26
4
23

Артикул

Название

Примечание

Количество

1

86974812

SUPPORT

1шт.

2

87054583

ACCUMULATOR

1шт.

3

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

1шт.

4

86974645

PIN

2шт.

WDX1002S & WDX1202S Only

1шт.

5

86596671

TUBE,4.76 mm DIA

1шт.

6

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

7

87547914

HYDRAULIC CYLINDER

Cylinder; Refer To Component Breakdown, Figure 09.01[03.1]

2шт.

Non-Draper Option

1шт.

7

87547927

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 266.7mm Stroke

2.75" x 10.50", Refer To Component Breakdown, Figure 09.01[03.2]

2шт.

Draper Option

1шт.

8

87011404

PIN,38.1mm OD x 117.4mm L

2шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

9

87022732

ARM ASSY.

2шт.

10

191823

WASHER

1.515" ID x 2.25" OD

2шт.

11

86974236

SPACER

2шт.

12

86974360

SPACER

2шт.

13

87039603

LINK

4шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

14

86596672

TUBE,4.76 mm DIA

RH

1шт.

15

647695

PIN,7.94mm OD

2шт.

WDX1002S & WDX1202S Only

1шт.

16

86623463

SPACER

4шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

17

Reference Not Used

1шт.

18

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

19

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

20

11787

FITTING,3/8"-24 Fem x 1/8" NPT

2шт.

21

86502976

WASHER

.78" ID x 3.75" OD x .25" Thk

2шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

Used Only On Early Production Units

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not shown

4шт.

23

337049

CLAMP,137mm - 150mm

2шт.

24

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

25

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

26

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

27

Reference Not Used

1шт.

28

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

29

413-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 5

2шт.

30

413-18120

BOLT,Hex, 1-1/8" - 7 x 7-1/2", Gr 5

2шт.

31

87031061

PLATE

2шт.

32

86050275

LUBE NIPPLE

2шт.

33

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

34

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

35

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

36

86538215

NUT,1 1/8"-7, GB

2шт.

37

788938

PLUG

2шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

40

Reference Not Used

1шт.

41

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

42

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

43

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

44

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

45

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

46

87044438

PLATE

4шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

47

213436

SPACER

4шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

48

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

49

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

Not For Use W/Draper Heads; See Fig. 09.01[04]

1шт.

50

495-21056

WASHER,1/2"

32шт.

51

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

52

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

53

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

54

87044413

CHANNEL

2шт.

Выбрано товаров: 67
