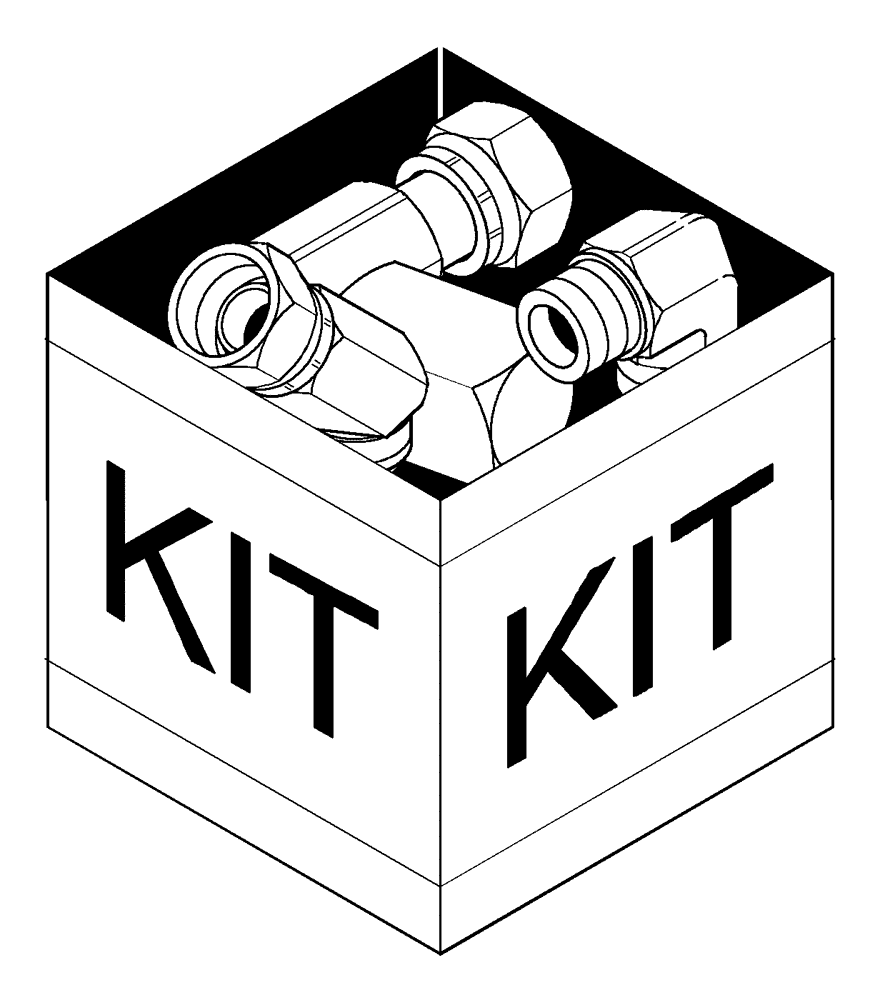

Запчасти Case IH WDX1002S (18.01) - KIT, HYDRAULIC REEL DRIVE Attachments

1

716961046

DIA KIT, HARVESTER

Hydraulic Reel Drive; Inlcudes: Ref.s 2 Thru 22

1шт.

2

87041197

HARNESS

Wire, RS-F D

1шт.

3

87041196

HARNESS

Wire, RS-CD

1шт.

4

87039581

HARNESS

Wire, RS-F E4

1шт.

5

87039580

HARNESS

Wire, RS-C E4

1шт.

6

87023836

SWITCH

Rocker, Reel Speed

1шт.

7

87023835

SWITCH

Speed Mode

1шт.

8

86979915

HOSE,12.70 mm ID x 3378.20 mm, SAE 100R16

2шт.

9

825-1405

NUT,M5, Cl 8

1шт.

10

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

1шт.

11

86564909

WASHER

2шт.

12

86564908

BOLT

Twin Stack

2шт.

13

86563609

CLAMP

Tube

2шт.

14

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

1шт.

15

85999238

COUPLING, QUICK, FEM,3/8" x 3/4" - 16 ORB

1шт.

16

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Straight Thread

1шт.

17

1327736C1

ELBOW

Adapter, 3/4"-16 x 3/4"-16; Includes: O-Ring

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

87053042

PLATE

Twin Cover

2шт.

19

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

20

249730

SECURING STRAP,8" L

10шт.

21

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.
