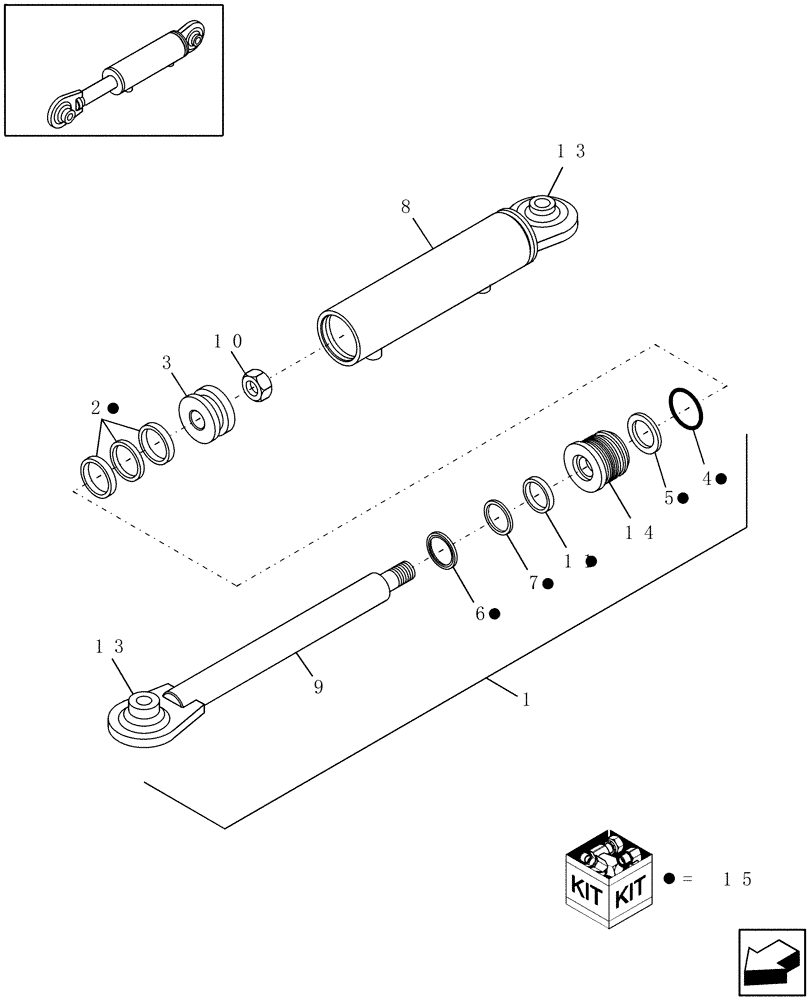

Запчасти Case IH WDX1002S (07.12[1]) - CYLINDER, HYDRAULIC HEADER TILT, .750" OD ROD (07) - HYDRAULIC SYSTEM

1

87024108

HYDRAULIC CYLINDER

Includes: Ref.s 2 Thru 14

1шт.

1

87593870R

REMAN-HYD CYLINDER

WDX1002S, WDX1202, WDX1202S, All (3/05-8/07-), WDX1902 (1/05-8/07), WDX2302 (1/05-), All CASE IH SELF PROPELLED WINDROWER TRACTOR, Reman for New PN 87024108

1шт.

1

87593870C

CORE-HYD CYLINDER

Return Number

1шт.

2

86553483

SEAL

Piston

1шт.

3

87026022

HEAD

1шт.

4

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

5

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up

1шт.

6

87042814

WIPER

Seal

1шт.

7

87042816

BACK-UP RING

1шт.

8

NSS

NOT SOLD SEPARAT

Barrel

1шт.

9

87033959

PISTON ROD/GLAND

1шт.

10

9802182

LOCK NUT,1/2"-20, GB

1шт.

11

87042815

SEAL

1шт.

12

87033960

SPACER

1шт.

Not Shown

1шт.

13

87033961

BUSHING

2шт.

14

87026022

HEAD

1шт.

15

87042810

SEAL KIT

1шт.
