Запчасти Case IH WDX1002S (03.10[2]) - FLYWHEEL AND GEARBOX (03) - TRANSMISSION

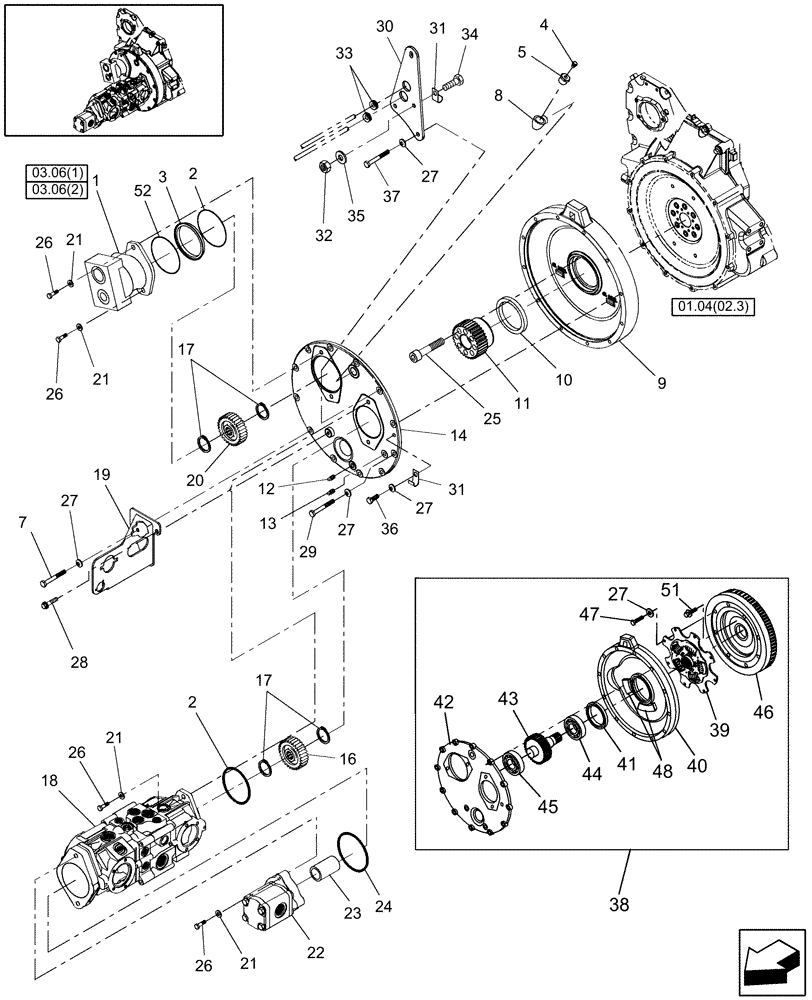

Схема запчастей Case IH WDX1002S - (03.10[2]) - FLYWHEEL AND GEARBOX (03) - TRANSMISSION
1
21
32
18
2
27
52
9
2
3
12
40
23
13
47
45
33
7
37
27
34
24
29
31
44
11
21
19
17
30
14
26
20
46
8
42
41
21
31
03.06(1)
43
25
39
22
5
01.04(02.3)
03.06(2)
17
48
27
16
4
26
28
10
21
26
27
51
26
38
36
27
35

Артикул

Название

Примечание

Количество

1

87574774

PUMP

Pump, Hydraulic, SAUER

1шт.

When updating to the Haldex Pump, 87588019, Use Header Drive Pump Suction Kit 87574359

1шт.

1

87588019R

REMAN-HYD PUMP

WDX1002S,WDX1202,WDX1202S All (3/05-8/07) Reman for New P/N 87574774

1шт.

1

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87588019

PUMP

Pump, Hydraulic, HALDEX

1шт.

1

87588019R

REMAN-HYD PUMP

WDX1002S,WDX1202,WDX1202S All(3/05-8/07)

1шт.

1

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

3

86974942

BUSHING

1шт.

Apply sealant, 732 Dow Corning or 598 Loctite, to Mounting flange of ref 1 and bushing prior to assy.

1шт.

4

9636958

BREATHER

1шт.

5

88979

REDUCER

Bushing, Hex, 3/4" To 3/8"

1шт.

6

Ref. Not Used

1шт.

7

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

2шт.

8

248994

ELBOW

1шт.

9

87040628

BOX

Splitter

1шт.

Prior To PIN HCA041336 (WDX1202), 9/14/06 (All Other Models)

1шт.

9

87345126

BOX

Splitter

1шт.

Required For Tier 3 Engines; Will Also Service Older Units

1шт.

From PIN HCA041336 (WDX1202), 9/14/06 (All Other Models)

1шт.

10

9790499

OIL SEAL,95.25mm ID x 117.65mm OD x 12.7mm Thk

1шт.

11

86635382

GEAR

39T

1шт.

12

80775

DRAIN PLUG,1/4" - 18 NPT

1шт.

13

80781

PLUG,3/8" - 18 NPT

Pipe

1шт.

14

87564862

COVER

1шт.

15

Reference Not Used

1шт.

16

86635383

GEAR

26T

1шт.

17

9617878

SNAP RING,#98, Ext

4шт.

18

87038911

HYDRAULIC PUMP

44 cc; Includes: Ref.'s 21 thru 24 & 26; For Component Breakdown, See Fig. 03.05

1шт.

18

84257940R

REMAN-HYDROSTAT PUMP

Does Not Include Gear Pump

1шт.

18

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

19

86974149

SUPPORT ASSY.

1шт.

Prior To 12/06

1шт.

19

87383130

SUPPORT

Support

1шт.

From 12/06

1шт.

20

86635384

GEAR

30T

1шт.

21

58102

WASHER

6шт.

22

86606917

HYDRAULIC PUMP,10.8 CC

Gear

1шт.

22

86606917R

REMAN-HYD PUMP

WDX1202, WDX1202S, WDX1002S all (3/05-8/07)

1шт.

22

86606917C

CORE-HYDRAULIC PUMP

Return Number

1шт.

23

86502304

COUPLING

1шт.

24

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

25

61-33848

HEX SOC SCREW,3/8"-16 x 3"

8шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

28

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

29

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

11шт.

30

87053366

SUPPORT

1шт.

31

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

33

86528128

GROMMET

2шт.

34

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

36

86512298

BOLT,Hex, M10 x 12mm, Cl 8.8, Full Thd

1шт.

37

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

38

87487881

DIA KIT, HARVESTER

Splitter Gearbox Upgrade Kit, Includes: Installation Instructions

1шт.

39

87652184

DAMPER

1шт.

40

87643062

GEARBOX

Splitter

1шт.

41

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

1шт.

42

87643063

COVER

Splitter Gearbox

1шт.

43

87658697

GEAR SHAFT

39T

1шт.

44

87655456

BALL BEARING,50 mm ID x 90 mm OD x 20 mm

1шт.

44

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

, Start Year: 01-OCT-09

1шт.

45

87659887

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

1шт.

45

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

, Start Year: 01-OCT-09

1шт.

46

2853691

ENGINE FLYWHEEL

1шт.

47

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

48

9840491

MAGNET

Ceramic

2шт.

49

84137676

DECAL

Oil Change, English

1шт.

Not Shown

1шт.

50

84155465

DECAL

Oil Change Tag, English

1шт.

Not Shown

1шт.

51

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

52

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

Выбрано товаров: 74
