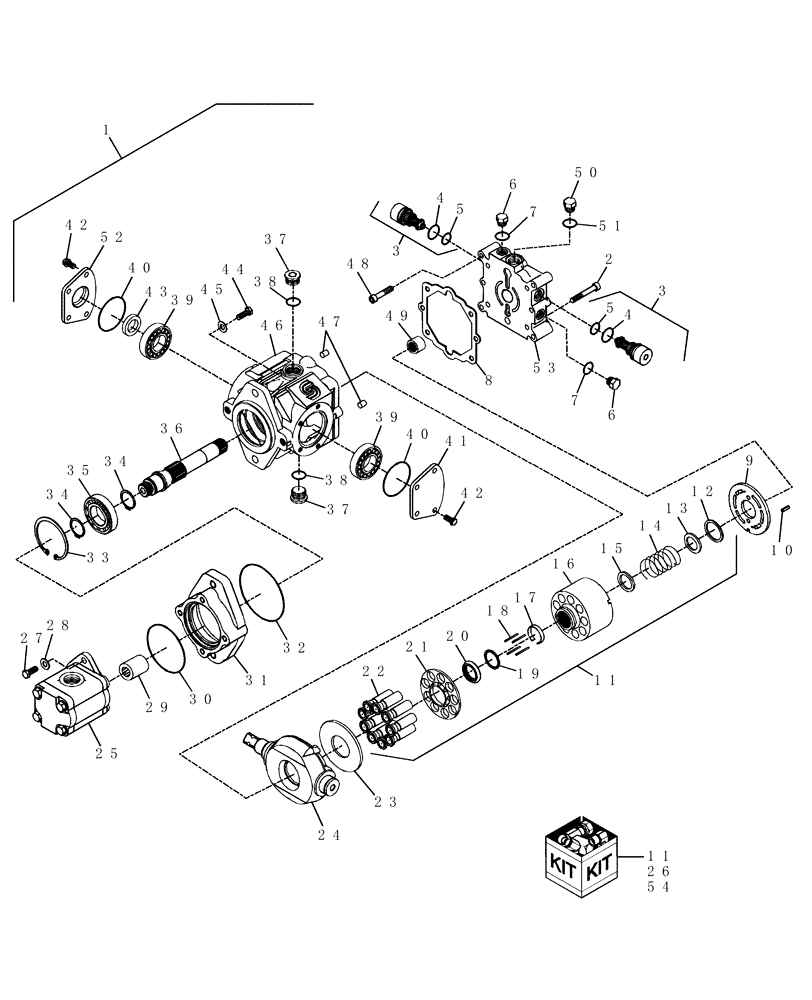

Запчасти Case IH WDX1002S (03.05[01.2]) - TANDEM PUMP, FRONT HALF (03) - TRANSMISSION

1

87038912

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D

1шт.

Also includes: Fig. 03.05[01.3]

1шт.

WDX1902 & WDX2302 Only

1шт.

1

84257942R

REMAN-HYD PUMP

WDX1902 & WDX2302 Only. Does Not Include Gear Pump

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84257942

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D, Replaces 87038912, Start Year: 01-JAN-11

1шт.

WDX1902 & WDX2302 Only

1шт.

1

84257942R

REMAN-HYD PUMP

WDX1902, WDX2302, Does Not Include Gear Pump

1шт.

1

84257942C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87038911

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D

1шт.

WDX1002S, WDX1202S, & WDX1202 Only

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

WDX1002S, WDX1202S, WDX1202 Start Yr.(01/01/2011), Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

84257940

HYDRAULIC PUMP

Tandem, Sauer Danfoss MPT044D, Replaces 87038911, Start Year: 01-JAN-11

1шт.

WDX1002S, WDX1202S, & WDX1202 Only

1шт.

1

84257940R

REMAN-HYDROSTAT PUMP

WDX1002S, WDX1202S, WDX1202 Start Yr.(01/01/2011). Does Not Include Gear Pump

1шт.

1

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Screw, Cap, HSH, M10 x 55

4шт.

3

86539666

KIT

Valve, SCR, Includes: Ref. 4 & 5

2шт.

4

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 7

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

86502278

GASKET

End Cap

1шт.

9

87054550

FLOAT VALVE

Plate, CCW

1шт.

10

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

11

87012454

HYD PUMP REPAIR KIT

Block, Cylinder, Includes: Ref. 12 thru 22

1шт.

12

D38748

SNAP RING,#162, 1.701, Int, Spiral

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer, Hold Down

1шт.

18

86539902

PIN,2.38mm OD x 29.46mm L

Slipper

4шт.

19

86539901

THRUST WASHER

1шт.

20

86539900

GUIDE

Slipper, Retaining

1шт.

21

86539899

RETAINER

Slipper

1шт.

22

NSS

NOT SOLD SEPARAT

Piston

1шт.

23

86502277

THRUST PLATE

1шт.

24

87012455

SWASH PLATE

1шт.

25

86617706

HYDRAULIC PUMP,6 CC

1шт.

Used w/pump 87038912

1шт.

25

86617706R

REMAN-HYD PUMP

Used w/pump 87038912

1шт.

25

86617706C

CORE-HYDRAULIC PUMP

Return Number

1шт.

25

86606917

HYDRAULIC PUMP,10.8 CC

Gear

1шт.

Used w/pump 87038911

1шт.

25

86606917R

REMAN-HYD PUMP

10.8 CC Gear. Used w/pump 87038911

1шт.

25

86606917C

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

87056729

SEAL KIT

1шт.

Used w/pump 87038912

1шт.

26

86502309

SEAL KIT

Gear Pump, Inc: Ref. 30, and Internal Seals for Ref. 25

1шт.

Used w/pump 87038911

1шт.

27

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

2шт.

28

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

29

86502304

COUPLING

1шт.

30

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

31

86502303

ADAPTER

Flange

1шт.

32

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

33

100-21281

SNAP RING,2.812", Int, #281

1шт.

34

100-11137

SNAP RING,#137, Ext

2шт.

35

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

36

86537274

SHAFT

1шт.

37

163410

PLUG,1-1/16" - 12 ORB

Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

39

241590A1

BEARING ASSY

2шт.

40

86539927

O-RING,2.612" ID x 2.81" OD x 0.099"

2.612" ID x .099" Thk

2шт.

41

86502299

COVER

Trunnion

1шт.

42

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

43

87012457

SEAL,23.7mm ID x 38.27mm OD x 6.4mm Thk

1шт.

44

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

45

NSS

NOT SOLD SEPARAT

Washer

2шт.

46

86537275

HOUSING

1шт.

47

87012464

SPECIAL PIN,9.499mm OD x 12.7mm OAL

2шт.

48

NSS

NOT SOLD SEPARAT

Screw, Cap, HSH, M10 x 65

4шт.

49

F62094

NEEDLE BEARING

Needle

1шт.

50

86512512

PLUG,7/8" - 14 ORB

Includes: Ref. 51

1шт.

51

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

52

87012456

COVER

Trunnion

1шт.

53

86537273

CAP

End

1шт.

54

86594279

HYD PUMP REPAIR KIT

Overhaul, Seal

1шт.

For Complete Listing of Kit, see Fig. 03.05(5)

1шт.
