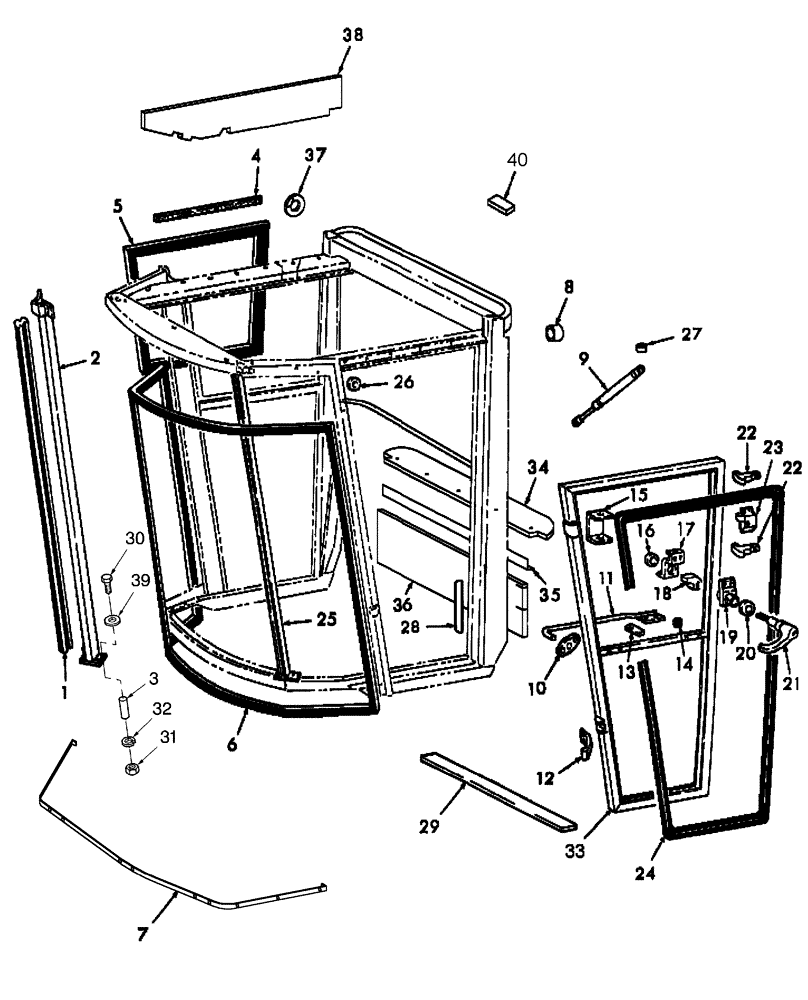

Запчасти Case IH WDX901 (008) - DOOR & WINDOW SEALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627748

SEAL, GLASS

Corner Window

2шт.

2

86501101

SUPPORT

RH

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

495-21038

WASHER,5/16"

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

34025

SPACER

4шт.

4

PL

PROCURE LOCALLY

Seal

1шт.

5

9806697

SEAL

Window, RH

1шт.

6

631227

GASKET

Front

1шт.

7

86628861

STRIP

Front

1шт.

8

86001112

SPACER

Glass Mounting

1шт.

9

631230

SPRING

Gas

1шт.

9

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

9

495-21038

WASHER,5/16"

2шт.

9

280736

NUT,5/16"-18, GC

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

646836

SUPPORT

1шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

495-11028

WASHER,1/4", SAE

2шт.

10

492-11025

LOCK WASHER,1/4"

2шт.

11

631127

ROD

1шт.

11

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1шт.

11

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1шт.

12

682808

HINGE

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

12

495-21044

WASHER,3/8"

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

631129

PLATE

1шт.

13

495-11028

WASHER,1/4", SAE

1шт.

13

492-11025

LOCK WASHER,1/4"

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

14

86539686

SPRING

1шт.

15

631118

CHANNEL

1шт.

16

262279

WASHER,10.32mm ID x 18.26mm OD x 0.61mm Thk

3/8"

1шт.

17

631119

SUPPORT

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

495-11028

WASHER,1/4", SAE

4шт.

17

492-11025

LOCK WASHER,1/4"

4шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

631121

LATCH

1шт.

19

682511

SUPPORT

1шт.

20

86528128

GROMMET

1" I.D. x 1-3/4" OD

1шт.

21

643758

HANDLE

Locking, with Keys

1шт.

21

642628

SET OF 2 KEYS

Set, (2) Stamped w/PK556

1шт.

21

432-612

COTTER PIN,3/32" x 3/4"

1шт.

22

632278

PLUG

2шт.

23

627747

LOCK

1шт.

23

88608

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

4шт.

24

643931

DOOR SEAL

Glass

1шт.

25

86501100

SUPPORT

LH

1шт.

25

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

25

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

495-21038

WASHER,5/16"

2шт.

25

492-11031

LOCK WASHER,5/16"

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

26

677603

GROMMET

2-5/8" OD

1шт.

27

622263

SPACER

.312" Lg.

1шт.

28

134707

SEAL

Door, 180" Long, Serial Range: Cut-Fit

1шт.

29

PL

PROCURE LOCALLY

Strip, Foam, 1/8" x 1" x 123", Serial Range: Cut-Fit

1шт.

30

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

31

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

32

492-11031

LOCK WASHER,5/16"

4шт.

33

643753

DOOR

1шт.

33

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

33

232-4146

NUT,3/8"-16, GC

2шт.

34

86619229

FOAM

Deck Trim

1шт.

35

86555936

ANGLE

1шт.

35

86556720

FASTENER

5шт.

36

86619231

FOAM

Liner, Rear

1шт.

37

9847072

RING

1шт.

38

86619227

FOAM

Trim, RH Beam

1шт.

38

86619228

FOAM

Trim, LH Beam

1шт.

39

495-21038

WASHER,5/16"

4шт.

40

86001478

INSULATOR BLOCK

Glass Setting

3шт.
