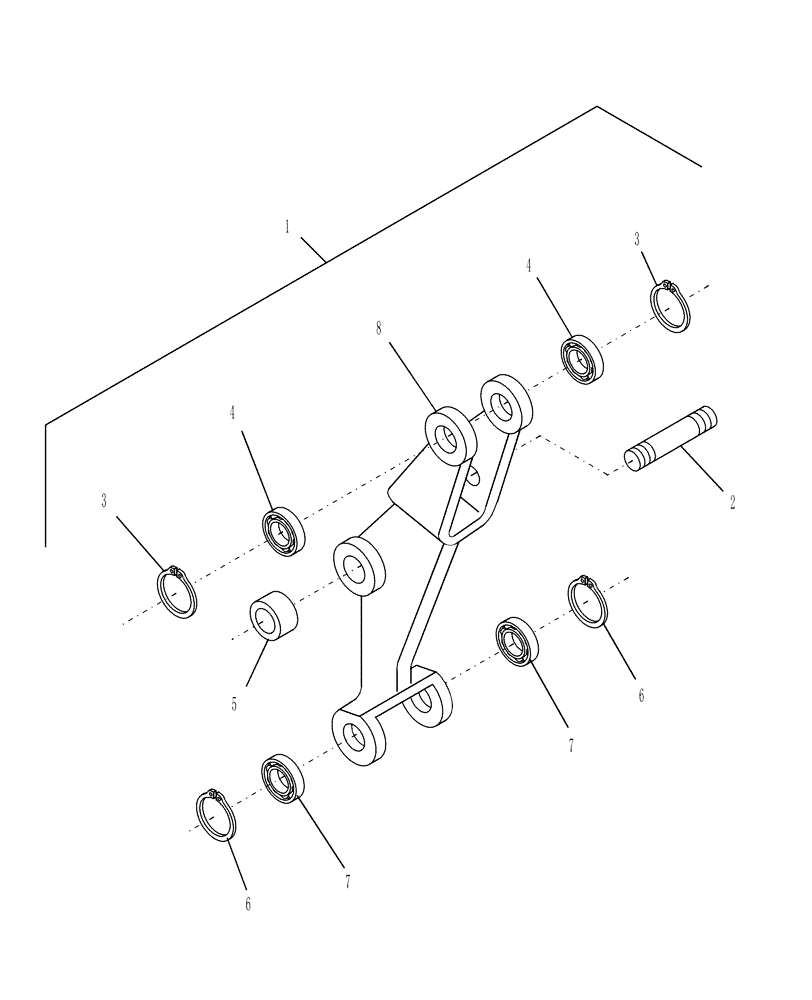

Запчасти Case IH WDX901 (046) - SERVO ARM (88) - ACCESSORIES

1

86636427

ARM

Includes: 2 thru 8

1шт.

2

86506700

STUD

3/8"x 2-1/8"

1шт.

3

100-21118

SNAP RING,1.188", Int, #118

2шт.

4

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

2шт.

5

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

1шт.

6

800-2132

SNAP RING,M32, Int

2шт.

7

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

2шт.

8

NSS

NOT SOLD SEPARAT

Arm

1шт.
