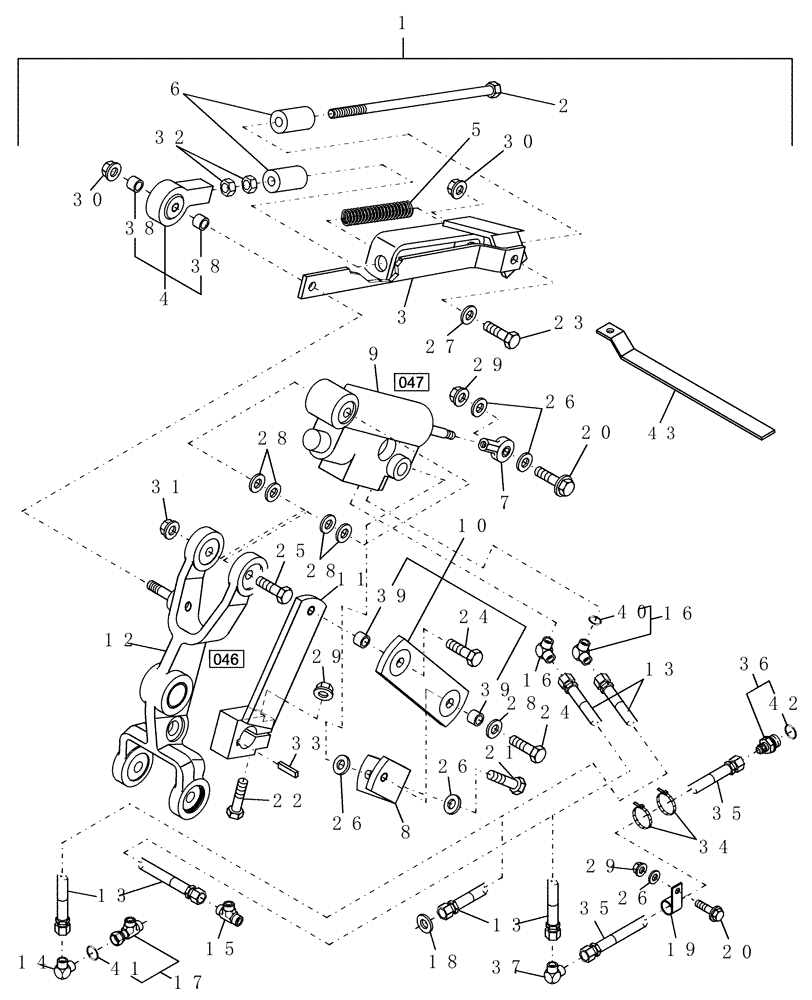

Запчасти Case IH WDX901 (045A) - GROUND SPEED SERVO KIT (88) - ACCESSORIES

1

86619352

ATTACHMENT

Kit, Ground Speed Servo

1шт.

Includes: Refs. 4 & 5

1шт.

2

857207

ROD

1шт.

3

857205

SUPPORT

1шт.

4

767801

SUPPORT

1шт.

5

855789

SPRING

1шт.

6

86516886

SPACER

2шт.

7

221665

EYE,5/16" - 24

1шт.

8

86506701

ANGLE

1шт.

9

86510015

HYDRAULIC CYLINDER,Double Acting, 9.45mm Rod, mm Stroke

Servo Control, Refer to Fig. 047

1шт.

10

86506697

CONNECTING LINK

1шт.

11

86506702

ARM

1шт.

12

86636427

ARM

Refer to Fig. 046

1шт.

13

86513233

HOSE,0.25" ID x 34.00", SAE 100R1

2шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

Part Of Kit, Not Used On WDX901

1шт.

15

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

Part Of Kit, Not Used On WDX901

1шт.

16

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

2шт.

17

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

Part Of Kit, Not Used On WDX901

1шт.

18

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

5шт.

19

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

20

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

21

414-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

25

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

26

495-21038

WASHER,5/16"

5шт.

27

495-21044

WASHER,3/8"

1шт.

28

9790712

WASHER,10.06mm ID x 12.62mm OD x 1.52mm Thk

Hardened, 3/8"

6шт.

29

280736

NUT,5/16"-18, GC

3шт.

30

232-4146

NUT,3/8"-16, GC

2шт.

31

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

32

425-156

JAM NUT,Jam, 3/8"-24, G5

3шт.

33

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

1шт.

34

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

35

9821457

HYDRAULIC HOSE,.375” ID x 84” L

1шт.

Order this Connector if Unit does Not have Header Tilt Kit.

1шт.

36

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

1шт.

Order this Connector if Unit does Not have Header Tilt Kit.

1шт.

37

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

1шт.

Order this Connector if Unit does Not have Header Tilt Kit.

1шт.

38

763852

DRIVE BUSHING,10.16mm ID x 28.6mm OD x 23.11mm L

1шт.

39

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

2шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

86548293

TOOL

Gauge, Neutral

1шт.
