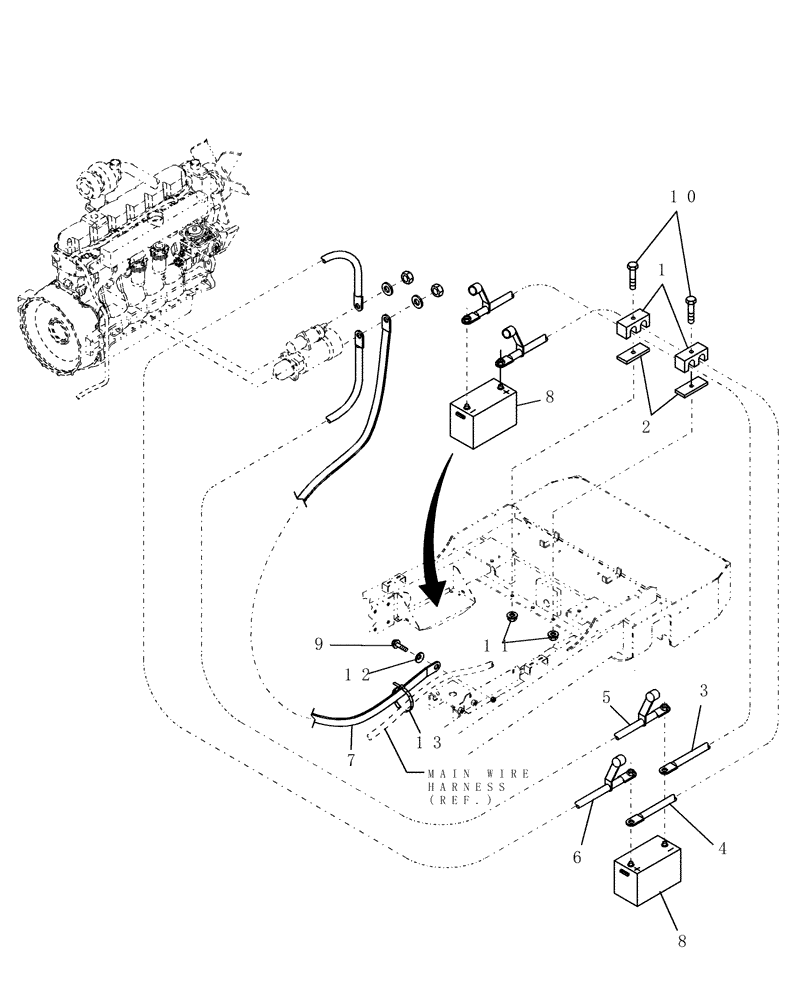

Запчасти Case IH WDX901 (036) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

86643219

CLAMP,Tube, 3/4"

Tube, 3/4"

2шт.

WDX1701- Dual Battery Use

1шт.

2

621326

PAD

2шт.

WDX1701- Dual Battery Use

1шт.

3

86533717

ELECTRIC CABLE

1шт.

WDX1701- Dual Battery Use

1шт.

4

86533716

ELECTRIC CABLE

POSITIVE

1шт.

WDX1701- Dual Battery Use

1шт.

5

86533713

ELECTRIC CABLE

1шт.

All Models

1шт.

6

86533714

ELECTRIC CABLE

POSITIVE

1шт.

WDX901& WDX1101

1шт.

6

86533715

ELECTRIC CABLE

POSITIVE

1шт.

WDX1701- Dual Battery Use

1шт.

7

799681

GROUND STRAP

1шт.

8

BMF31FSW

DRY BATTERY

1шт.

(1) WDX901 & WDX1101; (2) WDX1701

1шт.

9

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

WDX1701- Dual Battery Use

1шт.

11

280129

NUT,1/4"-20

2шт.

WDX1701- Dual Battery Use

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

13

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.
